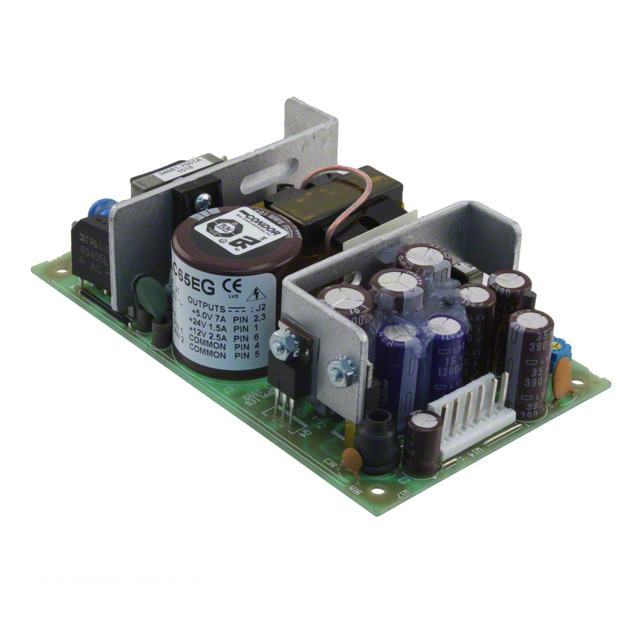

GLC65EG
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 5V 24V 12V 65W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GLC65EG
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 5V 24V 12V 65W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GLC65EG |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 7 A |
| Current - Output 2 | 1.5 A |
| Current - Output 3 | 2.5 A |
| Efficiency | 80 % |
| Features | Remote Sense, Universal Input, Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 1.25 " |
| Size / Dimension [z] | 31.8 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 24 V |
| Voltage - Output 3 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 118.39 | |
Description
General part information
GLC65 Series
Open Frame AC DC Converters 3 Output 5V 24V 12V 90 ~ 264 VAC Input
