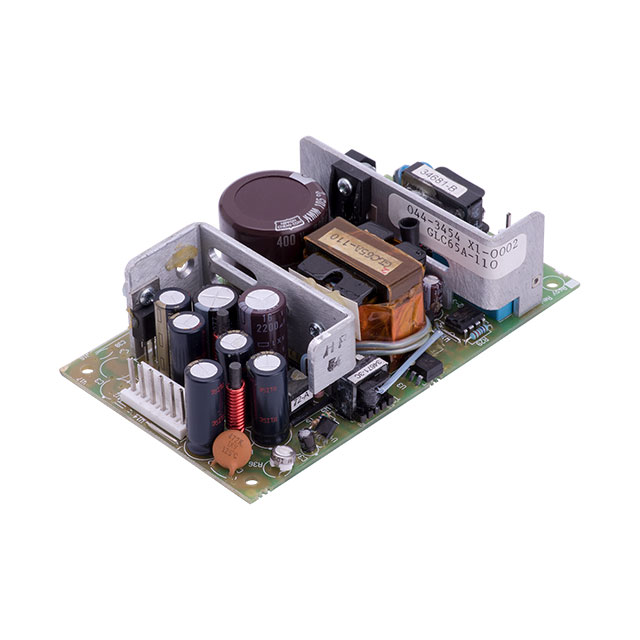

GLC65BG

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5.1V +/-15V 65W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5.1V +/-15V 65W

Technical Specifications

Parameters and characteristics for this part

Specification	GLC65BG

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	7 A
Current - Output 3	2 A
Efficiency	80 %
Features	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	3
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.25 "
Size / Dimension [z]	31.8 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	5.1 V
Voltage - Output 2	15 V
Voltage - Output 3	-15 V

Part	Approval Agency	Applications	Features	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 3	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Type	Current - Output 2	Efficiency	Current - Output 3	Voltage - Output 1	Current - Output 1	Minimum Load Required	Mounting Type	Number of Outputs	Voltage - Output 2
SL POWER / Advanced Energy GLC65EG	CE cURus TUV	ITE (Commercial)	Adjustable Output Remote Sense Universal Input	90 VAC	264 VAC	12 V	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	Open Frame	1.5 A	80 %	2.5 A	5 V	7 A		Chassis Mount	3	24 V
SL POWER / Advanced Energy GLC65BG	CE cURus TUV	ITE (Commercial)	Adjustable Output Remote Sense Universal Input	90 VAC	264 VAC	-15 V	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	Open Frame		80 %	2 A	5.1 V	7 A		Chassis Mount	3	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 3 Output 5.1V 15V -15V 90 ~ 264 VAC Input
