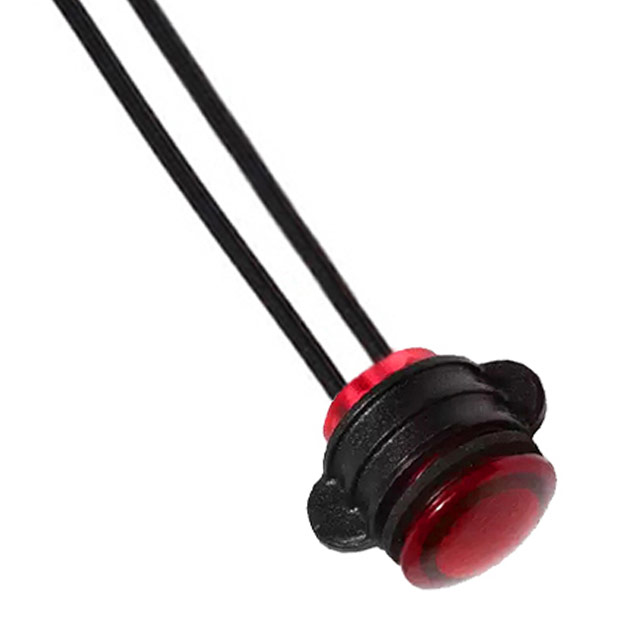

CNX714C200120W

Active

Visual Communications Company - VCC

LED PANEL INDICATOR RD 120V IP67

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

LED PANEL INDICATOR RD 120V IP67

Technical Specifications

Parameters and characteristics for this part

Part	Lens Size [diameter]	Lens Style	Millicandela Rating [Min]	Millicandela Rating [Max]	Panel Cutout Dimensions	Panel Cutout Dimensions	Panel Cutout Shape	Lamp Color	Voltage [Min]	Voltage [Max]	Ingress Protection	Type	Millicandela Rating	Current	Lens Color	Ratings	Voltage	Lens Transparency
Visual Communications Company - VCC CNX714C900FVW	17 mm	Round with Domed Top	1300 mcd	1700 mcd	13.97 mm	0.55 in	Round	White	5 V	28 V	IP67 NEMA 6P	LED
Visual Communications Company - VCC CNX714C900120W	17 mm	Round with Domed Top			14 mm	0.55 in	Round	White			IP67	LED	644 mcd	8 mA	White	AC	120 V
Visual Communications Company - VCC CNX714C200FVW	17 mm	Round with Domed Top	1300 mcd	1900 mcd	13.97 mm	0.55 in	Round	Red	5 V	28 V	IP67 NEMA 6P	LED
Visual Communications Company - VCC CNX714C200120W	17 mm	Round with Domed Top			14 mm	0.55 in	Round	Red			IP67	LED	550 mcd	8 mA	Red	AC	120 V
Visual Communications Company - VCC CNX714C401FVW		Round with Domed Top			14.22 mm	0.56 "	Round	Yellow	5 V	28 V	IP67 NEMA 6P	LED	785 mcd	30 mA	Yellow	DC		Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red 120V 8mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
