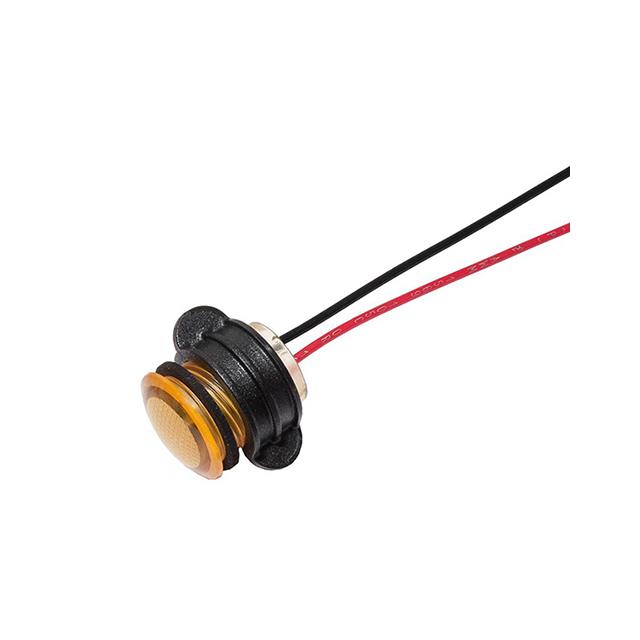

CNX714C401FVW
ActiveVisual Communications Company - VCC
LED PMI FLEXVOLT 14MM YELLOW LD
Deep-Dive with AI
Search across all available documentation for this part.
CNX714C401FVW
ActiveVisual Communications Company - VCC
LED PMI FLEXVOLT 14MM YELLOW LD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CNX714C401FVW |
|---|---|
| Current | 30 mA |
| Ingress Protection | IP67, NEMA 6P |
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 785 mcd |
| Panel Cutout Dimensions | 14.22 mm |
| Panel Cutout Dimensions | 0.56 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Type | LED |
| Voltage [Max] | 28 V |
| Voltage [Min] | 5 V |
CNX714 Series
| Part | Lens Size [diameter] | Lens Style | Millicandela Rating [Min] | Millicandela Rating [Max] | Panel Cutout Dimensions | Panel Cutout Dimensions | Panel Cutout Shape | Lamp Color | Voltage [Min] | Voltage [Max] | Ingress Protection | Type | Millicandela Rating | Current | Lens Color | Ratings | Voltage | Lens Transparency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Visual Communications Company - VCC | 17 mm | Round with Domed Top | 1300 mcd | 1700 mcd | 13.97 mm | 0.55 in | Round | White | 5 V | 28 V | IP67 NEMA 6P | LED | ||||||
Visual Communications Company - VCC | 17 mm | Round with Domed Top | 14 mm | 0.55 in | Round | White | IP67 | LED | 644 mcd | 8 mA | White | AC | 120 V | |||||
Visual Communications Company - VCC | 17 mm | Round with Domed Top | 1300 mcd | 1900 mcd | 13.97 mm | 0.55 in | Round | Red | 5 V | 28 V | IP67 NEMA 6P | LED | ||||||
Visual Communications Company - VCC | 17 mm | Round with Domed Top | 14 mm | 0.55 in | Round | Red | IP67 | LED | 550 mcd | 8 mA | Red | AC | 120 V | |||||
Visual Communications Company - VCC | Round with Domed Top | 14.22 mm | 0.56 " | Round | Yellow | 5 V | 28 V | IP67 NEMA 6P | LED | 785 mcd | 30 mA | Yellow | DC | Clear |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 11.34 | |
Description
General part information
CNX714 Series
LED Panel Indicator Yellow Clear 5V ~ 28V 30mA Wire Leads - 6" (152.40mm)
Documents
Technical documentation and resources
No documents available
