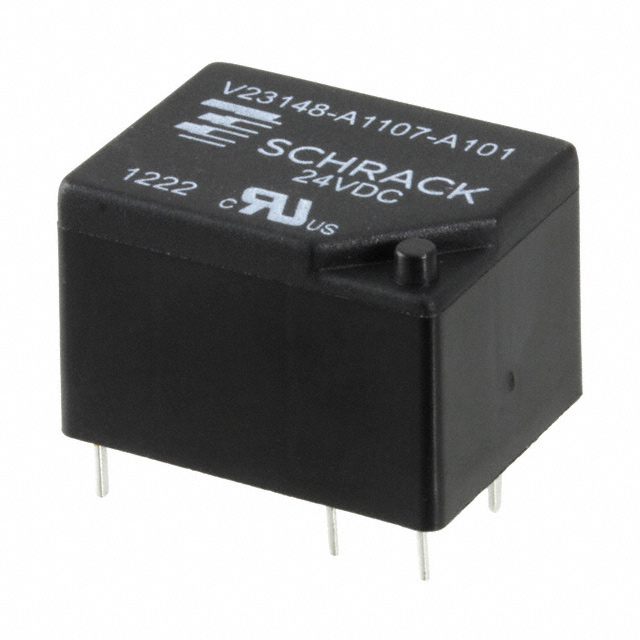

RELAY GEN PURPOSE SPDT 5A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

V23148A1107A101

Unknown

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 5A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V23148A1107A101

Coil Current	16.7 mA
Coil Resistance	1.78 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	5 A
Load - Max Switching	2000 VA
Mounting Type	Through Hole
Must Operate Voltage	17.5 VDC
Must Release Voltage	2.4 VDC
Operate Time	7 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	3 ms
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

V23148 Series

Part	Contact Rating (Current)	Coil Voltage	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Must Release Voltage	Coil Resistance	Must Operate Voltage	Release Time	Load - Max Switching	Contact Form	Termination Style	Coil Current	Contact Material	Switching Voltage [Max]	Relay Type	Operate Time
TE Connectivity Potter & Brumfield Relays 1393203-1	7 A	5 VDC	Through Hole	70 °C	-25 °C	Non Latching	0.5 VDC	56 Ohms	3.5 VDC	3 ms	2800 VA	SPDT (1 Form C)	PC Pin	89.3 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms
TE Connectivity Potter & Brumfield Relays 1393203-4	7 A		Through Hole	70 °C	-25 °C	Non Latching	0.6 VDC	80 Ohms	4.2 VDC	3 ms	2800 VA	SPDT (1 Form C)	PC Pin	75 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms
TE Connectivity Potter & Brumfield Relays V23148A 107B101	5 A	24 VDC	Through Hole	70 °C	-25 °C	Non Latching	2.4 VDC	1.78 kOhms	17.5 VDC	3 ms	2000 VA	SPST-NO (1 Form A)	PC Pin	16.7 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	7 ms
TE Connectivity Potter & Brumfield Relays V23148A1107A101	5 A	24 VDC	Through Hole	70 °C	-25 °C	Non Latching	2.4 VDC	1.78 kOhms	17.5 VDC	3 ms	2000 VA	SPDT (1 Form C)	PC Pin	16.7 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	7 ms
TE Connectivity Potter & Brumfield Relays 1-1393203-3	7 A	24 VDC	Through Hole	70 °C	-25 °C	Non Latching	2.4 VDC	1280 Ohms	16.8 VDC	3 ms	2800 VA	SPST-NC (1 Form B)	PC Pin	18.8 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms
TE Connectivity Potter & Brumfield Relays 1-1393204-5	7 A		Through Hole	70 °C	-25 °C	Latching Single Coil				3 ms	2800 VA	SPDT (1 Form C)	PC Pin		Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms
TE Connectivity Potter & Brumfield Relays V23148A 105A101	5 A	12 VDC	Through Hole	70 °C	-25 °C	Non Latching	1.2 VDC	440 Ohms	8.8 VDC	3 ms	2000 VA	SPDT (1 Form C)	PC Pin	16.7 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	7 ms
TE Connectivity Potter & Brumfield Relays V23148-A0007-A101	7 A	24 VDC	Through Hole	70 °C	-25 °C	Non Latching	2.4 VDC	1280 Ohms	16.8 VDC	3 ms	2800 VA	SPDT (1 Form C)	PC Pin	16.7 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms
TE Connectivity Potter & Brumfield Relays 1-1393203-4	7 A	48 VDC	Through Hole	70 °C	-25 °C	Non Latching	4.8 VDC	3.8 kOhms	33.6 VDC	3 ms	2800 VA	SPDT (1 Form C)	PC Pin	12.6 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms
TE Connectivity Potter & Brumfield Relays V23148B1007A101	7 A	24 VDC	Through Hole	70 °C	-25 °C	Latching Single Coil		475 Ohms	18.7 VDC	3 ms	2800 VA	SPDT (1 Form C)	PC Pin	16.7 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 6.66

Description

General part information

V23148 Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
