1393203-4

Active

TE Connectivity Potter & Brumfield Relays

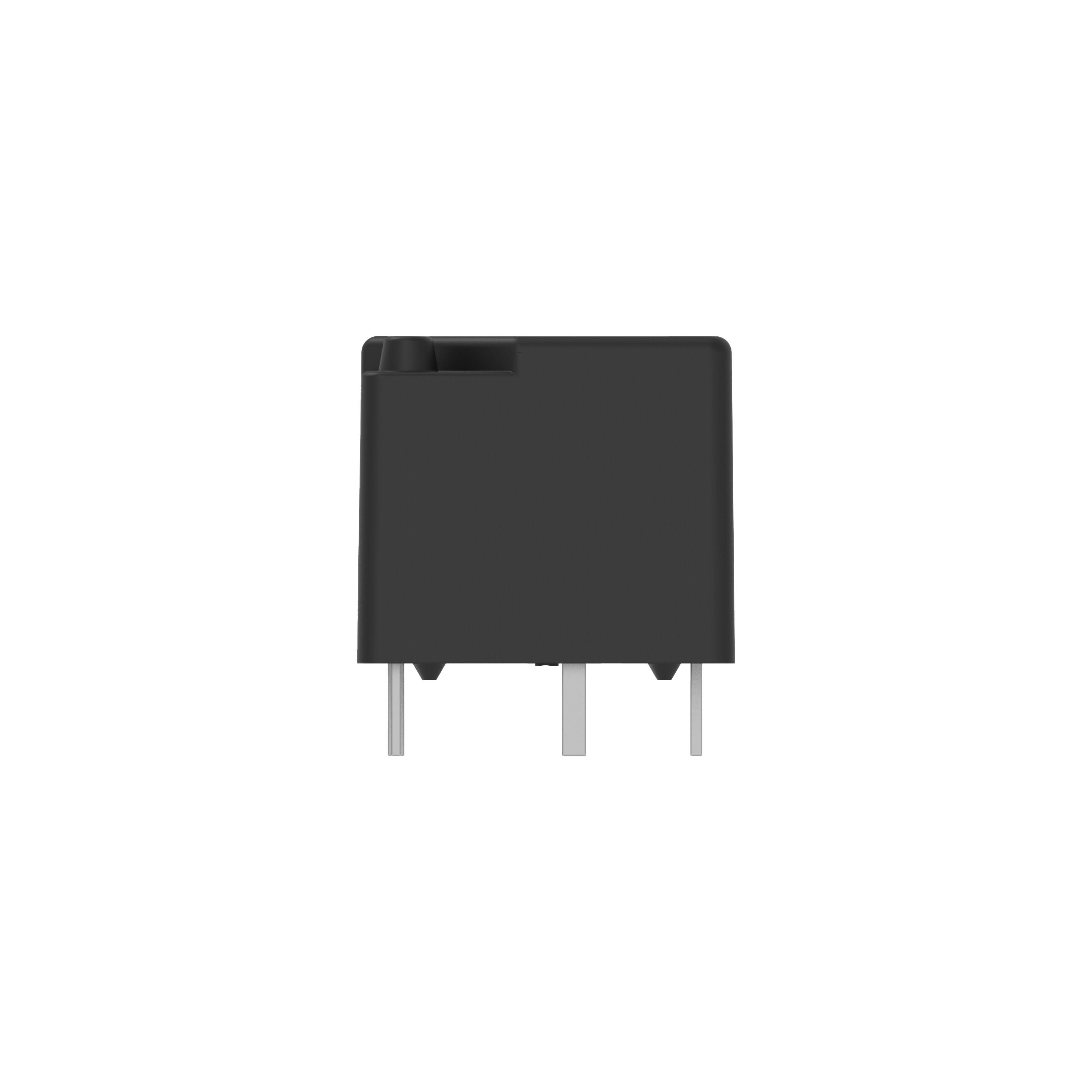

RELAY GEN PURPOSE SPDT 7A 6V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1393203-4

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 7A 6V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1393203-4

Coil Current	75 mA
Coil Resistance	80 Ohms
Coil Type	Non Latching
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	7 A
Load - Max Switching	2800 VA
Mounting Type	Through Hole
Must Operate Voltage	4.2 VDC
Must Release Voltage	0.6 VDC
Operate Time	5 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	3 ms
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

V23148 Series

Part	Contact Rating (Current)	Coil Voltage	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Must Release Voltage	Coil Resistance	Must Operate Voltage	Release Time	Load - Max Switching	Contact Form	Termination Style	Coil Current	Contact Material	Switching Voltage [Max]	Relay Type	Operate Time
TE Connectivity Potter & Brumfield Relays 1393203-1	7 A	5 VDC	Through Hole	70 °C	-25 °C	Non Latching	0.5 VDC	56 Ohms	3.5 VDC	3 ms	2800 VA	SPDT (1 Form C)	PC Pin	89.3 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms
TE Connectivity Potter & Brumfield Relays 1393203-4	7 A		Through Hole	70 °C	-25 °C	Non Latching	0.6 VDC	80 Ohms	4.2 VDC	3 ms	2800 VA	SPDT (1 Form C)	PC Pin	75 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms
TE Connectivity Potter & Brumfield Relays V23148A 107B101	5 A	24 VDC	Through Hole	70 °C	-25 °C	Non Latching	2.4 VDC	1.78 kOhms	17.5 VDC	3 ms	2000 VA	SPST-NO (1 Form A)	PC Pin	16.7 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	7 ms
TE Connectivity Potter & Brumfield Relays V23148A1107A101	5 A	24 VDC	Through Hole	70 °C	-25 °C	Non Latching	2.4 VDC	1.78 kOhms	17.5 VDC	3 ms	2000 VA	SPDT (1 Form C)	PC Pin	16.7 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	7 ms
TE Connectivity Potter & Brumfield Relays 1-1393203-3	7 A	24 VDC	Through Hole	70 °C	-25 °C	Non Latching	2.4 VDC	1280 Ohms	16.8 VDC	3 ms	2800 VA	SPST-NC (1 Form B)	PC Pin	18.8 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms
TE Connectivity Potter & Brumfield Relays 1-1393204-5	7 A		Through Hole	70 °C	-25 °C	Latching Single Coil				3 ms	2800 VA	SPDT (1 Form C)	PC Pin		Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms
TE Connectivity Potter & Brumfield Relays V23148A 105A101	5 A	12 VDC	Through Hole	70 °C	-25 °C	Non Latching	1.2 VDC	440 Ohms	8.8 VDC	3 ms	2000 VA	SPDT (1 Form C)	PC Pin	16.7 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	7 ms
TE Connectivity Potter & Brumfield Relays V23148-A0007-A101	7 A	24 VDC	Through Hole	70 °C	-25 °C	Non Latching	2.4 VDC	1280 Ohms	16.8 VDC	3 ms	2800 VA	SPDT (1 Form C)	PC Pin	16.7 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms
TE Connectivity Potter & Brumfield Relays 1-1393203-4	7 A	48 VDC	Through Hole	70 °C	-25 °C	Non Latching	4.8 VDC	3.8 kOhms	33.6 VDC	3 ms	2800 VA	SPDT (1 Form C)	PC Pin	12.6 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms
TE Connectivity Potter & Brumfield Relays V23148B1007A101	7 A	24 VDC	Through Hole	70 °C	-25 °C	Latching Single Coil		475 Ohms	18.7 VDC	3 ms	2800 VA	SPDT (1 Form C)	PC Pin	16.7 mA	Silver Nickel (AgNi)	400 VAC	General Purpose	5 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.95
		10	$ 11.20
		25	$ 9.96
		50	$ 9.46
		100	$ 8.96
		250	$ 7.97
		500	$ 7.47
		1000	$ 6.97

Description

General part information

V23148 Series

General Purpose Relay SPDT (1 Form C) 6VDC Coil Through Hole
