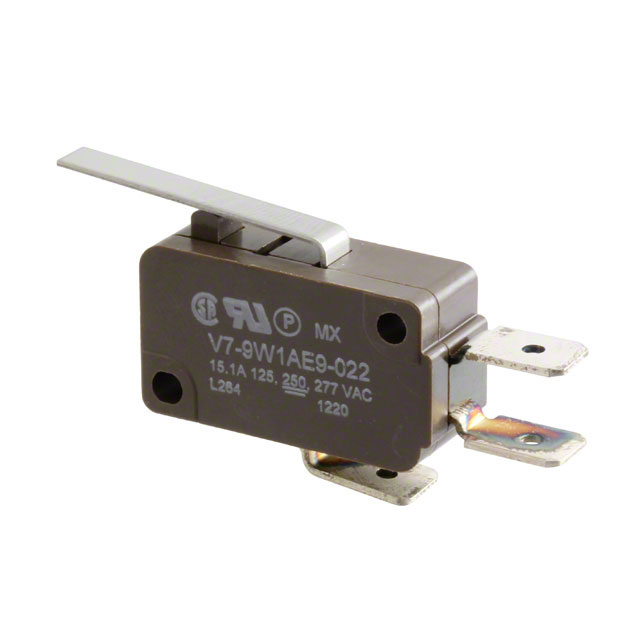

V7-9W1AE9-022

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 15A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Electrical Life	Switch Function	Differential Travel	Differential Travel	Pretravel	Pretravel	Termination Style	Operating Position	Operating Position	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Release Force	Current Rating (Amps)	Circuit	Overtravel	Overtravel	Operating Force	Actuator Type	Voltage Rating - AC
Honeywell Sensing and Productivity Solutions V7-9W1AE9-022	100000 Cycles	On-Mom	0.028 in	0.7 mm	0.12 in	3 mm	Quick Connect - 0.250" (6.3mm)	15.3 mm	0.602 "	Chassis Mount	-40 °C	177 °C	10000000 Cycles	8 gf	15 A	SPDT	1.8 mm	0.07 in	162 gf	Lever Straight	125 V
Honeywell Sensing and Productivity Solutions V7-9W1AE9-048	100000 Cycles	On-Mom	0.055 in	1.4 mm	0.25 in	6.35 mm	Quick Connect - 0.250" (6.3mm)	15.3 mm	0.602 "	Chassis Mount	-40 °C	177 °C	10000000 Cycles	4 gf	15 A	SPDT	3.2 mm	0.125 in	90 gf	Lever Straight	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 6.70

General part information

Switch SPDT Chassis Mount
