V7-9W1AE9-048
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
V7-9W1AE9-048
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V7-9W1AE9-048 |
|---|---|

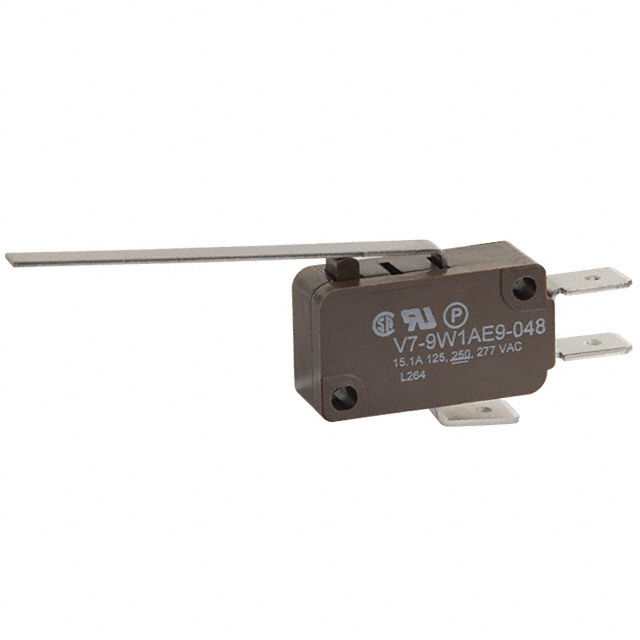

| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 15 A |
| Differential Travel | 1.4 mm |
| Differential Travel | 0.055 in |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 90 gf |
| Operating Position | 15.3 mm |
| Operating Position | 0.602 " |
| Operating Temperature [Max] | 177 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.125 in |
| Overtravel | 3.2 mm |
| Pretravel | 6.35 mm |
| Pretravel | 0.25 in |
| Release Force | 4 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.80 | |
| 10 | $ 8.95 | |||
| 25 | $ 8.31 | |||
| 50 | $ 7.85 | |||
| 100 | $ 7.42 | |||
| 250 | $ 6.88 | |||
| 500 | $ 6.50 | |||
| 1000 | $ 6.34 | |||
Description
General part information
V7-9 Series
Switch SPDT Chassis Mount
Documents
Technical documentation and resources
