GW PUSRA1.PM-N1N3-XX54-1-700-R18

Obsolete

ams-OSRAM USA INC.

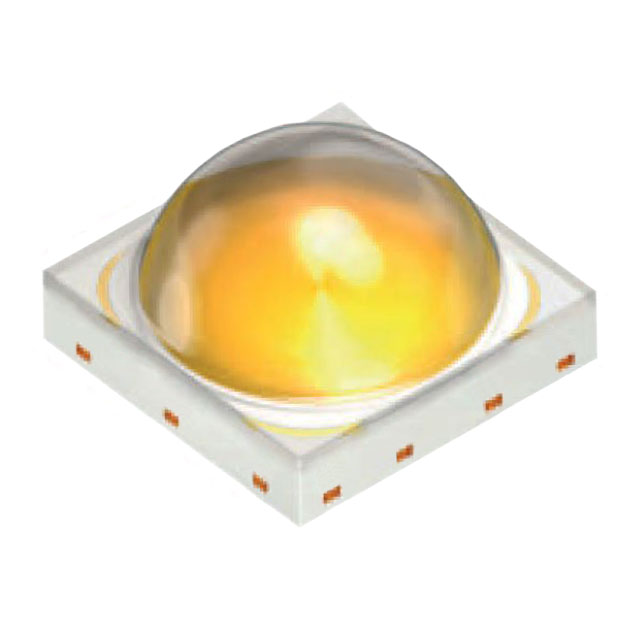

LED OSCONIQ NEUT WHITE 4500K SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GW PUSRA1.PM-N1N3-XX54-1-700-R18

Obsolete

ams-OSRAM USA INC.

LED OSCONIQ NEUT WHITE 4500K SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GW PUSRA1.PM-N1N3-XX54-1-700-R18

Color	Neutral, White
CRI (Color Rendering Index)	70
Current - Max [Max]	1.5 A
Flux @ 85°C, Current - Test	295 lm
Flux @ 85°C, Current - Test [Max]	310 lm
Flux @ 85°C, Current - Test [Min]	280 lm
Height - Seated (Max) [Max] [z]	0.089 in
Height - Seated (Max) [Max] [z]	2.25 mm
Lumens/Watt @ Current - Test	151 lm/W
Mounting Type	Surface Mount
Package / Case	3838 Metric
Package / Case	1515
Size / Dimension [x]	3.7 mm
Size / Dimension [x]	0.146 in
Size / Dimension [y]	0.146 "
Size / Dimension [y]	3.7 mm
Supplier Device Package	SMD
Thermal Resistance of Package	2.1 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.8 V

GW PUSRA1.PM Series

Part	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Viewing Angle	Supplier Device Package	Flux @ 85°C, Current - Test	Package / Case	Package / Case	Color	CRI (Color Rendering Index)	Thermal Resistance of Package	Mounting Type	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]
ams-OSRAM USA INC. GW PUSRA1.PM-N2N4-A636-1-700-R18	156 lm/W	0.089 in	2.25 mm	1.5 A	2.8 V	3.7 mm	0.146 "	3.7 mm	0.146 in	3500 K	120 °	3-SMD	305	3838 Metric	1515	Warm White	70	2.1 °C/W	Surface Mount
ams-OSRAM USA INC. GW PUSRA1.PM-N3N5-XX57-1-700-R18-XX	161 lm/W	0.089 in	2.25 mm	1.5 A	2.8 V	3.7 mm	0.146 "	3.7 mm	0.146 in		120 °	3-SMD	315 lm	3838 Metric	1515	Warm White	70	2.1 °C/W	Surface Mount	300 lm	330 lm
ams-OSRAM USA INC. GW PUSRA1.PM-N4N6-XX53-1-700-R18	166 lm/W	0.089 in	2.25 mm	1.5 A	2.8 V	3.7 mm	0.146 "	3.7 mm	0.146 in	5000 K	120 °	3-SMD	325 lm	3838 Metric	1515	Cool White	70	2.1 °C/W	Surface Mount
ams-OSRAM USA INC. GW PUSRA1.PM-N2N4-A434-1-700-R18	156 lm/W	0.089 in	2.25 mm	1.5 A	2.8 V	3.7 mm	0.146 "	3.7 mm	0.146 in		120 °	SMD	305	3838 Metric	1515	Neutral White	70	2.1 °C/W	Surface Mount
ams-OSRAM USA INC. GW PUSRA1.PM-M9N1-XX57-1-700-R18	140 lm/W	0.089 in	2.25 mm	1.5 A	2.8 V	3.7 mm	0.146 "	3.7 mm	0.146 in		120 °	SMD	275 lm 290 lm	3838 Metric	1515	Warm White	70	2.1 °C/W	Surface Mount	260 lm
ams-OSRAM USA INC. GW PUSRA1.PM-N2N4-A131-1-700-R18	156 lm/W	0.089 in	2.25 mm	1.5 A	2.8 V	3.7 mm	0.146 "	3.7 mm	0.146 in	6500 K	120 °	3-SMD	305	3838 Metric	1515	Cool White	70	2.1 °C/W	Surface Mount
ams-OSRAM USA INC. GW PUSRA1.PM-MFN2-A737-1-700-R18		0.089 in	2.25 mm	1.5 A	2.8 V	3.7 mm	0.146 "	3.7 mm	0.146 in		120 °	3-SMD	285 lm	3838 Metric	1515	Warm White	70	2.1 °C/W	Surface Mount
ams-OSRAM USA INC. GW PUSRA1.PM-N1N3-XX54-1-700-R18	151 lm/W	0.089 in	2.25 mm	1.5 A	2.8 V	3.7 mm	0.146 "	3.7 mm	0.146 in		120 °	SMD	295 lm	3838 Metric	1515	Neutral White	70	2.1 °C/W	Surface Mount	280 lm	310 lm
ams-OSRAM USA INC. GW PUSRA1.PM-N4N6-XX55-1-700-R18-XX	166 lm/W	0.089 in	2.25 mm	1.5 A	2.8 V	3.7 mm	0.146 "	3.7 mm	0.146 in	4000 K	120 °	3-SMD	325 lm	3838 Metric	1515	Neutral White	70	2.1 °C/W	Surface Mount
ams-OSRAM USA INC. GW PUSRA1.PM-N1N3-A737-1-700-R18	151 lm/W	0.089 in	2.25 mm	1.5 A	2.8 V	3.7 mm	0.146 "	3.7 mm	0.146 in		120 °	3-SMD	295 lm	3838 Metric	1515	Warm White	70	2.1 °C/W	Surface Mount	280 lm	310 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

GW PUSRA1.PM Series

LED Lighting OSCONIQ® P 3737 White, Neutral 4500K 2.8V 700mA 120° 1515 (3838 Metric)
