DF7-2P-7.92DSA

Obsolete

Hirose Electric USA, Inc.

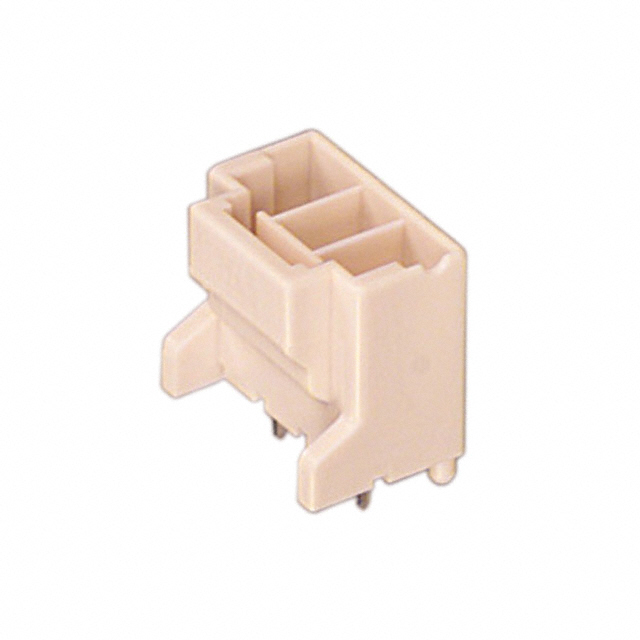

CONN HEADER VERT 3POS 7.92MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF7-2P-7.92DSA

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 3POS 7.92MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF7-2P-7.92DSA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7 mm
Contact Length - Mating	0.276 in
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Beige
Insulation Height	12.9 mm
Insulation Height	0.508 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mated Stacking Heights	21.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	2
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.312 in
Pitch - Mating	7.92 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

DF7 Series

Part	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Shape	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Mounting Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Features	Contact Finish - Mating	Number of Rows	Insulation Color	Style	Insulation Material	Contact Type	Shrouding	Contact Material	For Use With/Related Products	Number of Positions	Accessory Type	Mated Stacking Heights	Contact Finish - Post	Pitch [x]	Pitch [x]	Contact Termination	Note	Color	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Number of Positions Loaded
Hirose Electric USA, Inc. DF7-3P-3.96DS(01)	7 mm	0.276 in	Latch Holder	Square	Solder	-35 °C	85 °C	Header	0.303 in	7.7 mm	0.156 in	3.96 mm	All	Through Hole Right Angle	3.5 mm	0.138 in	UL94 V-0	Board Guide	Gold	1	Beige	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	Male Pin	Shrouded - 4 Wall	Copper Alloy
Hirose Electric USA, Inc. DF7-1RS/P-3.96																											DF7 Series	1	Retainer Clip
Hirose Electric USA, Inc. DF7-7P-3.96DSA(26)	7 mm	0.276 in	Latch Holder	Square	Solder	-35 °C	85 °C	Header	0.508 in	12.9 mm	0.156 in	3.96 mm	All	Through Hole	3.5 mm	0.138 in	UL94 V-0	Board Guide	Gold	1	Beige	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	Male Pin	Shrouded - 4 Wall	Copper Alloy		7		21.5 mm
Hirose Electric USA, Inc. DF7-8P-3.96DS(25)	7 mm	0.276 in	Latch Holder	Square	Solder	-35 °C	85 °C	Header	0.303 in	7.7 mm	0.156 in	3.96 mm	All	Through Hole Right Angle	3.5 mm	0.138 in	UL94 V-0	Board Guide		1	Beige	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	Male Pin	Shrouded - 4 Wall	Copper Alloy		8			Tin
Hirose Electric USA, Inc. DF7-3RS/P-3.96																											DF7 Series		Retainer Clip
Hirose Electric USA, Inc. DF7-3S-3.96C			Latch Lock					Receptacle						Free Hanging (In-Line)						1				Female Socket								0.156 in	3.96 mm	Crimp	Contacts Not Included	White
Hirose Electric USA, Inc. DF7-2022SC																																		Crimp			Socket	20 AWG	22 AWG	Tin
Hirose Electric USA, Inc. DF7-6S-3.96C			Latch Lock					Receptacle						Free Hanging (In-Line)						1				Female Socket				6				0.156 in	3.96 mm	Crimp	Contacts Not Included	White
Hirose Electric USA, Inc. DF7-2P-7.92DSA	7 mm	0.276 in	Latch Holder	Square	Solder	-35 °C	85 °C	Header	0.508 in	12.9 mm	0.312 in	7.92 mm		Through Hole	3.5 mm	0.138 in	UL94 V-0	Board Guide		1	Beige	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	Male Pin	Shrouded - 4 Wall	Copper Alloy				21.5 mm	Tin										2
Hirose Electric USA, Inc. DF7-4P-3.96DS(25)	7 mm	0.276 in	Latch Holder	Square	Solder	-35 °C	85 °C	Header	0.303 in	7.7 mm	0.156 in	3.96 mm	All	Through Hole Right Angle	3.5 mm	0.138 in	UL94 V-0	Board Guide		1	Beige	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	Male Pin	Shrouded - 4 Wall	Copper Alloy		4			Tin
