DF7-2022SC

Obsolete

Hirose Electric USA, Inc.

CONN SOCKET 20-22AWG CRIMP TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF7-2022SC

Obsolete

Hirose Electric USA, Inc.

CONN SOCKET 20-22AWG CRIMP TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF7-2022SC

Contact Finish	Tin
Contact Termination	Crimp
Pin or Socket	Socket
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	20 AWG

DF7 Series

Part	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Shape	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Mounting Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Features	Contact Finish - Mating	Number of Rows	Insulation Color	Style	Insulation Material	Contact Type	Shrouding	Contact Material	For Use With/Related Products	Number of Positions	Accessory Type	Mated Stacking Heights	Contact Finish - Post	Pitch [x]	Pitch [x]	Contact Termination	Note	Color	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Number of Positions Loaded
Hirose Electric USA, Inc. DF7-3P-3.96DS(01)	7 mm	0.276 in	Latch Holder	Square	Solder	-35 °C	85 °C	Header	0.303 in	7.7 mm	0.156 in	3.96 mm	All	Through Hole Right Angle	3.5 mm	0.138 in	UL94 V-0	Board Guide	Gold	1	Beige	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	Male Pin	Shrouded - 4 Wall	Copper Alloy
Hirose Electric USA, Inc. DF7-1RS/P-3.96																											DF7 Series	1	Retainer Clip
Hirose Electric USA, Inc. DF7-7P-3.96DSA(26)	7 mm	0.276 in	Latch Holder	Square	Solder	-35 °C	85 °C	Header	0.508 in	12.9 mm	0.156 in	3.96 mm	All	Through Hole	3.5 mm	0.138 in	UL94 V-0	Board Guide	Gold	1	Beige	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	Male Pin	Shrouded - 4 Wall	Copper Alloy		7		21.5 mm
Hirose Electric USA, Inc. DF7-8P-3.96DS(25)	7 mm	0.276 in	Latch Holder	Square	Solder	-35 °C	85 °C	Header	0.303 in	7.7 mm	0.156 in	3.96 mm	All	Through Hole Right Angle	3.5 mm	0.138 in	UL94 V-0	Board Guide		1	Beige	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	Male Pin	Shrouded - 4 Wall	Copper Alloy		8			Tin
Hirose Electric USA, Inc. DF7-3RS/P-3.96																											DF7 Series		Retainer Clip
Hirose Electric USA, Inc. DF7-3S-3.96C			Latch Lock					Receptacle						Free Hanging (In-Line)						1				Female Socket								0.156 in	3.96 mm	Crimp	Contacts Not Included	White
Hirose Electric USA, Inc. DF7-2022SC																																		Crimp			Socket	20 AWG	22 AWG	Tin
Hirose Electric USA, Inc. DF7-6S-3.96C			Latch Lock					Receptacle						Free Hanging (In-Line)						1				Female Socket				6				0.156 in	3.96 mm	Crimp	Contacts Not Included	White
Hirose Electric USA, Inc. DF7-2P-7.92DSA	7 mm	0.276 in	Latch Holder	Square	Solder	-35 °C	85 °C	Header	0.508 in	12.9 mm	0.312 in	7.92 mm		Through Hole	3.5 mm	0.138 in	UL94 V-0	Board Guide		1	Beige	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	Male Pin	Shrouded - 4 Wall	Copper Alloy				21.5 mm	Tin										2
Hirose Electric USA, Inc. DF7-4P-3.96DS(25)	7 mm	0.276 in	Latch Holder	Square	Solder	-35 °C	85 °C	Header	0.303 in	7.7 mm	0.156 in	3.96 mm	All	Through Hole Right Angle	3.5 mm	0.138 in	UL94 V-0	Board Guide		1	Beige	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	Male Pin	Shrouded - 4 Wall	Copper Alloy		4			Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF7 Series

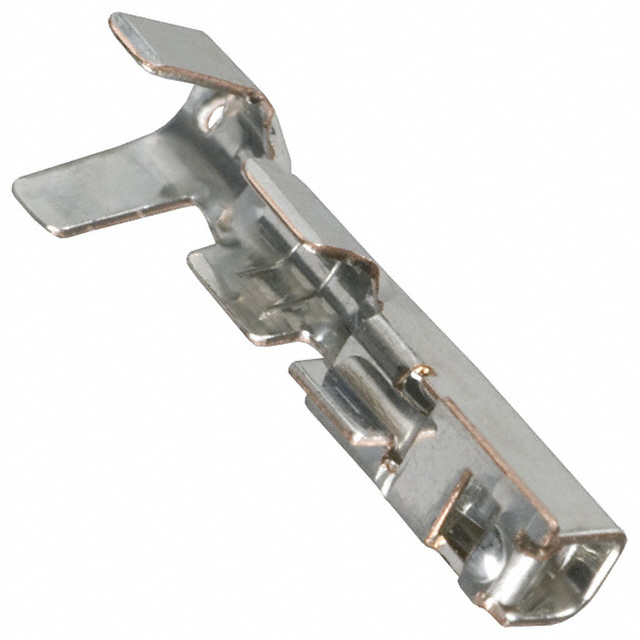

Socket Contact Tin 20-22 AWG Crimp
