STK681-320GEVB

Obsolete

ON Semiconductor

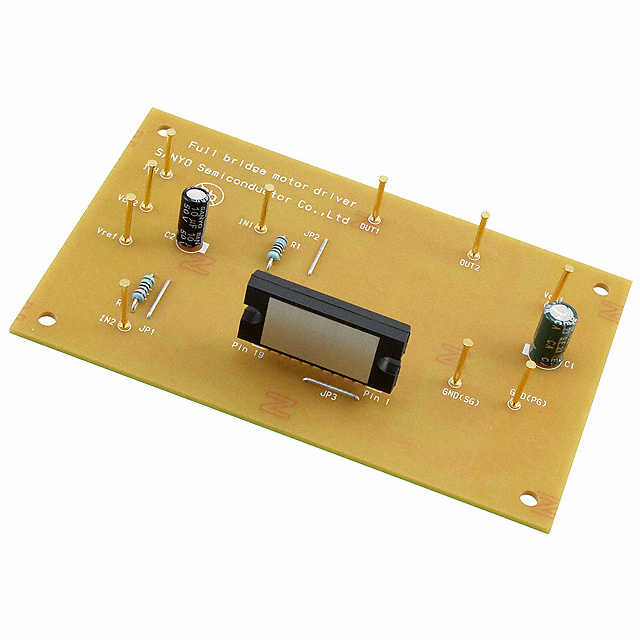

BOARD EVAL FOR STK681-320

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STK681-320GEVB

Obsolete

ON Semiconductor

BOARD EVAL FOR STK681-320

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STK681-320GEVB

Function	Motor Controller/Driver
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	STK681-320

STK681-310N-E Series

Motor Driver Intelligent Power Module (IPM), DC, Forward / Reverse, with Brush

Part	Supplied Contents	Type	Utilized IC / Part	Function	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Technology	Applications	Voltage - Load [Max]	Voltage - Load [Min]	Load Type	Output Configuration	Operating Temperature	Interface	Current - Output / Channel	Package / Case	Package / Case	Mounting Type	Motor Type - AC, DC	Current - Output	Current - Peak Output	Operating Temperature [Min]	Operating Temperature [Max]	Contents
ON Semiconductor STK681-332GEVB	Board(s)	Power Management	STK681-332-E	Motor Controller/Driver
ON Semiconductor STK681-200-E					12-SIP	4.75 V	5.25 V	IGBT Power MOSFET	DC Motors General Purpose	42 V	10 V	Inductive	Half Bridge (2)	150 °C	Logic	4.2 A	11 Leads	12-SIP	Through Hole
ON Semiconductor STK681-320GEVB	Board(s)	Power Management	STK681-320	Motor Controller/Driver
ON Semiconductor STK681-310N-E				Driver - Fully Integrated Control and Power Stage	19-SIP	4.75 V	5.25 V	Power MOSFET	General Purpose	42 V	10 V		Half Bridge (2)	150 °C	Parallel			19-SSIP Formed Leads	Through Hole	Brushed DC	4.2 A
ON Semiconductor STK681-320				Driver - Fully Integrated Control and Power Stage		4.75 V	5.25 V	Power MOSFET	General Purpose	42 V	10 V		Half Bridge (2)	150 °C	Parallel			19-SSIP Formed Leads	Through Hole	Brushed DC	5.2 A
ON Semiconductor STK681-210-E					12-SIP	4.75 V	5.25 V	Power MOSFET	DC Motors General Purpose	42 V	10 V	Inductive	Half Bridge (2)	150 °C	Logic	5.2 A	11 Leads	12-SIP	Through Hole			8 A
ON Semiconductor STK681-360-E				Driver - Fully Integrated Control and Power Stage	19-SIP	4.75 V	5.25 V	Power MOSFET	General Purpose	30 V	10 V		Half Bridge (2)		Parallel			19-SSIP Formed Leads	Through Hole	Brushed DC	4.5 A		0 °C	105 °C
ON Semiconductor STK681-332-E				Driver - Fully Integrated Control and Power Stage		4.75 V	5.25 V	Power MOSFET	General Purpose	42 V	10 V		Half Bridge (2)		Parallel			19-SSIP Formed Leads	Through Hole	Brushed DC	6.1 A		-20 °C	105 °C
ON Semiconductor STK681-360GEVB	Board(s)	Power Management	STK681-360-E	Motor Controller/Driver																					Board(s)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

STK681-310N-E Series

STK681-332-E is a hybrid IC for use in current control forward/reverse DC motor driver for brush motors. It allows forward, reverse, and brake operations in accordance with the external input signal. The peak startup output current is 8.5A and the peak brake output current is 12A. Connecting an external current detection resistor allows over-current detection and peak current control in the PWM operation mode. And STK681-332-E has various protective functions built-in. They include function against over-current, overheating and short to ground and short to supply. And it obviate the need to design for the dead time in order to turn off the upper and lower drive devices when switching between the forward and reverse operation mode.
