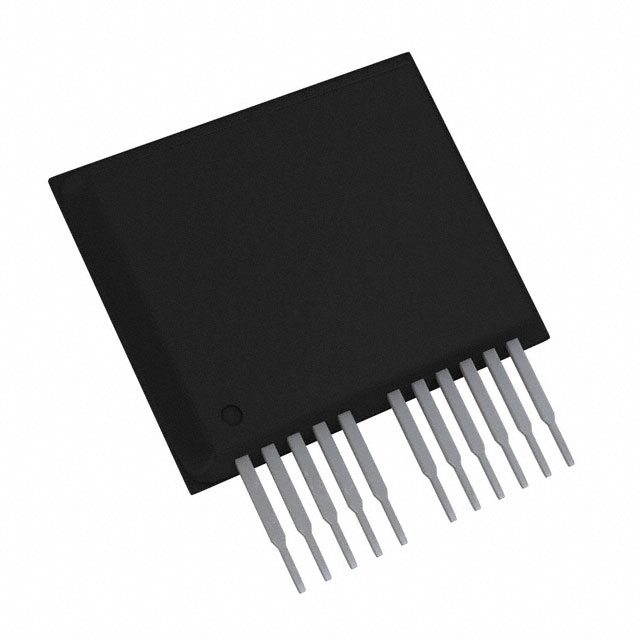

STK681-200-E

Obsolete

ON Semiconductor

IC HALF BRIDGE DRIVER 4.2A 12SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STK681-200-E

Obsolete

ON Semiconductor

IC HALF BRIDGE DRIVER 4.2A 12SIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STK681-200-E

Applications	DC Motors, General Purpose
Current - Output / Channel	4.2 A
Interface	Logic
Load Type	Inductive
Mounting Type	Through Hole
Operating Temperature	150 °C
Output Configuration	Half Bridge (2)
Package / Case	11 Leads
Package / Case	12-SIP
Supplier Device Package	12-SIP
Technology	Power MOSFET, IGBT
Voltage - Load [Max]	42 V
Voltage - Load [Min]	10 V
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

STK681-310N-E Series

Motor Driver Intelligent Power Module (IPM), DC, Forward / Reverse, with Brush

Part	Supplied Contents	Type	Utilized IC / Part	Function	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Technology	Applications	Voltage - Load [Max]	Voltage - Load [Min]	Load Type	Output Configuration	Operating Temperature	Interface	Current - Output / Channel	Package / Case	Package / Case	Mounting Type	Motor Type - AC, DC	Current - Output	Current - Peak Output	Operating Temperature [Min]	Operating Temperature [Max]	Contents
ON Semiconductor STK681-332GEVB	Board(s)	Power Management	STK681-332-E	Motor Controller/Driver
ON Semiconductor STK681-200-E					12-SIP	4.75 V	5.25 V	IGBT Power MOSFET	DC Motors General Purpose	42 V	10 V	Inductive	Half Bridge (2)	150 °C	Logic	4.2 A	11 Leads	12-SIP	Through Hole
ON Semiconductor STK681-320GEVB	Board(s)	Power Management	STK681-320	Motor Controller/Driver
ON Semiconductor STK681-310N-E				Driver - Fully Integrated Control and Power Stage	19-SIP	4.75 V	5.25 V	Power MOSFET	General Purpose	42 V	10 V		Half Bridge (2)	150 °C	Parallel			19-SSIP Formed Leads	Through Hole	Brushed DC	4.2 A
ON Semiconductor STK681-320				Driver - Fully Integrated Control and Power Stage		4.75 V	5.25 V	Power MOSFET	General Purpose	42 V	10 V		Half Bridge (2)	150 °C	Parallel			19-SSIP Formed Leads	Through Hole	Brushed DC	5.2 A
ON Semiconductor STK681-210-E					12-SIP	4.75 V	5.25 V	Power MOSFET	DC Motors General Purpose	42 V	10 V	Inductive	Half Bridge (2)	150 °C	Logic	5.2 A	11 Leads	12-SIP	Through Hole			8 A
ON Semiconductor STK681-360-E				Driver - Fully Integrated Control and Power Stage	19-SIP	4.75 V	5.25 V	Power MOSFET	General Purpose	30 V	10 V		Half Bridge (2)		Parallel			19-SSIP Formed Leads	Through Hole	Brushed DC	4.5 A		0 °C	105 °C
ON Semiconductor STK681-332-E				Driver - Fully Integrated Control and Power Stage		4.75 V	5.25 V	Power MOSFET	General Purpose	42 V	10 V		Half Bridge (2)		Parallel			19-SSIP Formed Leads	Through Hole	Brushed DC	6.1 A		-20 °C	105 °C
ON Semiconductor STK681-360GEVB	Board(s)	Power Management	STK681-360-E	Motor Controller/Driver																					Board(s)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

STK681-310N-E Series

STK681-332-E is a hybrid IC for use in current control forward/reverse DC motor driver for brush motors. It allows forward, reverse, and brake operations in accordance with the external input signal. The peak startup output current is 8.5A and the peak brake output current is 12A. Connecting an external current detection resistor allows over-current detection and peak current control in the PWM operation mode. And STK681-332-E has various protective functions built-in. They include function against over-current, overheating and short to ground and short to supply. And it obviate the need to design for the dead time in order to turn off the upper and lower drive devices when switching between the forward and reverse operation mode.

Documents

Technical documentation and resources
