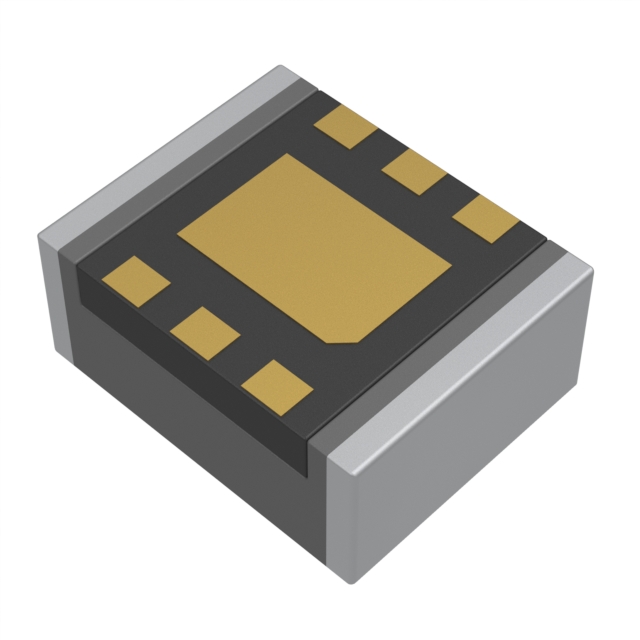

XCL101C331BR-G

Torex Semiconductor Ltd

DC DC CONVERTER 3.3V 0.33W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XCL101C331BR-G

Torex Semiconductor Ltd

DC DC CONVERTER 3.3V 0.33W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XCL101C331BR-G

Applications	ITE (Commercial)
Current - Output (Max) [Max]	100 mA
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-TDFN Exposed Pad
Size / Dimension [x]	0.1 in
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	0.08 "
Size / Dimension [y]	2 mm
Size / Dimension [z]	0.04 in
Size / Dimension [z]	1 mm
Supplier Device Package	CL-2025
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	0.9 V
Voltage - Output 1	3.3 V

XCL101 Series

Part	Voltage - Input (Max) [Max]	Supplier Device Package	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Type	Applications	Number of Outputs	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Torex Semiconductor Ltd XCL101C451ER-G	5.5 V	CL-2025-02	4.5 V	0.08 "	0.1 in	2 mm	0.04 in	1 mm	2.5 mm	Surface Mount	0.9 V	100 mA	Non-Isolated PoL Module	ITE (Commercial)	1	8-TDFN Exposed Pad	85 °C	-40 °C
Torex Semiconductor Ltd XCL101A361ER-G	5.5 V	CL-2025-02	3.6 V	0.08 "	0.1 in	2 mm	0.04 in	1 mm	2.5 mm	Surface Mount	0.9 V	100 mA	Non-Isolated PoL Module	ITE (Commercial)	1	8-TDFN Exposed Pad	85 °C	-40 °C
Torex Semiconductor Ltd XCL101A201ER-G	5.5 V	CL-2025-02	2 V	0.08 "	0.1 in	2 mm	0.04 in	1 mm	2.5 mm	Surface Mount	0.9 V	100 mA	Non-Isolated PoL Module	ITE (Commercial)	1	8-TDFN Exposed Pad	85 °C	-40 °C
Torex Semiconductor Ltd XCL101C411ER-G		CL-2025-02								Surface Mount						8-TDFN Exposed Pad
Torex Semiconductor Ltd XCL101C191ER-G		CL-2025-02								Surface Mount						8-TDFN Exposed Pad
Torex Semiconductor Ltd XCL101C331BR-G	5.5 V	CL-2025	3.3 V	0.08 "	0.1 in	2 mm	0.04 in	1 mm	2.5 mm	Surface Mount	0.9 V	100 mA	Non-Isolated PoL Module	ITE (Commercial)	1	6-TDFN Exposed Pad	85 °C	-40 °C
Torex Semiconductor Ltd XCL101A371ER-G		CL-2025-02								Surface Mount						8-TDFN Exposed Pad
Torex Semiconductor Ltd XCL101A441ER-G		CL-2025-02								Surface Mount						8-TDFN Exposed Pad
Torex Semiconductor Ltd XCL101C471ER-G		CL-2025-02								Surface Mount						8-TDFN Exposed Pad
Torex Semiconductor Ltd XCL101A501BR-G	5.5 V	CL-2025	5 V	0.08 "	0.1 in	2 mm	0.04 in	1 mm	2.5 mm	Surface Mount	0.9 V	100 mA	Non-Isolated PoL Module	ITE (Commercial)	1	6-TDFN Exposed Pad	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.61
	Digi-Reel®	1	$ 2.61
	Tape & Reel (TR)	3000	$ 1.19
		6000	$ 1.15

Description

General part information

XCL101 Series

Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 100mA 0.9V - 5.5V Input
