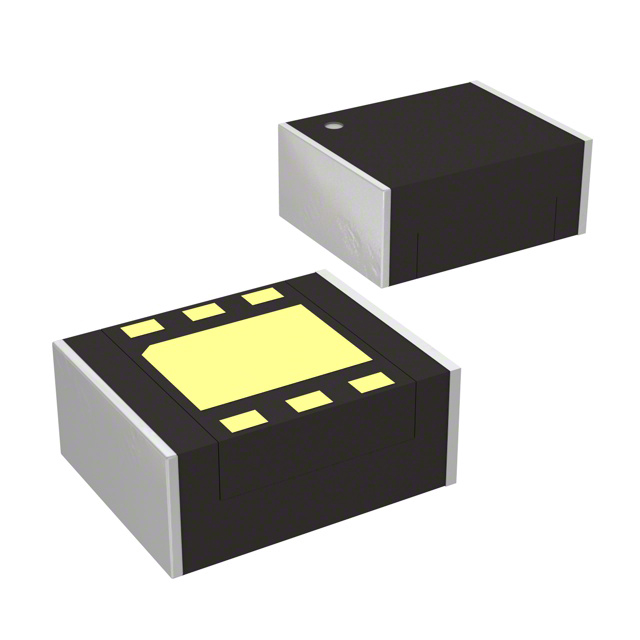

XCL101A201ER-G
ActiveTorex Semiconductor Ltd
DC DC CONVERTER 2V 0.3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XCL101A201ER-G
ActiveTorex Semiconductor Ltd
DC DC CONVERTER 2V 0.3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XCL101A201ER-G |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 100 mA |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-TDFN Exposed Pad |
| Size / Dimension [x] | 0.1 in |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 0.08 " |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [z] | 0.04 in |
| Size / Dimension [z] | 1 mm |
| Supplier Device Package | CL-2025-02 |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 0.9 V |
| Voltage - Output 1 | 2 V |
XCL101 Series
| Part | Voltage - Input (Max) [Max] | Supplier Device Package | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Mounting Type | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Type | Applications | Number of Outputs | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Torex Semiconductor Ltd | 5.5 V | CL-2025-02 | 4.5 V | 0.08 " | 0.1 in | 2 mm | 0.04 in | 1 mm | 2.5 mm | Surface Mount | 0.9 V | 100 mA | Non-Isolated PoL Module | ITE (Commercial) | 1 | 8-TDFN Exposed Pad | 85 °C | -40 °C |
Torex Semiconductor Ltd | 5.5 V | CL-2025-02 | 3.6 V | 0.08 " | 0.1 in | 2 mm | 0.04 in | 1 mm | 2.5 mm | Surface Mount | 0.9 V | 100 mA | Non-Isolated PoL Module | ITE (Commercial) | 1 | 8-TDFN Exposed Pad | 85 °C | -40 °C |
Torex Semiconductor Ltd | 5.5 V | CL-2025-02 | 2 V | 0.08 " | 0.1 in | 2 mm | 0.04 in | 1 mm | 2.5 mm | Surface Mount | 0.9 V | 100 mA | Non-Isolated PoL Module | ITE (Commercial) | 1 | 8-TDFN Exposed Pad | 85 °C | -40 °C |
Torex Semiconductor Ltd | CL-2025-02 | Surface Mount | 8-TDFN Exposed Pad | |||||||||||||||
Torex Semiconductor Ltd | CL-2025-02 | Surface Mount | 8-TDFN Exposed Pad | |||||||||||||||
Torex Semiconductor Ltd | 5.5 V | CL-2025 | 3.3 V | 0.08 " | 0.1 in | 2 mm | 0.04 in | 1 mm | 2.5 mm | Surface Mount | 0.9 V | 100 mA | Non-Isolated PoL Module | ITE (Commercial) | 1 | 6-TDFN Exposed Pad | 85 °C | -40 °C |
Torex Semiconductor Ltd | CL-2025-02 | Surface Mount | 8-TDFN Exposed Pad | |||||||||||||||
Torex Semiconductor Ltd | CL-2025-02 | Surface Mount | 8-TDFN Exposed Pad | |||||||||||||||
Torex Semiconductor Ltd | CL-2025-02 | Surface Mount | 8-TDFN Exposed Pad | |||||||||||||||
Torex Semiconductor Ltd | 5.5 V | CL-2025 | 5 V | 0.08 " | 0.1 in | 2 mm | 0.04 in | 1 mm | 2.5 mm | Surface Mount | 0.9 V | 100 mA | Non-Isolated PoL Module | ITE (Commercial) | 1 | 6-TDFN Exposed Pad | 85 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 1.19 | |
| 6000 | $ 1.15 | |||
Description
General part information
XCL101 Series
Non-Isolated PoL Module DC DC Converter 1 Output 2V 100mA 0.9V - 5.5V Input
