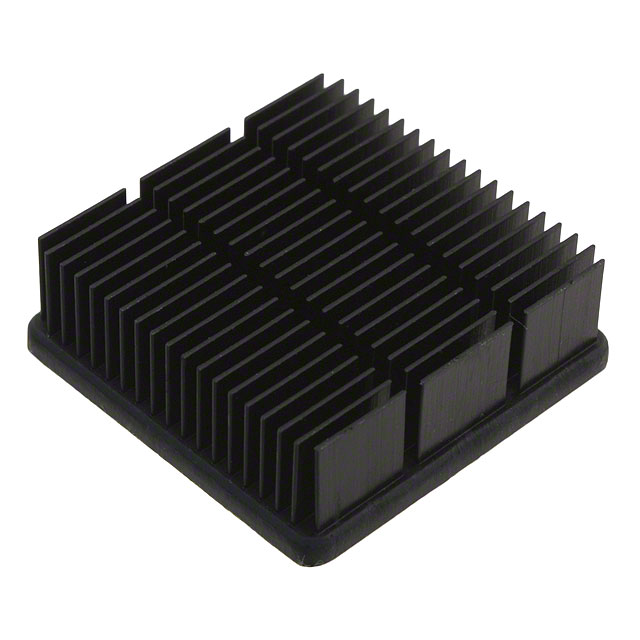

APF303010CBA01
ActiveTusonix a Subsidiary of CTS Electronic Components
HEATSINK FORGED W/ADHESIVE TAPE
Deep-Dive with AI
Search across all available documentation for this part.
APF303010CBA01
ActiveTusonix a Subsidiary of CTS Electronic Components
HEATSINK FORGED W/ADHESIVE TAPE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | APF303010CBA01 |
|---|---|
| Attachment Method | Thermal Tape, Adhesive (Included) |
| Fin Height [z] | 9.4 mm |
| Fin Height [z] | 0.37 " |
| Length [x] | 30 mm |
| Length [x] | 1.181 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | ASIC, BGA, LGA, CPU |
| Shape | Square, Fins |
| Shelf Life | 24 Months |
| Thermal Resistance @ Forced Air Flow | 3.3 °C/W |
| Type | Top Mount |
| Width | 30 mm |
| Width | 1.181 in |
APF30 Series
| Part | Length [x] | Length [x] | Attachment Method | Type | Thermal Resistance @ Forced Air Flow | Fin Height [z] | Fin Height [z] | Width | Width | Material | Material Finish | Package Cooled | Shape | Shelf Life | Fin Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Tusonix a Subsidiary of CTS Electronic Components | 30 mm | 1.181 in | Thermal Tape Adhesive (Not Included) | Top Mount | 4.4 °C/W 200 LFM | 6.35 mm | 0.25 in | 30 mm | 1.181 in | Aluminum | Black Anodized | ASIC BGA CPU LGA | Fins Square | ||
Tusonix a Subsidiary of CTS Electronic Components | 30 mm | 1.181 in | Thermal Tape Adhesive (Included) | Top Mount | 4.4 °C/W 200 LFM | 6.35 mm | 0.25 in | 30 mm | 1.181 in | Aluminum | Black Anodized | ASIC BGA CPU LGA | Fins Square | 24 Months | |
Tusonix a Subsidiary of CTS Electronic Components | 30 mm | 1.181 in | Thermal Tape Adhesive (Included) | Top Mount | 3.3 °C/W | 0.37 " | 30 mm | 1.181 in | Aluminum | Black Anodized | ASIC BGA CPU LGA | Fins Square | 24 Months | 9.4 mm | |
Tusonix a Subsidiary of CTS Electronic Components | 30 mm | 1.181 in | Thermal Tape Adhesive (Not Included) | Top Mount | 2.5 °C/W 200 LFM | 12.7 mm | 0.5 in | 30 mm | 1.181 in | Aluminum | Black Anodized | ASIC BGA CPU LGA | Fins Square | ||
Tusonix a Subsidiary of CTS Electronic Components | 30 mm | 1.181 in | Thermal Tape Adhesive (Not Included) | Top Mount | 3.3 °C/W | 0.37 " | 30 mm | 1.181 in | Aluminum | Black Anodized | ASIC BGA CPU LGA | Fins Square | 9.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.75 | |
| 10 | $ 7.54 | |||
| 25 | $ 7.12 | |||
| 50 | $ 6.70 | |||
| 100 | $ 6.28 | |||
| 250 | $ 5.86 | |||
| 500 | $ 5.44 | |||
| 1000 | $ 5.34 | |||
Description
General part information
APF30 Series
Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
