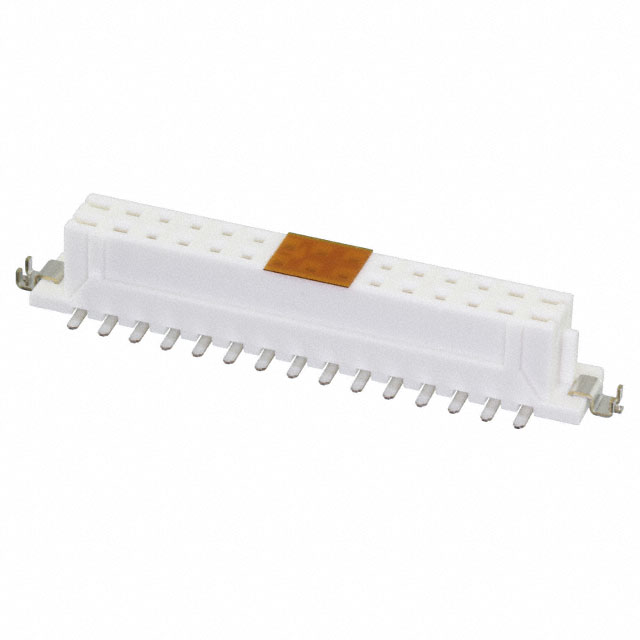

DF11CZ-30DS-2V(22)

Active

Hirose Electric USA, Inc.

CONN RCPT 30POS 0.079 TIN SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF11 Series Datasheet Datasheet

DF11CZ-30DS-2V(22)

Active

Hirose Electric USA, Inc.

CONN RCPT 30POS 0.079 TIN SMD

Deep-Dive with AI

DocumentsDF11 Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF11CZ-30DS-2V(22)

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Friction Lock
Features	Pick and Place, Solder Retention
Insulation Color	Beige
Insulation Height	5.95 mm
Insulation Height	0.234 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	8.2 mm, 7.55 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

DF11C Series

Part	Number of Rows	Fastening Type	Mounting Type	Number of Positions Loaded	Contact Finish - Post	Contact Material	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Style	Applications	Features	Insulation Material	Contact Shape	Number of Positions	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Mated Stacking Heights	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Finish - Mating	Shrouding
Hirose Electric USA, Inc. DF11CZ-24DS-2V(52)	2	Friction Lock	Surface Mount	All	Tin	Phosphor Bronze	UL94 V-0	0.203 Ám	8 Áin	5.95 mm	0.234 in	0.079 in	2 mm	250 VDC	Board to Board Cable	General Purpose	Pick and Place Solder Retention	Nylon Polyamide (PA)	Square	24	Receptacle	2 çm	78.7 çin	2 A	0.079 in	2 mm	Female Socket	7.55 mm 8.2 mm	Solder	-30 ░C	85 °C	Beige	Gold
Hirose Electric USA, Inc. DF11CZ-22DS-2V(22)	2	Friction Lock	Surface Mount	All	Tin	Phosphor Bronze	UL94 V-0	1 µm	39.4 µin	5.95 mm	0.234 in	0.079 in	2 mm	250 VDC	Board to Board Cable	General Purpose	Pick and Place Solder Retention	Nylon Polyamide (PA)	Square	22 positions	Receptacle	2 çm	78.7 çin	2 A	0.079 in	2 mm	Female Socket	7.55 mm 8.2 mm	Solder	-30 ░C	85 °C	Beige
Hirose Electric USA, Inc. DF11CZ-20DS-2V(22)	2	Friction Lock	Surface Mount	All	Tin	Phosphor Bronze	UL94 V-0	1 µm	39.4 µin	5.95 mm	0.234 in	0.079 in	2 mm	250 VDC	Board to Board Cable	General Purpose	Pick and Place Solder Retention	Nylon Polyamide (PA)	Square	20	Receptacle	2 çm	78.7 çin	2 A	0.079 in	2 mm	Female Socket	7.55 mm 8.2 mm	Solder	-30 ░C	85 °C	Beige
Hirose Electric USA, Inc. DF11CZ-40DS-2V(22)	2	Friction Lock	Surface Mount	All	Tin	Phosphor Bronze	UL94 V-0	1 µm	39.4 µin	5.95 mm	0.234 in	0.079 in	2 mm	250 VDC	Board to Board Cable	General Purpose	Pick and Place Solder Retention	Nylon Polyamide (PA)	Square	40	Receptacle	2 çm	78.7 çin	2 A	0.079 in	2 mm	Female Socket	7.55 mm 8.2 mm	Solder	-30 ░C	85 °C	Beige
Hirose Electric USA, Inc. DF11CZ-20DP-2V(27)	2	Detent Lock	Surface Mount	All	Tin	Brass	UL94 V-0	1 µm	39.4 µin	7.19 mm	0.283 "	0.079 in	2 mm	250 VDC	Board to Board Cable		Pick and Place Solder Retention	Nylon Polyamide (PA)	Circular	20	Header			2 A	0.079 in	2 mm	Male Pin	8.2 mm 8.45 mm 9.55 mm	Solder	-30 ░C	85 °C	Beige		Shrouded - 4 Wall
Hirose Electric USA, Inc. DF11CZ-40DP-2V(27)	2	Detent Lock	Surface Mount	All	Tin	Brass	UL94 V-0	1 µm	39.4 µin	7.19 mm	0.283 "	0.079 in	2 mm	250 VDC	Board to Board Cable		Pick and Place Solder Retention	Nylon Polyamide (PA)	Circular	40	Header			2 A	0.079 in	2 mm	Male Pin	8.2 mm 8.45 mm 9.55 mm	Solder	-30 ░C	85 °C	Beige		Shrouded - 4 Wall
Hirose Electric USA, Inc. DF11C-20DP-2V(51)	2	Detent Lock	Surface Mount	All		Brass	UL94 V-0			7.19 mm	0.283 "	0.079 in	2 mm	250 VDC	Board to Board Cable		Solder Retention	Nylon Polyamide (PA)	Circular	20	Header			2 A	0.079 in	2 mm	Male Pin	8.2 mm 8.45 mm 9.55 mm	Solder	-30 ░C	85 °C	Black	Gold	Shrouded - 4 Wall
Hirose Electric USA, Inc. DF11CZ-28DS-2V(22)	2	Friction Lock	Surface Mount	All	Tin	Phosphor Bronze	UL94 V-0	1 µm	39.4 µin	5.95 mm	0.234 in	0.079 in	2 mm	250 VDC	Board to Board Cable	General Purpose	Pick and Place Solder Retention	Nylon Polyamide (PA)	Square	28	Receptacle	2 çm	78.7 çin	2 A	0.079 in	2 mm	Female Socket	7.55 mm 8.2 mm	Solder	-30 ░C	85 °C	Beige
Hirose Electric USA, Inc. DF11CZ-30DS-2V(22)	2	Friction Lock	Surface Mount	All	Tin	Phosphor Bronze	UL94 V-0	1 µm	39.4 µin	5.95 mm	0.234 in	0.079 in	2 mm	250 VDC	Board to Board Cable	General Purpose	Pick and Place Solder Retention	Nylon Polyamide (PA)	Square	30	Receptacle	2 çm	78.7 çin	2 A	0.079 in	2 mm	Female Socket	7.55 mm 8.2 mm	Solder	-30 ░C	85 °C	Beige
Hirose Electric USA, Inc. DF11CZ-10DP-2V(27)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.24
		10	$ 1.95
		25	$ 1.86
		50	$ 1.82
		100	$ 1.74
		250	$ 1.57
	Digi-Reel®	1	$ 2.24
		10	$ 1.95
		25	$ 1.86
		50	$ 1.82
		100	$ 1.74
		250	$ 1.57
	Tape & Reel (TR)	500	$ 1.45
		1000	$ 1.24
		1500	$ 1.20
		2500	$ 1.16
		5000	$ 1.10

Description

General part information

DF11C Series

30 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Tin

Documents

Technical documentation and resources

DF11 Series Datasheet

Datasheet
