DF11CZ-20DP-2V(27)

Active

Hirose Electric USA, Inc.

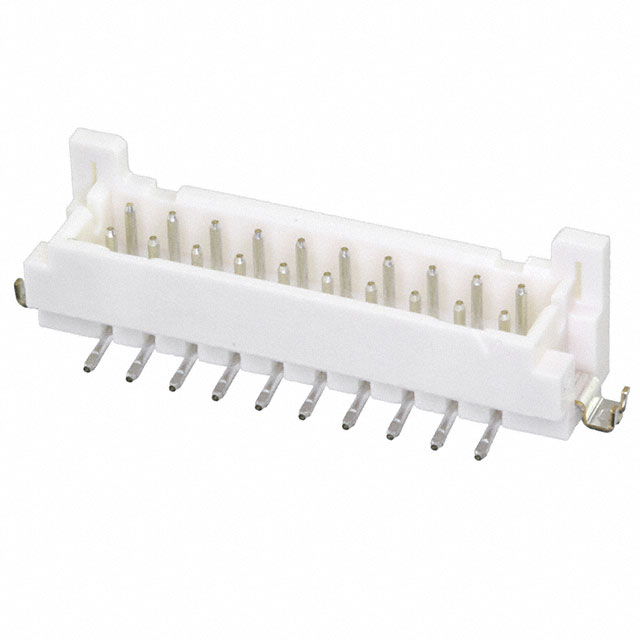

BOARD CONNECTOR, 20 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING MECH, BEIGE INSULATOR, RECEPTACLE, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF11 Series Datasheet Datasheet

DF11CZ-20DP-2V(27)

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 20 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING MECH, BEIGE INSULATOR, RECEPTACLE, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDF11 Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF11CZ-20DP-2V(27)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Features	Pick and Place, Solder Retention
Insulation Color	Beige
Insulation Height	0.283 "
Insulation Height	7.19 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	8.2 mm, 9.55 mm, 8.45 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

DF11C Series

Part	Number of Rows	Fastening Type	Mounting Type	Number of Positions Loaded	Contact Finish - Post	Contact Material	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Style	Applications	Features	Insulation Material	Contact Shape	Number of Positions	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Mated Stacking Heights	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Finish - Mating	Shrouding
Hirose Electric USA, Inc. DF11CZ-24DS-2V(52)	2	Friction Lock	Surface Mount	All	Tin	Phosphor Bronze	UL94 V-0	0.203 Ám	8 Áin	5.95 mm	0.234 in	0.079 in	2 mm	250 VDC	Board to Board Cable	General Purpose	Pick and Place Solder Retention	Nylon Polyamide (PA)	Square	24	Receptacle	2 çm	78.7 çin	2 A	0.079 in	2 mm	Female Socket	7.55 mm 8.2 mm	Solder	-30 ░C	85 °C	Beige	Gold
Hirose Electric USA, Inc. DF11CZ-22DS-2V(22)	2	Friction Lock	Surface Mount	All	Tin	Phosphor Bronze	UL94 V-0	1 µm	39.4 µin	5.95 mm	0.234 in	0.079 in	2 mm	250 VDC	Board to Board Cable	General Purpose	Pick and Place Solder Retention	Nylon Polyamide (PA)	Square	22 positions	Receptacle	2 çm	78.7 çin	2 A	0.079 in	2 mm	Female Socket	7.55 mm 8.2 mm	Solder	-30 ░C	85 °C	Beige
Hirose Electric USA, Inc. DF11CZ-20DS-2V(22)	2	Friction Lock	Surface Mount	All	Tin	Phosphor Bronze	UL94 V-0	1 µm	39.4 µin	5.95 mm	0.234 in	0.079 in	2 mm	250 VDC	Board to Board Cable	General Purpose	Pick and Place Solder Retention	Nylon Polyamide (PA)	Square	20	Receptacle	2 çm	78.7 çin	2 A	0.079 in	2 mm	Female Socket	7.55 mm 8.2 mm	Solder	-30 ░C	85 °C	Beige
Hirose Electric USA, Inc. DF11CZ-40DS-2V(22)	2	Friction Lock	Surface Mount	All	Tin	Phosphor Bronze	UL94 V-0	1 µm	39.4 µin	5.95 mm	0.234 in	0.079 in	2 mm	250 VDC	Board to Board Cable	General Purpose	Pick and Place Solder Retention	Nylon Polyamide (PA)	Square	40	Receptacle	2 çm	78.7 çin	2 A	0.079 in	2 mm	Female Socket	7.55 mm 8.2 mm	Solder	-30 ░C	85 °C	Beige
Hirose Electric USA, Inc. DF11CZ-20DP-2V(27)	2	Detent Lock	Surface Mount	All	Tin	Brass	UL94 V-0	1 µm	39.4 µin	7.19 mm	0.283 "	0.079 in	2 mm	250 VDC	Board to Board Cable		Pick and Place Solder Retention	Nylon Polyamide (PA)	Circular	20	Header			2 A	0.079 in	2 mm	Male Pin	8.2 mm 8.45 mm 9.55 mm	Solder	-30 ░C	85 °C	Beige		Shrouded - 4 Wall
Hirose Electric USA, Inc. DF11CZ-40DP-2V(27)	2	Detent Lock	Surface Mount	All	Tin	Brass	UL94 V-0	1 µm	39.4 µin	7.19 mm	0.283 "	0.079 in	2 mm	250 VDC	Board to Board Cable		Pick and Place Solder Retention	Nylon Polyamide (PA)	Circular	40	Header			2 A	0.079 in	2 mm	Male Pin	8.2 mm 8.45 mm 9.55 mm	Solder	-30 ░C	85 °C	Beige		Shrouded - 4 Wall
Hirose Electric USA, Inc. DF11C-20DP-2V(51)	2	Detent Lock	Surface Mount	All		Brass	UL94 V-0			7.19 mm	0.283 "	0.079 in	2 mm	250 VDC	Board to Board Cable		Solder Retention	Nylon Polyamide (PA)	Circular	20	Header			2 A	0.079 in	2 mm	Male Pin	8.2 mm 8.45 mm 9.55 mm	Solder	-30 ░C	85 °C	Black	Gold	Shrouded - 4 Wall
Hirose Electric USA, Inc. DF11CZ-28DS-2V(22)	2	Friction Lock	Surface Mount	All	Tin	Phosphor Bronze	UL94 V-0	1 µm	39.4 µin	5.95 mm	0.234 in	0.079 in	2 mm	250 VDC	Board to Board Cable	General Purpose	Pick and Place Solder Retention	Nylon Polyamide (PA)	Square	28	Receptacle	2 çm	78.7 çin	2 A	0.079 in	2 mm	Female Socket	7.55 mm 8.2 mm	Solder	-30 ░C	85 °C	Beige
Hirose Electric USA, Inc. DF11CZ-30DS-2V(22)	2	Friction Lock	Surface Mount	All	Tin	Phosphor Bronze	UL94 V-0	1 µm	39.4 µin	5.95 mm	0.234 in	0.079 in	2 mm	250 VDC	Board to Board Cable	General Purpose	Pick and Place Solder Retention	Nylon Polyamide (PA)	Square	30	Receptacle	2 çm	78.7 çin	2 A	0.079 in	2 mm	Female Socket	7.55 mm 8.2 mm	Solder	-30 ░C	85 °C	Beige
