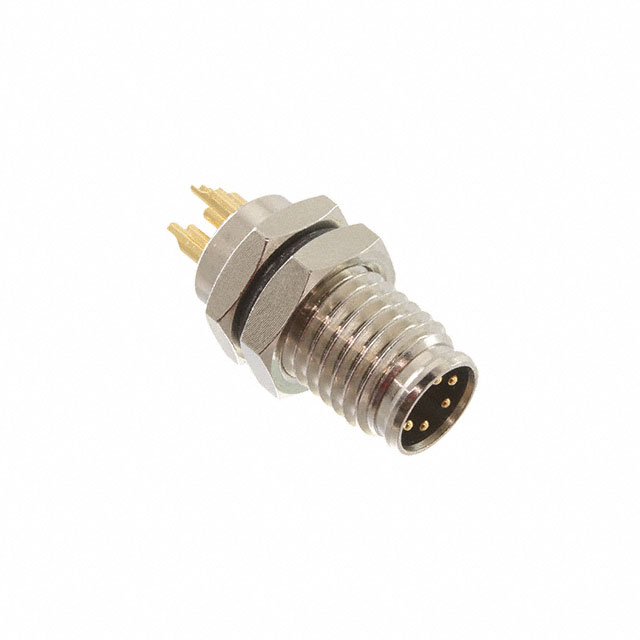

SD-MME05A-MMTPH-S70-000

Active

Adam Tech

CONN RCPT MALE 5POS SOLDER CUP

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT MALE 5POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SD-MME05A-MMTPH-S70-000

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Plastic
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M8-5
Shielding	Unshielded

Part	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Shell Material	Color	Number of Positions	Connector Type	Ingress Protection	Shell Size - Insert	Shielding	Contact Finish Thickness - Mating	Shell Finish	Primary Material	Contact Finish - Mating	Contact Material
Adam Tech SD-MME06A-MMTPH-S70-000	Bulkhead - Front Side Nut	85 °C	-20 C	Plastic	Brass	Silver	6	Male Pins Receptacle	IP67 - Dust Tight Waterproof	M8-6	Unshielded	Flash	Nickel	Metal	Gold	Brass
Adam Tech SD-MME05A-MMTPH-S70-000	Bulkhead - Front Side Nut	85 °C	-20 C	Plastic	Brass	Silver		Male Pins Receptacle	IP67 - Dust Tight Waterproof	M8-5	Unshielded	Flash	Nickel	Metal	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 20.09
