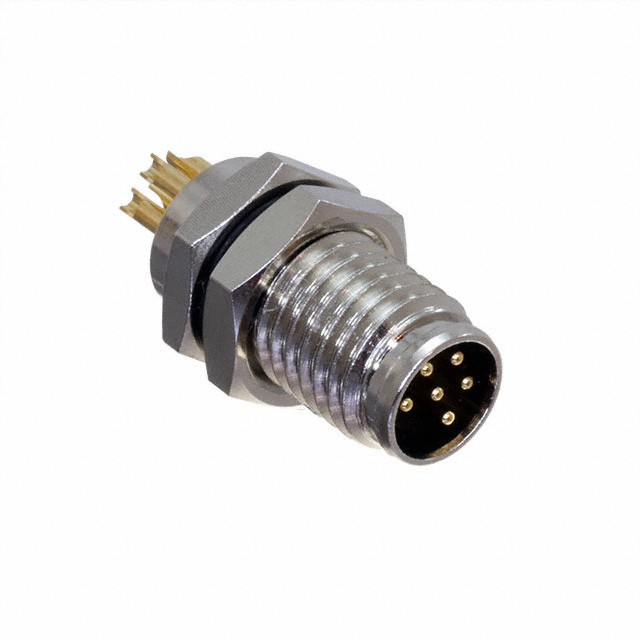

SD-MME06A-MMTPH-S70-000
ActiveAdam Tech
CONN RCPT MALE 6POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
SD-MME06A-MMTPH-S70-000
ActiveAdam Tech
CONN RCPT MALE 6POS SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SD-MME06A-MMTPH-S70-000 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Plastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M8-6 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.04 | |
| 10 | $ 8.48 | |||
| 25 | $ 7.66 | |||
| 50 | $ 7.10 | |||
| 100 | $ 6.60 | |||
| 250 | $ 6.01 | |||
| 500 | $ 5.61 | |||
| 1000 | $ 5.25 | |||
Description
General part information
SD-MME Series
6 Position Circular Connector Receptacle, Male Pins Solder Cup
