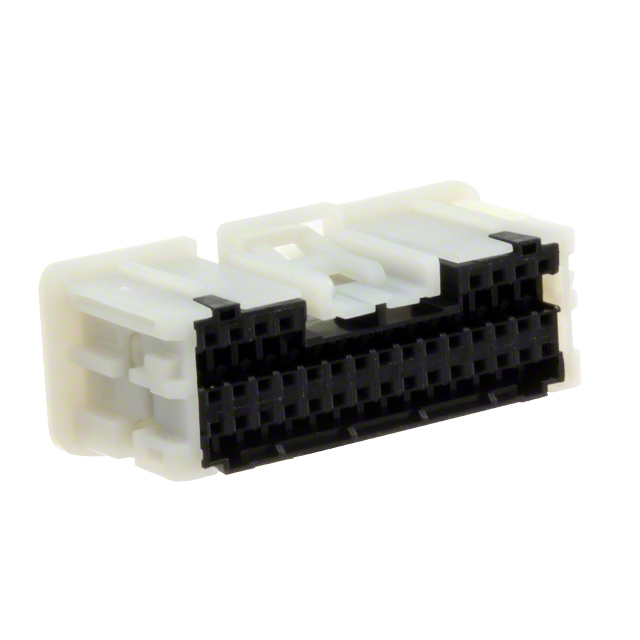

0349590388

Obsolete

Molex

CONN RCPT HSG 38POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0349590388

Obsolete

Molex

CONN RCPT HSG 38POS 2.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0349590388

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	38
Number of Rows	3
Pitch [x]	0.079 in
Pitch [x]	2 mm

034959 Series

Part	Contact Type	Pitch [x]	Pitch [x]	Contact Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Material	Fastening Type	Color	Note	Mounting Type	Number of Positions	Features	Row Spacing	Row Spacing
Molex 0349590340	Female Socket	0.079 in	2 mm	Crimp	Receptacle	-40 °C	105 ░C	3	Polyamide (PA66) Nylon 6/6 Glass Filled	Latch Lock	Black	Contacts Not Included	Free Hanging (In-Line)	34	Connector Position Assurance (CPA)
Molex 0349590384
Molex 0349590388	Female Socket	0.079 in	2 mm	Crimp	Receptacle			3		Latch Lock	Gray	Contacts Not Included	Free Hanging (In-Line)	38
Molex 0349590341	Female Socket	0.079 in	2 mm	Crimp	Receptacle	-40 °C	105 ░C	3	Polyamide (PA66) Nylon 6/6 Glass Filled	Latch Lock	Gray	Contacts Not Included	Free Hanging (In-Line)	34	Connector Position Assurance (CPA)
Molex 0349590342	Female Socket	0.079 in	2 mm	Crimp	Receptacle	-40 °C	105 ░C	3	Polyamide (PA66) Nylon 6/6 Glass Filled	Latch Lock	Gray	Contacts Not Included	Free Hanging (In-Line)	34	Connector Position Assurance (CPA)
Molex 0349590391	Female Socket	0.079 in	2 mm	Crimp	Receptacle			3	Polyamide (PA66) Nylon 6/6 Glass Filled	Latch Lock	Gray	Contacts Not Included	Free Hanging (In-Line)	38
Molex 0349591340	Female Socket	0.079 in	2 mm	Crimp	Receptacle			2	Polyamide (PA66) Nylon 6/6 Glass Filled	Latch Lock	Black		Free Hanging (In-Line)	34		0.157 in	4 mm
Molex 0349590348	Female Socket	0.079 in	2 mm	Crimp	Receptacle	-40 °C	105 ░C	3	Polyamide (PA66) Nylon 6/6 Glass Filled	Latch Lock	Gray	Contacts Not Included	Free Hanging (In-Line)	34
Molex 0349590392	Female Socket	0.079 in	2 mm	Crimp	Receptacle	-40 °C	105 ░C	3	Polyamide (PA66) Nylon 6/6 Glass Filled	Latch Lock	Gray		Free Hanging (In-Line)	38	Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

034959 Series

38 Rectangular Connectors - Housings Receptacle Gray 0.079" (2.00mm)
