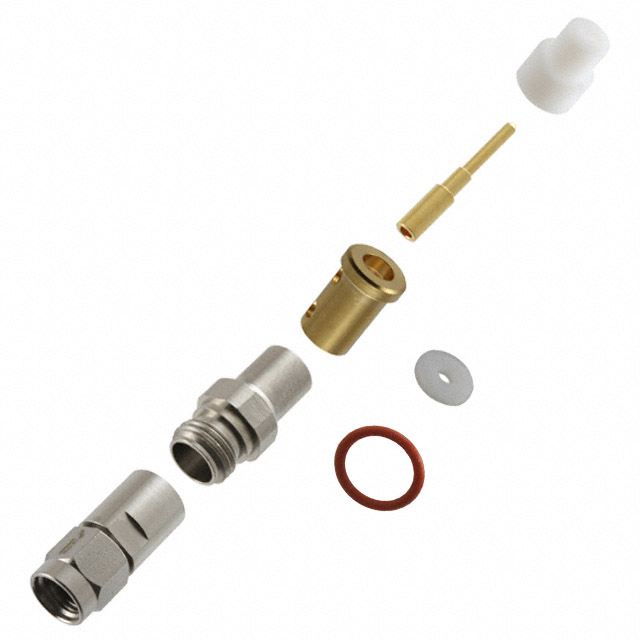

CS-SM-MCA

Obsolete

Crystek Corporation

CONN SMA PLUG STR SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

CS-SM-MCA

Obsolete

Crystek Corporation

CONN SMA PLUG STR SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CS-SM-MCA

Body Material	Stainless Steel
Cable Group	Harbour SS402
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Housing Color	Silver
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Clamp

- Series

Part	Connector Style	Number of Ports	Shield Termination	Connector Type	Body Material	Contact Termination	Cable Group	Mounting Type	Center Contact Material	Housing Color	Center Contact Plating	Dielectric Material	Connector Style	Connector Style	Connector Style
Crystek Corporation CS-NM-MHA	N Type	1	Clamp	Male Pin Plug	Stainless Steel	Solder	Harbour LL142	Free Hanging (In-Line)	Beryllium Copper	Silver	Gold	Polytetrafluoroethylene (PTFE)
Crystek Corporation CS-DM-MJB		1	Clamp	Male Pin Plug	Stainless Steel	Solder	IW 1501	Free Hanging (In-Line)	Beryllium Copper	Silver	Gold	Polyphenylene Oxide (PPO) Polystyrene (PS)	OS-50	2.4 mm	APC-2.4
Crystek Corporation CS-TM-MSD	TNCA	1	Clamp	Male Pin Plug	Stainless Steel	Solder	Semflex LA290	Free Hanging (In-Line)	Beryllium Copper	Silver	Gold	Polytetrafluoroethylene (PTFE)
Crystek Corporation CS-FF-MJB		1	Clamp	Female Socket Jack	Stainless Steel	Solder	IW 1501	Free Hanging (In-Line)	Beryllium Copper	Silver	Gold			2.92 mm
Crystek Corporation CS-SF-MSC	SMA	1	Clamp	Female Socket Jack	Stainless Steel	Solder	Semflex HP190	Free Hanging (In-Line)	Beryllium Copper	Silver	Gold	Polytetrafluoroethylene (PTFE)
Crystek Corporation CS-TM-MSC	TNCA	1	Clamp	Male Pin Plug	Stainless Steel	Solder	Semflex HP190	Free Hanging (In-Line)	Beryllium Copper	Silver	Gold	Polyetherimide (PEI)
Crystek Corporation CS-SM-MCA	SMA	1	Clamp	Male Pin Plug	Stainless Steel	Solder	Harbour SS402	Free Hanging (In-Line)	Beryllium Copper	Silver	Gold	Polytetrafluoroethylene (PTFE)
Crystek Corporation CS-NM-MSC	N Type	1	Clamp	Male Pin Plug	Stainless Steel	Solder	Semflex HP190	Free Hanging (In-Line)	Beryllium Copper	Silver	Gold	Polytetrafluoroethylene (PTFE)
Crystek Corporation CS-SF-MHA	SMA	1	Clamp	Female Socket Jack	Stainless Steel	Solder	Harbour LL142	Free Hanging (In-Line)	Beryllium Copper	Silver	Gold	Polyetherimide (PEI)
Crystek Corporation CS-SM-MHA	SMA	1	Clamp	Male Pin Plug	Stainless Steel	Solder	Harbour LL142	Free Hanging (In-Line)	Beryllium Copper	Silver	Gold	Polytetrafluoroethylene (PTFE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

- Series

SMA Connector Plug, Male Pin Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available
