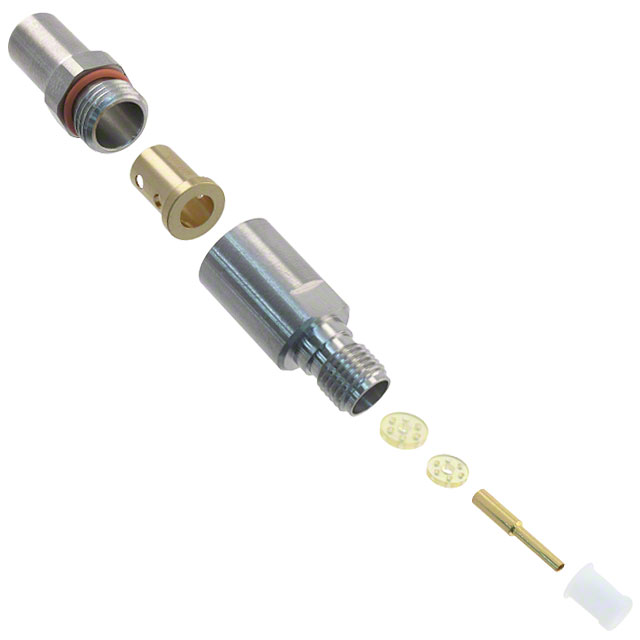

CS-SF-MSC
ObsoleteCrystek Corporation
CONN SMA JACK STR SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS-SF-MSC
ObsoleteCrystek Corporation
CONN SMA JACK STR SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS-SF-MSC |
|---|---|
| Body Material | Stainless Steel |
| Cable Group | Semflex HP190 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Housing Color | Silver |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Clamp |
- Series
| Part | Connector Style | Number of Ports | Shield Termination | Connector Type | Body Material | Contact Termination | Cable Group | Mounting Type | Center Contact Material | Housing Color | Center Contact Plating | Dielectric Material | Connector Style | Connector Style | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Crystek Corporation | N Type | 1 | Clamp | Male Pin Plug | Stainless Steel | Solder | Harbour LL142 | Free Hanging (In-Line) | Beryllium Copper | Silver | Gold | Polytetrafluoroethylene (PTFE) | |||
Crystek Corporation | 1 | Clamp | Male Pin Plug | Stainless Steel | Solder | IW 1501 | Free Hanging (In-Line) | Beryllium Copper | Silver | Gold | Polyphenylene Oxide (PPO) Polystyrene (PS) | OS-50 | 2.4 mm | APC-2.4 | |
Crystek Corporation | TNCA | 1 | Clamp | Male Pin Plug | Stainless Steel | Solder | Semflex LA290 | Free Hanging (In-Line) | Beryllium Copper | Silver | Gold | Polytetrafluoroethylene (PTFE) | |||
Crystek Corporation | 1 | Clamp | Female Socket Jack | Stainless Steel | Solder | IW 1501 | Free Hanging (In-Line) | Beryllium Copper | Silver | Gold | 2.92 mm | ||||
Crystek Corporation | SMA | 1 | Clamp | Female Socket Jack | Stainless Steel | Solder | Semflex HP190 | Free Hanging (In-Line) | Beryllium Copper | Silver | Gold | Polytetrafluoroethylene (PTFE) | |||
Crystek Corporation | TNCA | 1 | Clamp | Male Pin Plug | Stainless Steel | Solder | Semflex HP190 | Free Hanging (In-Line) | Beryllium Copper | Silver | Gold | Polyetherimide (PEI) | |||
Crystek Corporation | SMA | 1 | Clamp | Male Pin Plug | Stainless Steel | Solder | Harbour SS402 | Free Hanging (In-Line) | Beryllium Copper | Silver | Gold | Polytetrafluoroethylene (PTFE) | |||
Crystek Corporation | N Type | 1 | Clamp | Male Pin Plug | Stainless Steel | Solder | Semflex HP190 | Free Hanging (In-Line) | Beryllium Copper | Silver | Gold | Polytetrafluoroethylene (PTFE) | |||
Crystek Corporation | SMA | 1 | Clamp | Female Socket Jack | Stainless Steel | Solder | Harbour LL142 | Free Hanging (In-Line) | Beryllium Copper | Silver | Gold | Polyetherimide (PEI) | |||
Crystek Corporation | SMA | 1 | Clamp | Male Pin Plug | Stainless Steel | Solder | Harbour LL142 | Free Hanging (In-Line) | Beryllium Copper | Silver | Gold | Polytetrafluoroethylene (PTFE) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
- Series
SMA Connector Jack, Female Socket Free Hanging (In-Line) Solder
