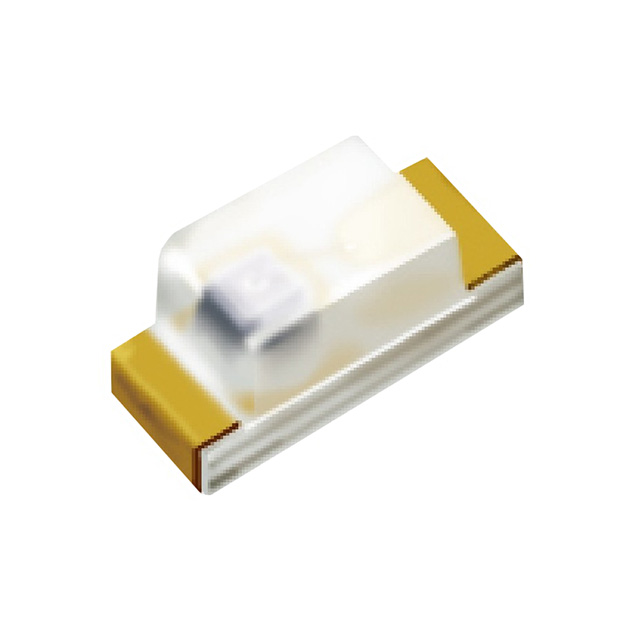

EAST1608GA0

Obsolete

Everlight Electronics Co Ltd

LED YLW-GRN CLEAR 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EAST1608GA0

Obsolete

Everlight Electronics Co Ltd

LED YLW-GRN CLEAR 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EAST1608GA0

Color	Yellow-Green
Configuration	Standard
Current - Test	5 mA
Height (Max) [Max]	0.9 mm
Lens Color	Colorless
Lens Size [x]	1.2 mm
Lens Size [y]	0.8 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	20 mcd
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Supplier Device Package	2-SMD
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Dominant	574 nm
Wavelength - Peak	575 nm

EAST1608 Series

Part	Lens Color	Lens Size [y]	Lens Size [x]	Package / Case	Supplier Device Package	Configuration	Height (Max) [Max]	Viewing Angle	Lens Transparency	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Lens Style	Wavelength - Dominant	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Color	Wavelength - Peak	Current - Test	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Height (Max) [Max] [z]
Everlight Electronics Co Ltd EAST1608YA2	Colorless	0.8 mm	1.2 mm	0603 (1608 Metric)	2-SMD	Standard	0.9 mm	100 °	Clear	79 mcd	2 V	Rectangle with Flat Top	590 nm	Surface Mount	1.6 mm	0.8 mm	Yellow	591 nm	20 mA
Everlight Electronics Co Ltd EAST1608YA1	Colorless	0.8 mm	1.2 mm	0603 (1608 Metric)	2-SMD	Standard	0.9 mm	100 °	Clear	79 mcd	2.05 V	Rectangle with Flat Top	589 nm	Surface Mount	1.6 mm	0.8 mm	Yellow	591 nm	20 mA
Everlight Electronics Co Ltd EAST1608RA6	Colorless	0.8 mm	1.2 mm	0603 (1608 Metric)	2-SMD	Standard	0.9 mm	100 °	Clear	56 mcd	2 V	Rectangle with Flat Top	624 nm	Surface Mount	1.6 mm	0.8 mm	Red	632 nm	20 mA
Everlight Electronics Co Ltd EAST1608AA1	Colorless	0.8 mm	1.2 mm	0603 (1608 Metric)	2-SMD	Standard	0.9 mm	100 °	Clear	126 mcd	2.05 V	Rectangle with Flat Top	607 nm	Surface Mount	1.6 mm	0.8 mm		611 nm	20 mA
Everlight Electronics Co Ltd EAST1608RA3	Colorless	0.8 mm	1.2 mm	0603 (1608 Metric)	2-SMD	Standard	0.9 mm	100 °	Clear	63 mcd	2.05 V	Rectangle with Flat Top	632 nm	Surface Mount	1.6 mm	0.8 mm	Red	639 nm	20 mA
Everlight Electronics Co Ltd EAST1608YA0	Colorless	0.8 mm	1.2 mm	0603 (1608 Metric)	2-SMD	Standard	0.9 mm	100 °	Clear	20 mcd	2 V	Rectangle with Flat Top	590 nm	Surface Mount	1.6 mm	0.8 mm	Yellow	591 nm	5 mA
Everlight Electronics Co Ltd EAST1608RGA2	Colorless	0.8 mm	1.6 mm	0603 (1608 Metric)	2-SMD	Independent		120 °	Clear	50 mcd 79 mcd		Rectangle with Flat Top	572 nm 621 nm	Surface Mount	1.6 mm	0.8 mm	Green Red		20 mA 20 mA	575 nm	632 nm	2 V	2 V	0.5 mm
Everlight Electronics Co Ltd EAST1608GA0	Colorless	0.8 mm	1.2 mm	0603 (1608 Metric)	2-SMD	Standard	0.9 mm	100 °	Clear	20 mcd	2 V	Rectangle with Flat Top	574 nm	Surface Mount	1.6 mm	0.8 mm	Yellow-Green	575 nm	5 mA
Everlight Electronics Co Ltd EAST1608RA1	Colorless	0.8 mm	1.2 mm	0603 (1608 Metric)	2-SMD	Standard	0.9 mm	100 °	Clear	79 mcd	2 V	Rectangle with Flat Top	626 nm	Surface Mount	1.6 mm	0.8 mm	Red	632 nm	20 mA
Everlight Electronics Co Ltd EAST1608RA5	Colorless	0.8 mm	1.2 mm	0603 (1608 Metric)	2-SMD	Standard	0.9 mm	100 °	Clear	27 mcd	2 V	Rectangle with Flat Top	639 nm	Surface Mount	1.6 mm	0.8 mm	Red	650 nm	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EAST1608 Series

Yellow-Green 574nm LED Indication - Discrete 2V 0603 (1608 Metric)
