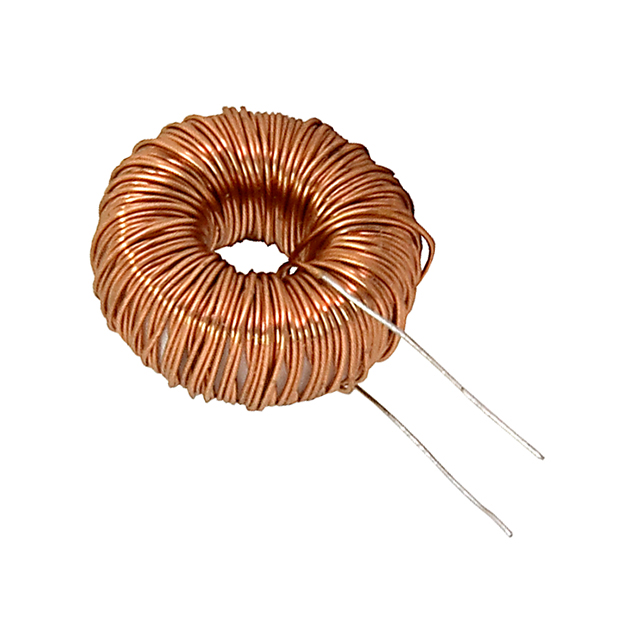

DSO1-40-0003

Active

SCHURTER Inc.

CMC 4A 2LN TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

CMC 4A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Number of Lines	Voltage Rating - DC	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)	DC Resistance (DCR) (Max) [Max]	Filter Type	Approval Agency	Height (Max) [Max]	Height (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case
SCHURTER Inc. DSO1-175-0005	7 mm	15 mm	0.276 in	0.591 in	Through Hole	2	600 V	Radial	125 °C	-40 °C	3 A	20 mOhm
SCHURTER Inc. DSO1-40-0003	14 mm	39 mm	0.551 in	1.535 in	Through Hole	2	600 V	Radial	125 °C	-40 °C	4 A		55 mOhm
SCHURTER Inc. DSO1-20-0001	8.5 mm	19 mm	0.335 in	0.748 in	Through Hole	2	600 V	Radial	125 °C	-40 °C	630 mA		750 mOhm
SCHURTER Inc. DSO1-175-0002	7 mm	15 mm	0.276 in	0.591 in	Through Hole	2	600 V	Radial	125 °C	-40 °C	630 mA		550 mOhm
SCHURTER Inc. DSO1-30-0004	11 mm	26 mm	0.433 in	1.024 in	Through Hole	2	600 V	Radial	125 °C	-40 °C	4 A		40 mOhm
SCHURTER Inc. DSO1-175-0003	7 mm	15 mm	0.276 in	0.591 in	Through Hole	2	600 V	Radial	125 °C	-40 °C	1 A		200 mOhm
SCHURTER Inc. DSO1-48-0001	18 mm	43 mm	0.709 "	1.693 in	Through Hole	2	600 V	Radial	125 °C	-40 °C	3.15 A		180 mOhm
SCHURTER Inc. DSO1-25-0001					Through Hole	2	600 V	Radial	125 °C	-40 °C	1.4 A		200 mOhm
SCHURTER Inc. DSO1-48-0003					Through Hole	2	600 V	No Base Vertical	125 °C	-40 °C	5 A		75 mOhm	Power Line	IEC UL	1.693 in	43 mm	43 mm	1.693 in	2 Lead
SCHURTER Inc. DSO1-48-0002	18 mm	43 mm	0.709 "	1.693 in	Through Hole	2	600 V	Radial	125 °C	-40 °C	4 A		90 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Line Common Mode Choke Through Hole 4A DCR 55mOhm

Technical documentation and resources
