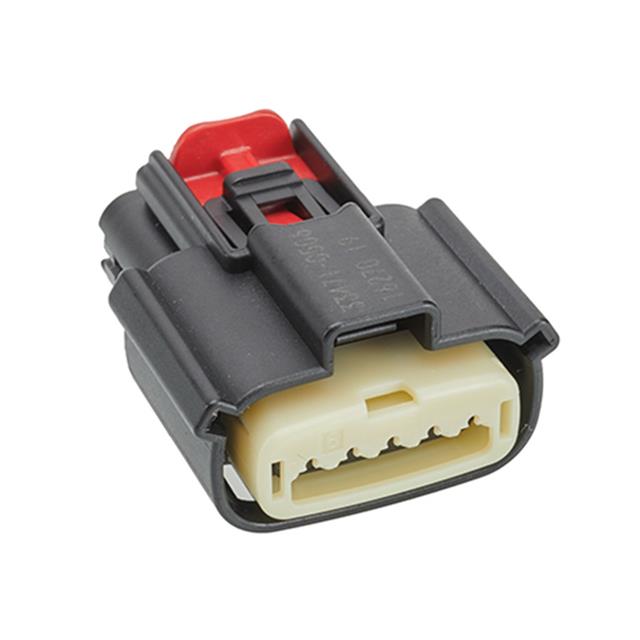

0334710539

Active

Molex

CONN RCPT HSG 5POS 3.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMX150 Series Datasheet

0334710539

Active

Molex

CONN RCPT HSG 5POS 3.50MM

Deep-Dive with AI

DocumentsMX150 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0334710539

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polyester
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in

033471 Series

Part	Fastening Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Rows	Color	Pitch [x]	Pitch [x]	Insulation Material	Connector Type	Number of Positions	Contact Termination	Note	Features
Molex 0334710340
Molex 0334710464	Latch Holder	Female Socket	125 °C	-40 °C	Free Hanging (In-Line)	1	Gray	3.5 mm	0.138 in	Polyester	Receptacle	4	Crimp	Contacts Not Included
Molex 0334716001	Latch Holder	Female Socket			Free Hanging (In-Line)	1	Black	3.5 mm	0.138 in		Receptacle	6	Crimp	Contacts Not Included	Sealed
Molex 0334710463	Latch Holder	Female Socket	125 °C	-40 °C	Free Hanging (In-Line)	1	Gray	3.5 mm	0.138 in	Polyester	Receptacle	4	Crimp	Contacts Not Included
Molex 0334710207	Latch Holder	Female Socket			Free Hanging (In-Line)	1	Black	3.5 mm	0.138 in	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Receptacle	2	Crimp	Contacts Not Included	Sealed
Molex 0334713343	Latch Holder	Female Socket			Free Hanging (In-Line)	1	Gray	3.5 mm	0.138 in		Receptacle		Crimp	Contacts Not Included	Sealed
Molex 0334710201	Latch Holder	Female Socket	125 °C	-40 °C	Free Hanging (In-Line)	1	Black	3.5 mm	0.138 in	Polyester	Receptacle	2	Crimp	Contacts Not Included	Sealed
Molex 0334710601	Latch Holder	Female Socket			Free Hanging (In-Line)	1	Black	3.5 mm	0.138 in		Receptacle	6	Crimp	Contacts Not Included	Sealed
Molex 0334710209	Latch Holder	Female Socket	125 °C	-40 °C	Free Hanging (In-Line)	1	Gray	3.5 mm	0.138 in	Polyester	Receptacle	2	Crimp	Contacts Not Included	Sealed
Molex 0334710539	Latch Holder	Female Socket	125 °C	-40 °C	Free Hanging (In-Line)	1	Gray	3.5 mm	0.138 in	Polyester	Receptacle		Crimp	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.19
		10	$ 2.81
		100	$ 2.24
		1120	$ 1.85
		2800	$ 1.73

Description

General part information

033471 Series

5 Rectangular Connectors - Housings Receptacle Gray 0.138" (3.50mm)

Documents

Technical documentation and resources

MX150 Series

Datasheet
