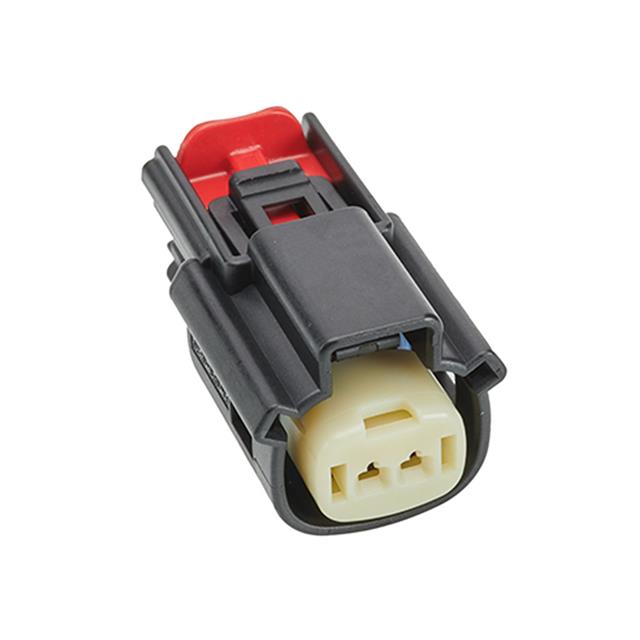

0334710209
ActiveMolex
CONN RCPT HSG 2POS 3.50MM
Deep-Dive with AI
Search across all available documentation for this part.
0334710209
ActiveMolex
CONN RCPT HSG 2POS 3.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0334710209 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Features | Sealed |
| Insulation Material | Polyester |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
033471 Series
| Part | Fastening Type | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Rows | Color | Pitch [x] | Pitch [x] | Insulation Material | Connector Type | Number of Positions | Contact Termination | Note | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | |||||||||||||||
Molex | Latch Holder | Female Socket | 125 °C | -40 °C | Free Hanging (In-Line) | 1 | Gray | 3.5 mm | 0.138 in | Polyester | Receptacle | 4 | Crimp | Contacts Not Included | |
Molex | Latch Holder | Female Socket | Free Hanging (In-Line) | 1 | Black | 3.5 mm | 0.138 in | Receptacle | 6 | Crimp | Contacts Not Included | Sealed | |||
Molex | Latch Holder | Female Socket | 125 °C | -40 °C | Free Hanging (In-Line) | 1 | Gray | 3.5 mm | 0.138 in | Polyester | Receptacle | 4 | Crimp | Contacts Not Included | |
Molex | Latch Holder | Female Socket | Free Hanging (In-Line) | 1 | Black | 3.5 mm | 0.138 in | Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS) | Receptacle | 2 | Crimp | Contacts Not Included | Sealed | ||
Molex | Latch Holder | Female Socket | Free Hanging (In-Line) | 1 | Gray | 3.5 mm | 0.138 in | Receptacle | Crimp | Contacts Not Included | Sealed | ||||
Molex | Latch Holder | Female Socket | 125 °C | -40 °C | Free Hanging (In-Line) | 1 | Black | 3.5 mm | 0.138 in | Polyester | Receptacle | 2 | Crimp | Contacts Not Included | Sealed |
Molex | Latch Holder | Female Socket | Free Hanging (In-Line) | 1 | Black | 3.5 mm | 0.138 in | Receptacle | 6 | Crimp | Contacts Not Included | Sealed | |||
Molex | Latch Holder | Female Socket | 125 °C | -40 °C | Free Hanging (In-Line) | 1 | Gray | 3.5 mm | 0.138 in | Polyester | Receptacle | 2 | Crimp | Contacts Not Included | Sealed |
Molex | Latch Holder | Female Socket | 125 °C | -40 °C | Free Hanging (In-Line) | 1 | Gray | 3.5 mm | 0.138 in | Polyester | Receptacle | Crimp | Contacts Not Included |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.48 | |
| 10 | $ 2.11 | |||
| 100 | $ 1.74 | |||
| 1400 | $ 1.38 | |||
| 2800 | $ 1.28 | |||
Description
General part information
033471 Series
2 Rectangular Connectors - Housings Receptacle Gray 0.138" (3.50mm)
