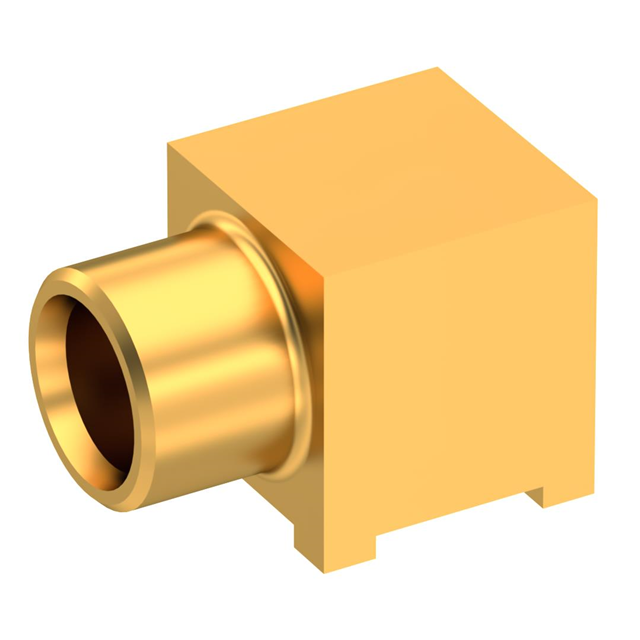

R213664800
ActiveRadiall USA, Inc.
MCX / RIGHT ANGLE JACK RECEPTACL
Deep-Dive with AI
Search across all available documentation for this part.
R213664800
ActiveRadiall USA, Inc.
MCX / RIGHT ANGLE JACK RECEPTACL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R213664800 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 75 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 21.28 | |
| 10 | $ 18.64 | |||
| 25 | $ 17.83 | |||
| 50 | $ 17.26 | |||
| Digi-Reel® | 1 | $ 21.28 | ||
| 10 | $ 18.64 | |||
| 25 | $ 17.83 | |||
| 50 | $ 17.26 | |||
| Tape & Reel (TR) | 100 | $ 16.68 | ||
| 300 | $ 15.76 | |||
| 500 | $ 15.30 | |||
Description
General part information
R21366 Series
MCX Connector Receptacle, Female Socket 75 Ohms Surface Mount, Right Angle Solder
Documents
Technical documentation and resources
No documents available
