84-8001.2640

Active

EAO

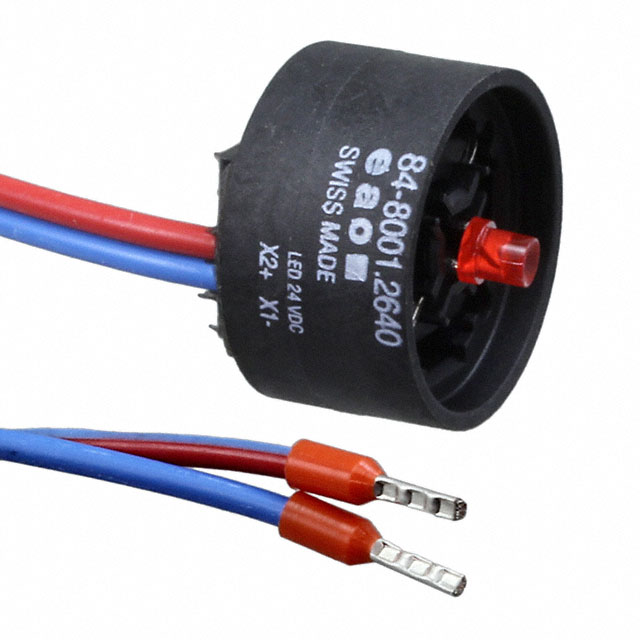

INDICATOR PANEL LED RED 24V

Search across all available documentation for this part.

Active

EAO

INDICATOR PANEL LED RED 24V

Technical Specifications

Parameters and characteristics for this part

Industrial Panel Mount Indicators / Switch Indicators LENS CAP RND RED

Part	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Termination Style	Termination Style	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Type	Voltage Rating - AC	Actuator Type	Voltage Rating - DC	Switch Function	Electrical Life	Ingress Protection	Current Rating (Amps)	Requires	Contact Rating @ Voltage	(Select First, Then Apply Filters) Compatible Series	Lamp Color	Ratings	Lens Color	Voltage	Current
EAO 84-6821.2B20	Panel Mount Front	SPST-NC	65 °C	-25 °C	0.11 in	Quick Connect Solder	2.8 mm	LED Red	22.3 mm	Illuminated Standard	120 V	Button Mushroom Round	24 V	On-Off	50000 Cycles	IP65 - Dust Tight Water Resistant	2 A 3 A
EAO 84-8511.2620		SPST-NO				Quick Connect - 0.110" (2.8mm)												Switch Body	0.1 A 42 VAC/DC	84 EAO
EAO 84-8511.9340		SPST-NO																Switch Body	0.1 A 42 VAC/DC	84 EAO
EAO 84-8511.4640		SPST-NO																Switch Body	0.1 A 42 VAC/DC	84 EAO
EAO 84-8001.6620						Plug In				LED											Blue	DC	Blue	24 V	10 mA
EAO 84-8001.9620						Plug In				LED											White	DC		24 V	10 mA
EAO 84-8001.2640						Wire Leads				LED											Red	DC	Red	24 V	10 mA
EAO 84-8512.5840		SPST-NO																Switch Body	0.1 A 42 VAC/DC	84 EAO
EAO 84-8511.6320		SPST-NO				Quick Connect - 0.110" (2.8mm)												Switch Body	0.1 A 42 VAC/DC	84 EAO
EAO 84-8511.9620		SPST-NO				Quick Connect - 0.110" (2.8mm)												Switch Body	0.1 A 42 VAC/DC	84 EAO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Industrial Panel Mount Indicators / Switch Indicators LENS CAP RND RED
