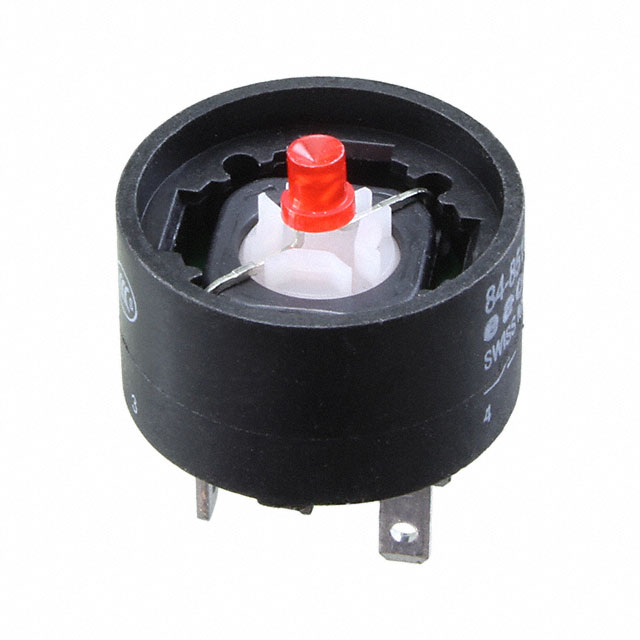

84-8511.2620

Active

EAO

CONTACT BLOCK SPST-NO 0.1A 42V

Search across all available documentation for this part.

Active

EAO

CONTACT BLOCK SPST-NO 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	84-8511.2620

(Select First, Then Apply Filters) Compatible Series	EAO, 84
Circuit	SPST-NO
Contact Rating @ Voltage	42 VAC/DC, 0.1 A
Requires	Switch Body
Termination Style	Quick Connect - 0.110" (2.8mm)

Industrial Panel Mount Indicators / Switch Indicators LENS CAP RND RED

Part	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Termination Style	Termination Style	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Type	Voltage Rating - AC	Actuator Type	Voltage Rating - DC	Switch Function	Electrical Life	Ingress Protection	Current Rating (Amps)	Requires	Contact Rating @ Voltage	(Select First, Then Apply Filters) Compatible Series	Lamp Color	Ratings	Lens Color	Voltage	Current
EAO 84-6821.2B20	Panel Mount Front	SPST-NC	65 °C	-25 °C	0.11 in	Quick Connect Solder	2.8 mm	LED Red	22.3 mm	Illuminated Standard	120 V	Button Mushroom Round	24 V	On-Off	50000 Cycles	IP65 - Dust Tight Water Resistant	2 A 3 A
EAO 84-8511.2620		SPST-NO				Quick Connect - 0.110" (2.8mm)												Switch Body	0.1 A 42 VAC/DC	84 EAO
EAO 84-8511.9340		SPST-NO																Switch Body	0.1 A 42 VAC/DC	84 EAO
EAO 84-8511.4640		SPST-NO																Switch Body	0.1 A 42 VAC/DC	84 EAO
EAO 84-8001.6620						Plug In				LED											Blue	DC	Blue	24 V	10 mA
EAO 84-8001.9620						Plug In				LED											White	DC		24 V	10 mA
EAO 84-8001.2640						Wire Leads				LED											Red	DC	Red	24 V	10 mA
EAO 84-8512.5840		SPST-NO																Switch Body	0.1 A 42 VAC/DC	84 EAO
EAO 84-8511.6320		SPST-NO				Quick Connect - 0.110" (2.8mm)												Switch Body	0.1 A 42 VAC/DC	84 EAO
EAO 84-8511.9620		SPST-NO				Quick Connect - 0.110" (2.8mm)												Switch Body	0.1 A 42 VAC/DC	84 EAO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Industrial Panel Mount Indicators / Switch Indicators LENS CAP RND RED
