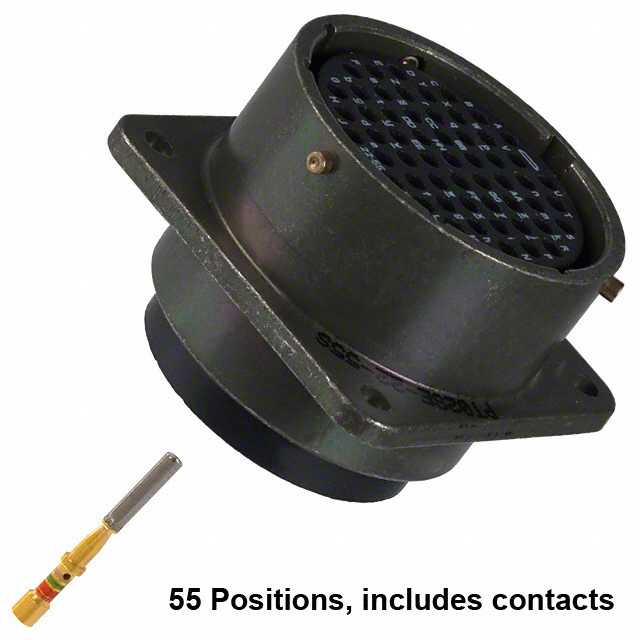

PT02SE-22-55S(025)

Active

Amphenol Industrial Operations

CONN RCPT FMALE 55POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

PT02SE-22-55S(025)

Active

Amphenol Industrial Operations

CONN RCPT FMALE 55POS GOLD CRIMP

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT02SE-22-55S(025)

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Black Zinc Cobalt, Aluminum
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Sealed
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	55 positions
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Black Zinc Cobalt
Shell Material	Aluminum
Shell Size - Insert [Max]	55
Shell Size - Insert [Min]	22
Shielding	Unshielded
Termination	Crimp

PT02SE Series

Part	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Orientation	Contact Material	Backshell Material, Plating	Current Rating (Amps)	Shell Finish	Termination	Primary Material	Insert Material	Mounting Feature	Qualification	Shell Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Color	Ingress Protection	Contact Finish - Mating	Applications	Shielding	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Type	Note	Shell Size - Insert	Contact Type	Contact Shape	Housing Color	Contact Size	Number of Positions	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]
Amphenol Industrial Operations PT02SE-14-18S	Bayonet Lock	-55 °C	125 °C	18	Receptacle Female Sockets	N	Copper Alloy	Aluminum Olive Drab Cadmium	7.5 A	Olive Drab Chromate over Cadmium	Crimp	Metal	Neoprene	Flange	MIL-DTL-26482 Series I	Aluminum	14	18	Olive Drab	Environment Sealed	Gold	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded
Amphenol Industrial Operations PT02SE-24-61P(025)	Bayonet Lock	-55 °C	125 °C	61	Male Pins Receptacle	N	Copper Alloy	Aluminum Black Zinc Cobalt	7.5 A	Black Zinc Cobalt	Crimp	Metal	Neoprene	Flange	MIL-DTL-26482 Series I	Aluminum	24	61	Black	Environment Sealed	Gold	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded
Amphenol Industrial Operations PT02SE-12-10S(025)	Bayonet Lock	-55 °C	125 °C	10	Receptacle Female Sockets	N	Copper Alloy	Aluminum Black Zinc Cobalt	7.5 A	Black Zinc Cobalt	Crimp	Metal	Neoprene	Flange	MIL-DTL-26482 Series I	Aluminum			Black	Environment Sealed	Gold	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded
Amphenol Industrial Operations PT02SE-24-61SW	Bayonet Lock	-55 °C	125 °C	61	Receptacle Female Sockets	W	Copper Alloy			Olive Drab Chromate over Cadmium	Crimp	Metal	Neoprene	Flange	MIL-DTL-26482 Series I	Aluminum	24	61	Olive Drab	Environment Sealed	Gold	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded
Amphenol Industrial Operations PT02SE14-19S-027	Bayonet Lock	-55 °C	125 °C	19	Receptacle Female Sockets	N	Copper Alloy	Aluminum Black Zinc Cobalt		Black Zinc Cobalt	Crimp	Metal	Neoprene	Flange	MIL-DTL-26482 Series I	Aluminum			Black	Environment Resistant	Gold	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Unshielded	19	14
Amphenol Industrial Operations PT02SE-12-3SLC	Bayonet Lock	-55 °C	125 °C		Receptacle Housing	N				Chromate over Cadmium			Neoprene	Flange	MIL-DTL-26482 Series I	Aluminum				Environment Resistant			Unshielded			For Female Sockets	Contacts Not Included	12-3	Crimp	Circular	Olive Drab	16
Amphenol Industrial Operations PT02SE-16-8P(025)	Bayonet Lock	-55 °C	125 °C	8	Male Pins Receptacle	N	Copper Alloy	Aluminum Black Zinc Cobalt	13 A	Black Zinc Cobalt	Crimp	Metal	Neoprene	Flange	MIL-DTL-26482 Series I	Aluminum			Black	Environment Sealed	Gold	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded
Amphenol Industrial Operations PT02SE-20-16S	Bayonet Lock	-55 °C	125 °C		Receptacle Female Sockets	N	Copper Alloy	Aluminum Olive Drab Cadmium	13 A	Olive Drab Chromate over Cadmium	Crimp	Metal	Neoprene	Flange	MIL-DTL-26482 Series I	Aluminum			Olive Drab	Environment Sealed	Gold	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded										16	20	16
Amphenol Industrial Operations PT02SE-22-21P	Bayonet Lock	-55 °C	125 °C	21	Male Pins Receptacle	N	Copper Alloy	Aluminum Olive Drab Cadmium		Olive Drab Chromate over Cadmium	Crimp	Metal	Neoprene	Flange	MIL-DTL-26482 Series I	Aluminum	22	21	Olive Drab	Environment Sealed	Gold	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded
Amphenol Industrial Operations PT02SE-22-55S(025)	Bayonet Lock	-55 °C	125 °C	55 positions	Receptacle Female Sockets	N	Copper Alloy	Aluminum Black Zinc Cobalt	7.5 A	Black Zinc Cobalt	Crimp	Metal	Neoprene	Flange	MIL-DTL-26482 Series I	Aluminum	22	55	Black	Environment Sealed	Gold	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 192.04
		10	$ 177.96

Description

General part information

PT02SE Series

55 Position Circular Connector Receptacle, Female Sockets Crimp
