PT02SE-12-10S(025)
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 10POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
PT02SE-12-10S(025)
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 10POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PT02SE-12-10S(025) |
|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Backshell Material, Plating | Black Zinc Cobalt, Aluminum |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Sealed |
| Insert Material | Neoprene |
| Mounting Feature | Flange |
| Number of Positions | 10 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series I |
| Shell Finish | Black Zinc Cobalt |
| Shell Material | Aluminum |
| Shielding | Unshielded |
| Termination | Crimp |
PT02SE Series
| Part | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Connector Type | Orientation | Contact Material | Backshell Material, Plating | Current Rating (Amps) | Shell Finish | Termination | Primary Material | Insert Material | Mounting Feature | Qualification | Shell Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Color | Ingress Protection | Contact Finish - Mating | Applications | Shielding | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Type | Note | Shell Size - Insert | Contact Type | Contact Shape | Housing Color | Contact Size | Number of Positions | Shell Size - Insert [Max] [diameter] | Shell Size - Insert [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | Bayonet Lock | -55 °C | 125 °C | 18 | Receptacle Female Sockets | N | Copper Alloy | Aluminum Olive Drab Cadmium | 7.5 A | Olive Drab Chromate over Cadmium | Crimp | Metal | Neoprene | Flange | MIL-DTL-26482 Series I | Aluminum | 14 | 18 | Olive Drab | Environment Sealed | Gold | Aerospace Industrial Instrumentation Mass Transit Military | Unshielded | ||||||||||||
Amphenol Industrial Operations | Bayonet Lock | -55 °C | 125 °C | 61 | Male Pins Receptacle | N | Copper Alloy | Aluminum Black Zinc Cobalt | 7.5 A | Black Zinc Cobalt | Crimp | Metal | Neoprene | Flange | MIL-DTL-26482 Series I | Aluminum | 24 | 61 | Black | Environment Sealed | Gold | Aerospace Industrial Instrumentation Mass Transit Military | Unshielded | ||||||||||||
Amphenol Industrial Operations | Bayonet Lock | -55 °C | 125 °C | 10 | Receptacle Female Sockets | N | Copper Alloy | Aluminum Black Zinc Cobalt | 7.5 A | Black Zinc Cobalt | Crimp | Metal | Neoprene | Flange | MIL-DTL-26482 Series I | Aluminum | Black | Environment Sealed | Gold | Aerospace Industrial Instrumentation Mass Transit Military | Unshielded | ||||||||||||||
Amphenol Industrial Operations | Bayonet Lock | -55 °C | 125 °C | 61 | Receptacle Female Sockets | W | Copper Alloy | Olive Drab Chromate over Cadmium | Crimp | Metal | Neoprene | Flange | MIL-DTL-26482 Series I | Aluminum | 24 | 61 | Olive Drab | Environment Sealed | Gold | Aerospace Industrial Instrumentation Mass Transit Military | Unshielded | ||||||||||||||
Amphenol Industrial Operations | Bayonet Lock | -55 °C | 125 °C | 19 | Receptacle Female Sockets | N | Copper Alloy | Aluminum Black Zinc Cobalt | Black Zinc Cobalt | Crimp | Metal | Neoprene | Flange | MIL-DTL-26482 Series I | Aluminum | Black | Environment Resistant | Gold | Aerospace Communication Systems Industrial Instrumentation Mass Transit | Unshielded | 19 | 14 | |||||||||||||
Amphenol Industrial Operations | Bayonet Lock | -55 °C | 125 °C | Receptacle Housing | N | Chromate over Cadmium | Neoprene | Flange | MIL-DTL-26482 Series I | Aluminum | Environment Resistant | Unshielded | For Female Sockets | Contacts Not Included | 12-3 | Crimp | Circular | Olive Drab | 16 | ||||||||||||||||
Amphenol Industrial Operations | Bayonet Lock | -55 °C | 125 °C | 8 | Male Pins Receptacle | N | Copper Alloy | Aluminum Black Zinc Cobalt | 13 A | Black Zinc Cobalt | Crimp | Metal | Neoprene | Flange | MIL-DTL-26482 Series I | Aluminum | Black | Environment Sealed | Gold | Aerospace Industrial Instrumentation Mass Transit Military | Unshielded | ||||||||||||||
Amphenol Industrial Operations | Bayonet Lock | -55 °C | 125 °C | Receptacle Female Sockets | N | Copper Alloy | Aluminum Olive Drab Cadmium | 13 A | Olive Drab Chromate over Cadmium | Crimp | Metal | Neoprene | Flange | MIL-DTL-26482 Series I | Aluminum | Olive Drab | Environment Sealed | Gold | Aerospace Industrial Instrumentation Mass Transit Military | Unshielded | 16 | 20 | 16 | ||||||||||||
Amphenol Industrial Operations | Bayonet Lock | -55 °C | 125 °C | 21 | Male Pins Receptacle | N | Copper Alloy | Aluminum Olive Drab Cadmium | Olive Drab Chromate over Cadmium | Crimp | Metal | Neoprene | Flange | MIL-DTL-26482 Series I | Aluminum | 22 | 21 | Olive Drab | Environment Sealed | Gold | Aerospace Industrial Instrumentation Mass Transit Military | Unshielded | |||||||||||||
Amphenol Industrial Operations | Bayonet Lock | -55 °C | 125 °C | 55 positions | Receptacle Female Sockets | N | Copper Alloy | Aluminum Black Zinc Cobalt | 7.5 A | Black Zinc Cobalt | Crimp | Metal | Neoprene | Flange | MIL-DTL-26482 Series I | Aluminum | 22 | 55 | Black | Environment Sealed | Gold | Aerospace Industrial Instrumentation Mass Transit Military | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 74.28 | |
| 10 | $ 68.16 | |||
| 100 | $ 59.86 | |||
Description
General part information
PT02SE Series

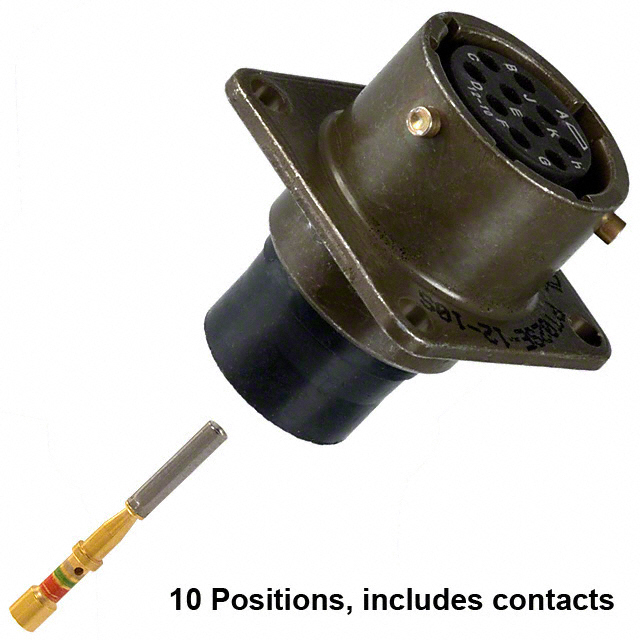

10 Position Circular Connector Receptacle, Female Sockets Crimp
Documents
Technical documentation and resources
