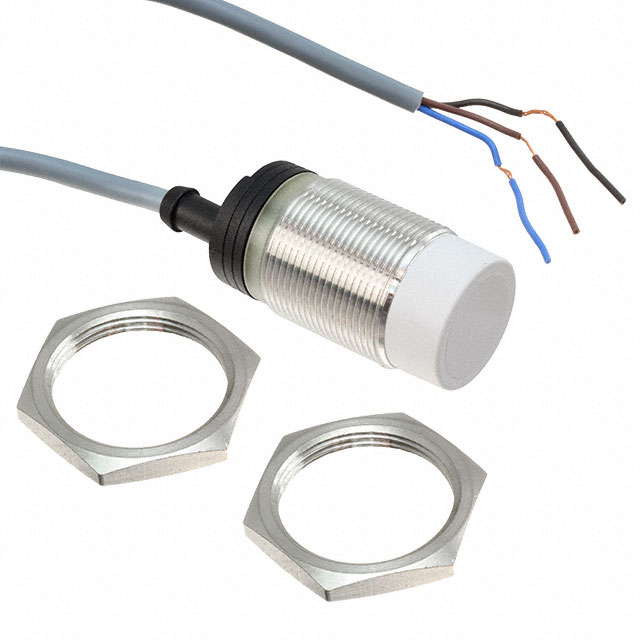

EI3015PPOSS
ActiveCARLO GAVAZZI
SENSOR PROX INDUCTIVE 15MM CYL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EI3015PPOSS
ActiveCARLO GAVAZZI
SENSOR PROX INDUCTIVE 15MM CYL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EI3015PPOSS |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | NEMA 4, NEMA 13, NEMA 1, IP67, NEMA 6, NEMA 3 |
| Material - Body | Stainless Steel |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Response Frequency | 100 Hz |
| Sensing Distance | 15 mm |
| Sensing Distance | 0.591 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply [Max] | 40 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 102.60 | |
| 5 | $ 97.47 | |||
| 10 | $ 94.39 | |||
| 25 | $ 91.31 | |||
Description
General part information
EI3015 Series
SENSOR PROX INDUCTIVE 15MM CYL
Documents
Technical documentation and resources
