EI3015TBCSS
ActiveCARLO GAVAZZI

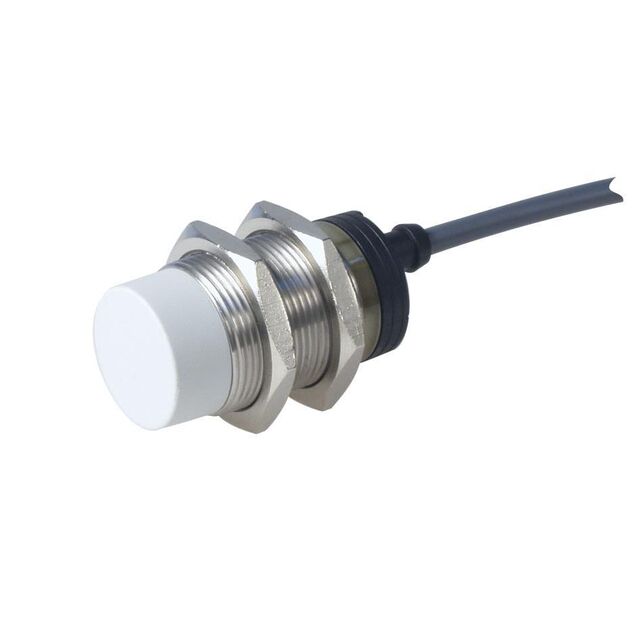

SENSOR PROX INDUCTIVE 15MM CYL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EI3015TBCSS
ActiveCARLO GAVAZZI
SENSOR PROX INDUCTIVE 15MM CYL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EI3015TBCSS |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | NEMA 4, NEMA 13, NEMA 1, IP67, NEMA 6, NEMA 3 |
| Material - Body | Stainless Steel |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | SCR-NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Response Frequency | 25 Hz |
| Sensing Distance | 15 mm |
| Sensing Distance | 0.591 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply [Max] | 250 VAC |
| Voltage - Supply [Min] | 20 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EI3015 Series
SENSOR PROX INDUCTIVE 15MM CYL
Documents
Technical documentation and resources
