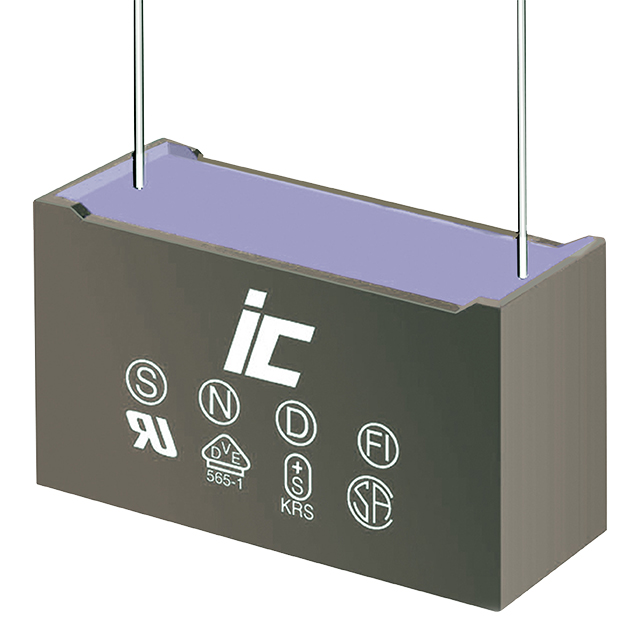

MPX684K305G

Active

Cornell Dubilier Knowles

CAP FILM 0.68UF 10% 305VAC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPX684K305G

Active

Cornell Dubilier Knowles

CAP FILM 0.68UF 10% 305VAC RAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPX684K305G

Applications	EMI, RFI Suppression
Capacitance	680 nF
Dielectric Material	Metallized, Polypropylene (PP)
Features	Long Life, Low ESR, 85C/85% Humidity, Low ESL, THB
Height - Seated (Max) [Max]	0.807 "
Height - Seated (Max) [Max]	20.5 mm
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	1.024 in
Size / Dimension [x]	26 mm
Size / Dimension [y]	11 mm
Size / Dimension [y]	0.433 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	305 V

MPX Series

Part	Voltage Rating - AC	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Termination	Dielectric Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Lead Spacing	Lead Spacing	Tolerance	Applications	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Cornell Dubilier Knowles MPXQS22K	275 V	Radial	0.453 "	11.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	0.512 in	0.197 "	13 mm	5 mm	Through Hole	100 °C	-40 °C	X2	0.394 in	10 mm	10 %	EMI RFI Suppression	0.022 µF
Cornell Dubilier Knowles MPX335K305H	305 V	Radial			85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	1.26 in	0.709 "	32 mm	18 mm	Through Hole	110 °C	-40 °C	X2	1.083 in	27.5 mm	10 %	EMI RFI Suppression	3.3 µF
Cornell Dubilier Knowles MPX103K305D	305 V	Radial	0.453 "	11.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	0.512 in	0.197 "	13 mm	5 mm	Through Hole	110 °C	-40 °C	X2	0.394 in	10 mm	10 %	EMI RFI Suppression	10000 pF
Cornell Dubilier Knowles MPXQP33K	275 V	Radial	0.689 in	17.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	1.043 in	0.335 in	26.5 mm	8.5 mm	Through Hole	100 °C	-40 °C	X2	0.886 in	22.5 mm	10 %	EMI RFI Suppression	0.33 µF
Cornell Dubilier Knowles MPX104K305E	305 V	Radial	0.492 in	12.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	0.709 in	0.236 in	18 mm	6 mm	Through Hole	110 °C	-40 °C	X2	0.591 in	15 mm	10 %	EMI RFI Suppression	100000 pF
Cornell Dubilier Knowles MPXQP22K	275 V	Radial			85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	1.043 in	0.276 in	26.5 mm	7 mm	Through Hole	100 °C	-40 °C	X2	0.886 in	22.5 mm	10 %	EMI RFI Suppression	0.22 µF	17 mm	0.669 in
Cornell Dubilier Knowles MPX154K305E	305 V	Radial	0.492 in	12.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	0.709 in	0.236 in	18 mm	6 mm	Through Hole	110 °C	-40 °C	X2	0.591 in	15 mm	10 %	EMI RFI Suppression	0.15 ÁF
Cornell Dubilier Knowles MPXQW1K	275 V	Radial	1.004 in	25.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	1.26 in	0.551 in	32 mm	14 mm	Through Hole	100 °C	-40 °C	X2	1.083 in	27.5 mm	10 %	EMI RFI Suppression	1 µF
Cornell Dubilier Knowles MPX396K305R	305 V	Radial	1.988 in		85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	2.264 in	1.378 "	57.5 mm	35 mm	Through Hole	110 °C	-40 °C	X2	2.067 in	52.5 mm	10 %	EMI RFI Suppression	39 µF			50.5 mm
Cornell Dubilier Knowles MPX684K305G	305 V	Radial	0.807 "	20.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	1.024 in	0.433 in	26 mm	11 mm	Through Hole	110 °C	-40 °C	X2	0.886 in	22.5 mm	10 %	EMI RFI Suppression	680 nF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.34
		10	$ 0.84
		40	$ 0.66
		80	$ 0.59
		440	$ 0.47
		945	$ 0.44
		2400	$ 0.40
		4900	$ 0.38

Description

General part information

MPX Series

0.68 µF Film Capacitor 305V Polypropylene (PP), Metallized Radial
