MPXQW1K

Obsolete

Cornell Dubilier Knowles

CAP FILM 1UF 10% 275VAC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPXQW1K

Obsolete

Cornell Dubilier Knowles

CAP FILM 1UF 10% 275VAC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPXQW1K

Applications	EMI, RFI Suppression
Capacitance	1 µF
Dielectric Material	Metallized, Polypropylene (PP)
Features	Long Life, Low ESR, 85C/85% Humidity, Low ESL, THB
Height - Seated (Max) [Max]	25.5 mm
Height - Seated (Max) [Max]	1.004 in
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	1.26 in
Size / Dimension [x]	32 mm
Size / Dimension [y]	0.551 in
Size / Dimension [y]	14 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	275 V

MPX Series

Part	Voltage Rating - AC	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Termination	Dielectric Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Lead Spacing	Lead Spacing	Tolerance	Applications	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Cornell Dubilier Knowles MPXQS22K	275 V	Radial	0.453 "	11.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	0.512 in	0.197 "	13 mm	5 mm	Through Hole	100 °C	-40 °C	X2	0.394 in	10 mm	10 %	EMI RFI Suppression	0.022 µF
Cornell Dubilier Knowles MPX335K305H	305 V	Radial			85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	1.26 in	0.709 "	32 mm	18 mm	Through Hole	110 °C	-40 °C	X2	1.083 in	27.5 mm	10 %	EMI RFI Suppression	3.3 µF
Cornell Dubilier Knowles MPX103K305D	305 V	Radial	0.453 "	11.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	0.512 in	0.197 "	13 mm	5 mm	Through Hole	110 °C	-40 °C	X2	0.394 in	10 mm	10 %	EMI RFI Suppression	10000 pF
Cornell Dubilier Knowles MPXQP33K	275 V	Radial	0.689 in	17.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	1.043 in	0.335 in	26.5 mm	8.5 mm	Through Hole	100 °C	-40 °C	X2	0.886 in	22.5 mm	10 %	EMI RFI Suppression	0.33 µF
Cornell Dubilier Knowles MPX104K305E	305 V	Radial	0.492 in	12.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	0.709 in	0.236 in	18 mm	6 mm	Through Hole	110 °C	-40 °C	X2	0.591 in	15 mm	10 %	EMI RFI Suppression	100000 pF
Cornell Dubilier Knowles MPXQP22K	275 V	Radial			85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	1.043 in	0.276 in	26.5 mm	7 mm	Through Hole	100 °C	-40 °C	X2	0.886 in	22.5 mm	10 %	EMI RFI Suppression	0.22 µF	17 mm	0.669 in
Cornell Dubilier Knowles MPX154K305E	305 V	Radial	0.492 in	12.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	0.709 in	0.236 in	18 mm	6 mm	Through Hole	110 °C	-40 °C	X2	0.591 in	15 mm	10 %	EMI RFI Suppression	0.15 ÁF

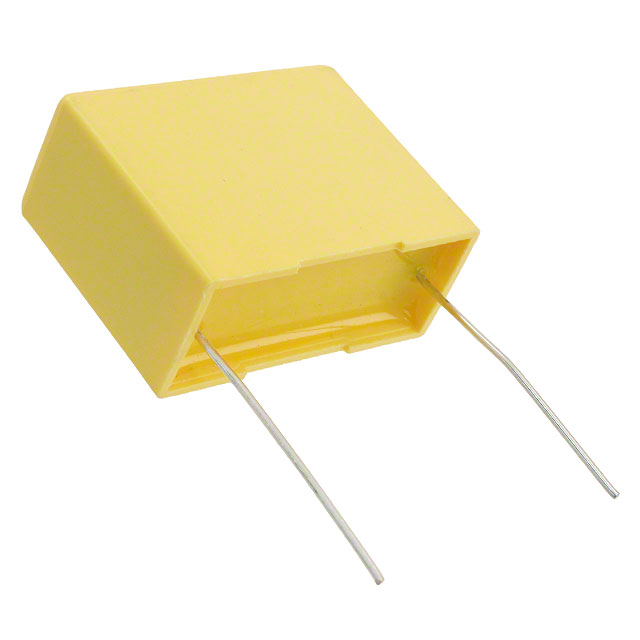

Cornell Dubilier Knowles MPXQW1K	275 V	Radial	1.004 in	25.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	1.26 in	0.551 in	32 mm	14 mm	Through Hole	100 °C	-40 °C	X2	1.083 in	27.5 mm	10 %	EMI RFI Suppression	1 µF
Cornell Dubilier Knowles MPX396K305R	305 V	Radial	1.988 in		85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	2.264 in	1.378 "	57.5 mm	35 mm	Through Hole	110 °C	-40 °C	X2	2.067 in	52.5 mm	10 %	EMI RFI Suppression	39 µF			50.5 mm
Cornell Dubilier Knowles MPX684K305G	305 V	Radial	0.807 "	20.5 mm	85C/85% Humidity Long Life Low ESL Low ESR THB	PC Pins	Metallized Polypropylene (PP)	1.024 in	0.433 in	26 mm	11 mm	Through Hole	110 °C	-40 °C	X2	0.886 in	22.5 mm	10 %	EMI RFI Suppression	680 nF
