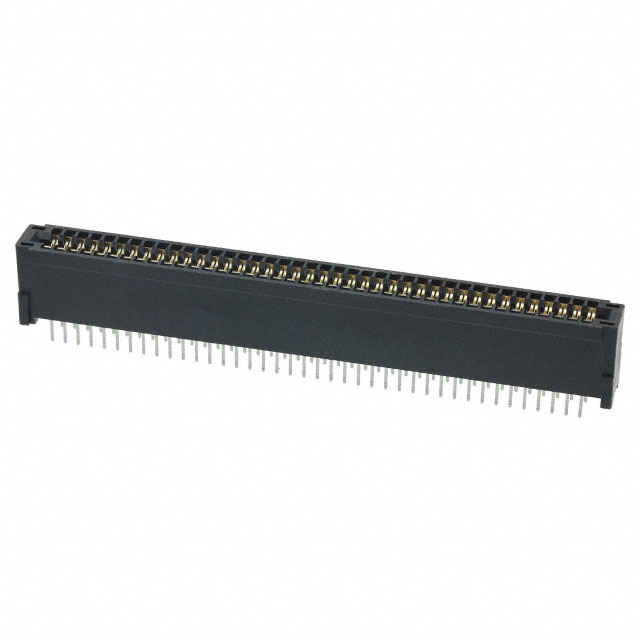

CR22A-80D-2.54DS(70)

LTB

Hirose Electric USA, Inc.

CONN EDGE DUAL FMALE 80POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

CR22A-80D-2.54DS(70)

LTB

Hirose Electric USA, Inc.

CONN EDGE DUAL FMALE 80POS 0.100

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CR22A-80D-2.54DS(70)

Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Material	Copper Alloy
Gender	Female
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Positions	80
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder

CR22 Series

Part	Gender	Card Type	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Mounting Type	Material - Insulation	Termination	Contact Material	Contact Finish	Color	Read Out	Termination Rows	Number of Positions/Bay/Row [custom]
Hirose Electric USA, Inc. CR22B-50D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in	3.3 mm	Flush Mount Top Opening Unthreaded	0.13 "	50	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual
Hirose Electric USA, Inc. CR22A-72D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				72	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual	2	36
Hirose Electric USA, Inc. CR22A-80D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				80	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual
Hirose Electric USA, Inc. CR22-34D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in	3.3 mm	Top Mount Opening Unthreaded	0.128 "	34	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual
Hirose Electric USA, Inc. CR22C-36D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				36	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual
Hirose Electric USA, Inc. CR22A-100D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				100	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual	2	50
Hirose Electric USA, Inc. CR22-60D-2.54DSA(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				60	-30 ░C	85 °C	2	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual	2	30
Hirose Electric USA, Inc. CR22A-50D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				50	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual
Hirose Electric USA, Inc. CR22-80D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				80	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual	2	40
Hirose Electric USA, Inc. CR22A-44D-2.54DSA(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				44	-30 ░C	85 °C	2	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	15	$ 7.06

Description

General part information

CR22 Series

80 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
