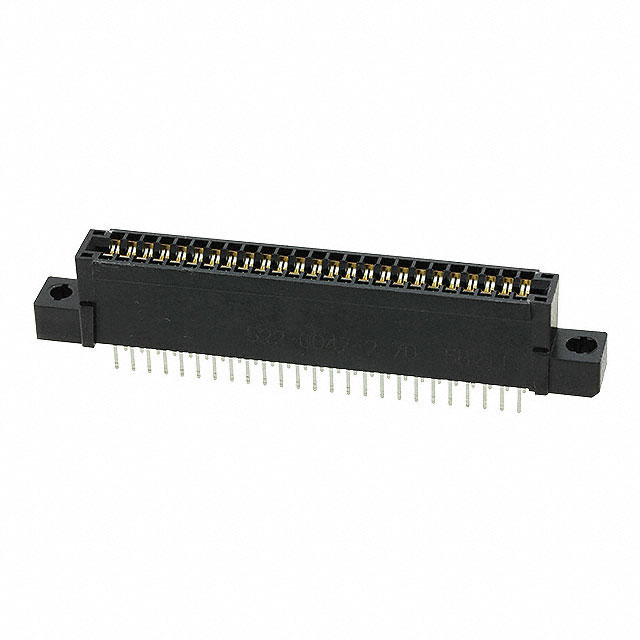

CR22B-50D-2.54DS(70)

Obsolete

Hirose Electric USA, Inc.

CONN EDGE DUAL FMALE 50POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CR22B-50D-2.54DS(70)

Obsolete

Hirose Electric USA, Inc.

CONN EDGE DUAL FMALE 50POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CR22B-50D-2.54DS(70)

Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Material	Copper Alloy
Flange Feature	Unthreaded, Top Opening, Flush Mount
Flange Feature [diameter]	3.3 mm
Flange Feature [diameter]	0.13 "
Gender	Female
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder

CR22 Series

Part	Gender	Card Type	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Mounting Type	Material - Insulation	Termination	Contact Material	Contact Finish	Color	Read Out	Termination Rows	Number of Positions/Bay/Row [custom]
Hirose Electric USA, Inc. CR22B-50D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in	3.3 mm	Flush Mount Top Opening Unthreaded	0.13 "	50	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual
Hirose Electric USA, Inc. CR22A-72D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				72	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual	2	36
Hirose Electric USA, Inc. CR22A-80D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				80	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual
Hirose Electric USA, Inc. CR22-34D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in	3.3 mm	Top Mount Opening Unthreaded	0.128 "	34	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual
Hirose Electric USA, Inc. CR22C-36D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				36	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual
Hirose Electric USA, Inc. CR22A-100D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				100	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual	2	50
Hirose Electric USA, Inc. CR22-60D-2.54DSA(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				60	-30 ░C	85 °C	2	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual	2	30
Hirose Electric USA, Inc. CR22A-50D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				50	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual
Hirose Electric USA, Inc. CR22-80D-2.54DS(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				80	-30 ░C	85 °C	2	Through Hole	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual	2	40
Hirose Electric USA, Inc. CR22A-44D-2.54DSA(70)	Female	Non Specified - Dual Edge	2.54 mm	0.1 in				44	-30 ░C	85 °C	2	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	Solder	Copper Alloy	Gold	Black	Dual
