A15037-112

Active

Laird Technologies - Thermal Materials

THERM PAD 19.05MMX12.7MM 1=1000

Search across all available documentation for this part.

Active

Laird Technologies - Thermal Materials

THERM PAD 19.05MMX12.7MM 1=1000

Technical Specifications

Parameters and characteristics for this part

Part	Outline [x]	Outline [y]	Shape	Material	Color	Thickness	Thickness	Usage	Type	Backing, Carrier	Shelf Life Start	Thermal Conductivity	Thermal Resistivity	Thickness [x]	Thickness [x]	Shelf Life	Thickness [custom]	Thickness [custom]
Laird Technologies - Thermal Materials A15037-002	19.05 mm	12.7 mm	Rectangular	Fiberglass Ceramic Filled	Brown	0.229 mm	0.009 in	TO-220	Die-Cut Pad Sheet	Silicon Rubber
Laird Technologies - Thermal Materials A15037-112	19.05 mm	12.7 mm	Rectangular	Graphite	Gray			TO-220	Graphite-Pad Sheet		Date of Shipment	5 W/m-K	0.07 °C/W	0.005 in	0.127 mm	24 Months
Laird Technologies - Thermal Materials A15037-004	19.05 mm	12.7 mm	Rectangular		White			TO-220	Die-Cut Pad Sheet	Fiberglass		5 W/m-K				24 Months	0.254 mm	0.01 in
Laird Technologies - Thermal Materials A15037-003	19.05 mm	12.7 mm	Rectangular	Polyimide Silicone Rubber Coated	Tan	0.152 mm	0.006 in	TO-220	Die-Cut Pad Sheet							24 Months
Laird Technologies - Thermal Materials A15037-005	19.05 mm	12.7 mm	Rectangular	Polyimide Ceramic Filled	Amber	0.076 mm	0.003 in	TO-220	Insulator Pad Sheet
Laird Technologies - Thermal Materials A15037-101					Brown									0.005 in	0.127 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

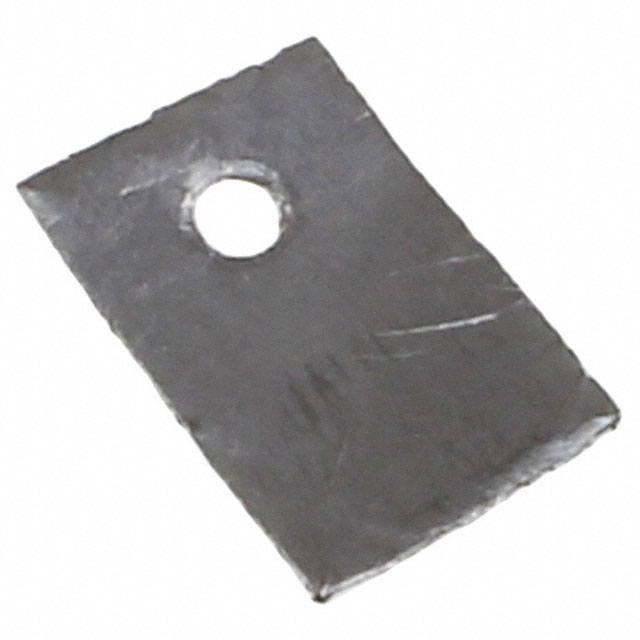

Thermal Pad Gray 19.05mm x 12.70mm Rectangular
