A15037-002

Active

Laird Technologies - Thermal Materials

THERM PAD 19.05MMX12.7MM 1=1000

Search across all available documentation for this part.

Active

Laird Technologies - Thermal Materials

THERM PAD 19.05MMX12.7MM 1=1000

Technical Specifications

Parameters and characteristics for this part

Part	Outline [x]	Outline [y]	Shape	Material	Color	Thickness	Thickness	Usage	Type	Backing, Carrier	Shelf Life Start	Thermal Conductivity	Thermal Resistivity	Thickness [x]	Thickness [x]	Shelf Life	Thickness [custom]	Thickness [custom]
Laird Technologies - Thermal Materials A15037-002	19.05 mm	12.7 mm	Rectangular	Fiberglass Ceramic Filled	Brown	0.229 mm	0.009 in	TO-220	Die-Cut Pad Sheet	Silicon Rubber
Laird Technologies - Thermal Materials A15037-112	19.05 mm	12.7 mm	Rectangular	Graphite	Gray			TO-220	Graphite-Pad Sheet		Date of Shipment	5 W/m-K	0.07 °C/W	0.005 in	0.127 mm	24 Months
Laird Technologies - Thermal Materials A15037-004	19.05 mm	12.7 mm	Rectangular		White			TO-220	Die-Cut Pad Sheet	Fiberglass		5 W/m-K				24 Months	0.254 mm	0.01 in
Laird Technologies - Thermal Materials A15037-003	19.05 mm	12.7 mm	Rectangular	Polyimide Silicone Rubber Coated	Tan	0.152 mm	0.006 in	TO-220	Die-Cut Pad Sheet							24 Months
Laird Technologies - Thermal Materials A15037-005	19.05 mm	12.7 mm	Rectangular	Polyimide Ceramic Filled	Amber	0.076 mm	0.003 in	TO-220	Insulator Pad Sheet
Laird Technologies - Thermal Materials A15037-101					Brown									0.005 in	0.127 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

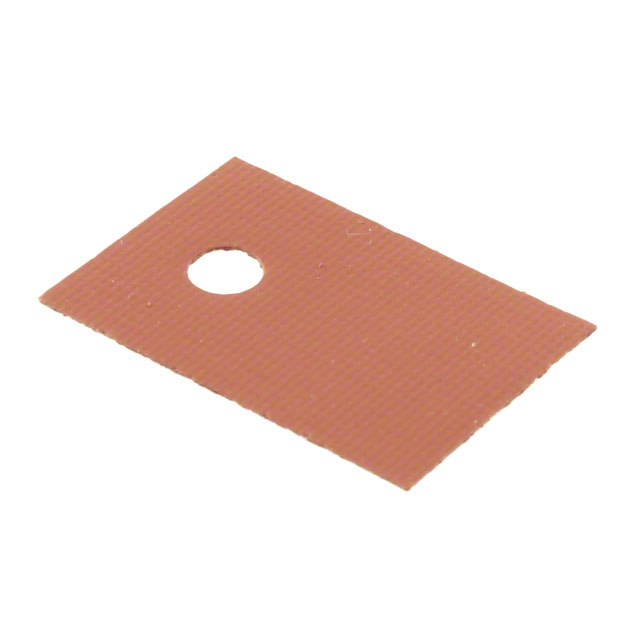

Thermal Pad Brown 19.05mm x 12.70mm Rectangular
