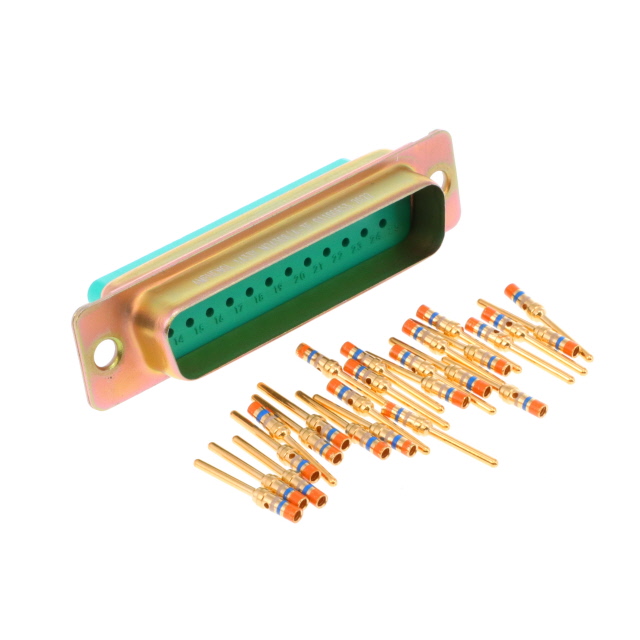

M24308/4-3F

Active

Amphenol Positronic

D SUB CONNECTOR, STANDARD, PLUG, MIL-DTL-24308 SERIES, 25 CONTACTS, DB, CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

M24308/4-3F

Active

Amphenol Positronic

D SUB CONNECTOR, STANDARD, PLUG, MIL-DTL-24308 SERIES, 25 CONTACTS, DB, CRIMP

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/4-3F

Color	Natural
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Cadmium Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Crimp
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	20 AWG

M24308/4 Series

Part	Shell Material, Finish	Wire Gauge [Max]	Wire Gauge [Min]	Number of Positions	Contact Material	Flange Feature	Shell Size, Connector Layout	Shell Size, Connector Layout	Termination	Contact Finish	Contact Type	Connector Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Dielectric Material	Color	Material Flammability Rating	Number of Rows	Primary Material	Note	Mating Cycles	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Features	Voltage Rating
Amphenol Positronic M24308/4-12F	Steel Yellow Cadmium Plated	28 AWG	22 AWG	26	Copper Alloy	Housing/Shell (Unthreaded)	2	(DA A) High Density	Crimp	Gold	Signal	Male Pins Plug	D-Sub High Density	-55 °C	125 °C	5 A	Polyester Glass Filled	Natural	UL94 V-0	3
Amphenol Positronic M24308/4-5F	Steel Yellow Cadmium Plated	26 AWG	20 AWG	50	Copper Alloy	Housing/Shell (Unthreaded)	5		Crimp	Gold	Signal	Male Pins Plug	D-Sub	-55 °C	125 °C	7.5 A	Polyester Glass Filled	Natural	UL94 V-0	3	Metal
Amphenol Positronic M24308/4-259Z	Steel Yellow Chromate Plated Zinc			9		Housing/Shell (Unthreaded)					Signal	Plug for Male Contacts	D-Sub	-55 °C	125 °C		Diallyl Phthalate (DAP)	Black		2		Contacts Not Included	500	Free Hanging (In-Line)	DE E	1
Amphenol Positronic M24308/4-14F	Steel Yellow Cadmium Plated	28 AWG	22 AWG	62	Copper Alloy	Housing/Shell (Unthreaded)	4		Crimp	Gold	Signal	Male Pins Plug	D-Sub High Density	-55 °C	125 °C	5 A	Polyester Glass Filled	Natural	UL94 V-0	3
Amphenol Positronic M24308/4-1F	Steel Yellow Cadmium Plated	26 AWG	20 AWG	9	Copper Alloy	Housing/Shell (Unthreaded)			Crimp	Gold	Signal	Male Pins Plug	D-Sub	-55 °C	125 °C	7.5 A	Polyester Glass Filled	Natural	UL94 V-0	2					DE E	1
Amphenol Positronic M24308/4-13Z	Steel Yellow Chromate Plated Zinc	28 AWG	22 AWG	44	Copper Alloy	Housing/Shell (Unthreaded)			Crimp	Gold	Signal	Male Pins Plug	D-Sub High Density	-55 °C	125 °C	5 A	Polyester Glass Filled	Natural	UL94 V-0	3							3	B DB
Amphenol Positronic M24308/4-3F	Steel Yellow Cadmium Plated	26 AWG	20 AWG		Copper Alloy	Housing/Shell (Unthreaded)			Crimp	Gold	Signal	Male Pins Plug	D-Sub	-55 °C	125 °C	7.5 A	Polyester Glass Filled	Natural	UL94 V-0	2					B DB	3
Amphenol Positronic M24308/4-326F	Steel Yellow Cadmium Plated					Housing/Shell (Unthreaded)					Signal	Plug for Male Contacts	D-Sub	-55 °C	125 °C		Polyester Glass Filled	Natural		2		Contacts Not Included	500		B DB	3
Amphenol Positronic M24308/4-14Z	Steel Yellow Chromate Plated Zinc			62	Copper Alloy	Housing/Shell (Unthreaded)	4		Crimp	Gold	Signal	Male Pins Plug	D-Sub High Density	-55 °C	125 °C	7.5 A				3									Shielded	1000 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.67
		10	$ 25.11
		25	$ 24.02
		50	$ 23.25
		100	$ 22.47
		250	$ 21.23
	Tray	1	$ 36.10
		10	$ 31.61
		25	$ 30.25
		40	$ 29.27
		80	$ 28.29
		230	$ 26.73
Newark	Each	1	$ 43.60
		1	$ 35.37
		5	$ 32.72
		10	$ 30.07
		10	$ 38.80
		25	$ 37.55
		25	$ 28.18
		50	$ 26.83
		50	$ 35.26
		100	$ 33.17
		100	$ 25.55
		250	$ 23.96

Description

General part information

M24308/4 Series

25 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

M24308/4-3F

Deep-Dive with AI

M24308/4-3F

Deep-Dive with AI

Technical Specifications

M24308/4 Series

Pricing

Description

M24308/4 Series

Documents

Datasheet

Technical Data Sheet EN

Product Change Notice EN

Manufacturer Catalogue EN

M24308/4 Series
