M24308/4-14Z

Active

Amphenol Positronic

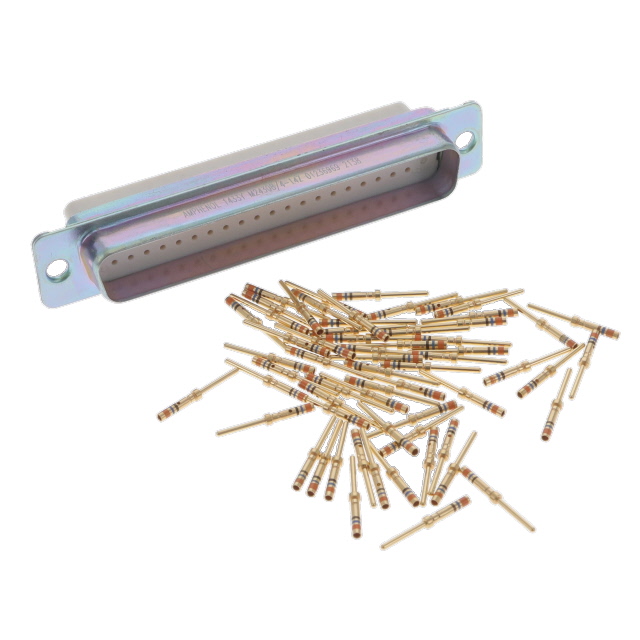

CONN D-SUB 62POS PLUG CRIMP G50

Deep-Dive with AI

Search across all available documentation for this part.

M24308/4-14Z

Active

Amphenol Positronic

CONN D-SUB 62POS PLUG CRIMP G50

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/4-14Z

Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout	4
Termination	Crimp
Voltage Rating	1000 VDC

M24308/4 Series

Part	Shell Material, Finish	Wire Gauge [Max]	Wire Gauge [Min]	Number of Positions	Contact Material	Flange Feature	Shell Size, Connector Layout	Shell Size, Connector Layout	Termination	Contact Finish	Contact Type	Connector Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Dielectric Material	Color	Material Flammability Rating	Number of Rows	Primary Material	Note	Mating Cycles	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Features	Voltage Rating
Amphenol Positronic M24308/4-12F	Steel Yellow Cadmium Plated	28 AWG	22 AWG	26	Copper Alloy	Housing/Shell (Unthreaded)	2	(DA A) High Density	Crimp	Gold	Signal	Male Pins Plug	D-Sub High Density	-55 °C	125 °C	5 A	Polyester Glass Filled	Natural	UL94 V-0	3
Amphenol Positronic M24308/4-5F	Steel Yellow Cadmium Plated	26 AWG	20 AWG	50	Copper Alloy	Housing/Shell (Unthreaded)	5		Crimp	Gold	Signal	Male Pins Plug	D-Sub	-55 °C	125 °C	7.5 A	Polyester Glass Filled	Natural	UL94 V-0	3	Metal
Amphenol Positronic M24308/4-259Z	Steel Yellow Chromate Plated Zinc			9		Housing/Shell (Unthreaded)					Signal	Plug for Male Contacts	D-Sub	-55 °C	125 °C		Diallyl Phthalate (DAP)	Black		2		Contacts Not Included	500	Free Hanging (In-Line)	DE E	1
Amphenol Positronic M24308/4-14F	Steel Yellow Cadmium Plated	28 AWG	22 AWG	62	Copper Alloy	Housing/Shell (Unthreaded)	4		Crimp	Gold	Signal	Male Pins Plug	D-Sub High Density	-55 °C	125 °C	5 A	Polyester Glass Filled	Natural	UL94 V-0	3
Amphenol Positronic M24308/4-1F	Steel Yellow Cadmium Plated	26 AWG	20 AWG	9	Copper Alloy	Housing/Shell (Unthreaded)			Crimp	Gold	Signal	Male Pins Plug	D-Sub	-55 °C	125 °C	7.5 A	Polyester Glass Filled	Natural	UL94 V-0	2					DE E	1
Amphenol Positronic M24308/4-13Z	Steel Yellow Chromate Plated Zinc	28 AWG	22 AWG	44	Copper Alloy	Housing/Shell (Unthreaded)			Crimp	Gold	Signal	Male Pins Plug	D-Sub High Density	-55 °C	125 °C	5 A	Polyester Glass Filled	Natural	UL94 V-0	3							3	B DB
Amphenol Positronic M24308/4-3F	Steel Yellow Cadmium Plated	26 AWG	20 AWG		Copper Alloy	Housing/Shell (Unthreaded)			Crimp	Gold	Signal	Male Pins Plug	D-Sub	-55 °C	125 °C	7.5 A	Polyester Glass Filled	Natural	UL94 V-0	2					B DB	3
Amphenol Positronic M24308/4-326F	Steel Yellow Cadmium Plated					Housing/Shell (Unthreaded)					Signal	Plug for Male Contacts	D-Sub	-55 °C	125 °C		Polyester Glass Filled	Natural		2		Contacts Not Included	500		B DB	3
Amphenol Positronic M24308/4-14Z	Steel Yellow Chromate Plated Zinc			62	Copper Alloy	Housing/Shell (Unthreaded)	4		Crimp	Gold	Signal	Male Pins Plug	D-Sub High Density	-55 °C	125 °C	7.5 A				3									Shielded	1000 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 48.92

Description

General part information

M24308/4 Series

62 Position D-Sub, High Density Plug, Male Pins Connector

Documents

Technical documentation and resources

No documents available
