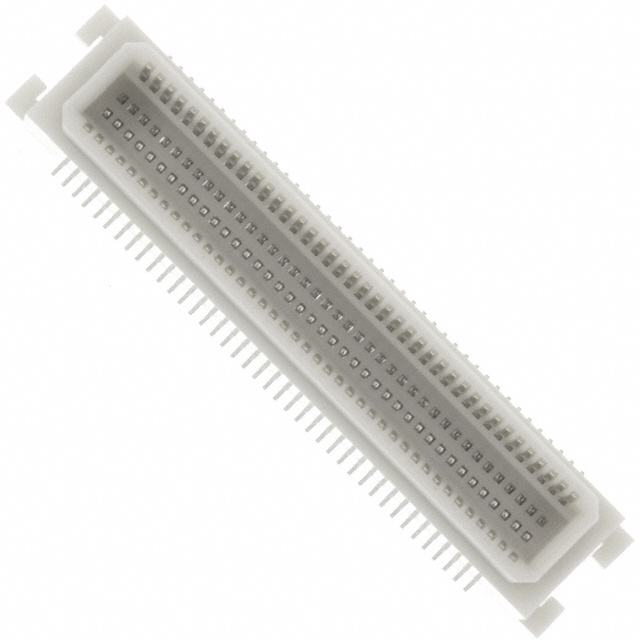

DF17(4.0)-80DP-0.5V(57)

Active

Hirose Electric USA, Inc.

CONN BOARD TO BOARD HDR 80 POS 0.5MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF17(4.0)-xDP-0.5V(57) Spec

DF17(4.0)-80DP-0.5V(57)

Active

Hirose Electric USA, Inc.

CONN BOARD TO BOARD HDR 80 POS 0.5MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

DocumentsDatasheet DF17(4.0)-xDP-0.5V(57) Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF17(4.0)-80DP-0.5V(57)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board [z]	0.248 "
Height Above Board [z]	6.3 mm
Mated Stacking Heights	7 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

DF17(4.0) Series

Part	Pitch [x]	Pitch [x]	Connector Type	Features	Height Above Board	Height Above Board	Number of Rows	Mated Stacking Heights	Contact Finish	Number of Positions	Mounting Type	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. DF17(4.0)-40DS-0.5V(51)	0.5 mm	0.02 in	Center Strip Contacts Receptacle	Board Guide Solder Retention	0.177 in	4.5 mm	2	6 mm 6.5 mm 8 mm	Gold	40	Surface Mount
Hirose Electric USA, Inc. DF17(4.0)-40DS-0.5V(67)	0.5 mm	0.02 in	Center Strip Contacts Receptacle	Board Guide Solder Retention	0.177 in	4.5 mm	2	6 mm 6.5 mm 8 mm	Gold	40	Surface Mount
Hirose Electric USA, Inc. DF17(4.0)-70DP-0.5V(57)	0.5 mm	0.02 in	Header Outer Shroud Contacts	Board Guide Solder Retention			2	7 mm 8 mm	Gold	70	Surface Mount	0.248 "	6.3 mm
Hirose Electric USA, Inc. DF17(4.0)-60DP-0.5V(68)
Hirose Electric USA, Inc. DF17(4.0)-50DS-0.5V(51)	0.5 mm	0.02 in	Center Strip Contacts Receptacle	Board Guide Solder Retention	0.177 in	4.5 mm	2	6 mm 6.5 mm 8 mm	Gold	50	Surface Mount
Hirose Electric USA, Inc. DF17(4.0)-40DP-0.5V(57)	0.5 mm	0.02 in	Header Outer Shroud Contacts	Board Guide Solder Retention			2	7 mm 8 mm	Gold	40	Surface Mount	0.248 "	6.3 mm
Hirose Electric USA, Inc. DF17(4.0)-20DS-0.5V(51)	0.5 mm	0.02 in	Center Strip Contacts Receptacle	Board Guide Solder Retention	0.177 in	4.5 mm	2	6 mm 6.5 mm 8 mm	Gold	20	Surface Mount
Hirose Electric USA, Inc. DF17(4.0)-40DP-0.5V(51)	0.5 mm	0.02 in	Header Outer Shroud Contacts	Board Guide Solder Retention			2	7 mm 8 mm	Gold	40	Surface Mount	0.248 "	6.3 mm
Hirose Electric USA, Inc. DF17(4.0)-80DS-0.5V(51)	0.5 mm	0.02 in	Center Strip Contacts Receptacle	Board Guide Solder Retention	0.177 in	4.5 mm	2	6 mm 6.5 mm 8 mm	Gold	80	Surface Mount
Hirose Electric USA, Inc. DF17(4.0)-80DP-0.5V(57)	0.5 mm	0.02 in	Header Outer Shroud Contacts	Board Guide Solder Retention			2	7 mm 8 mm	Gold	80	Surface Mount	0.248 "	6.3 mm
