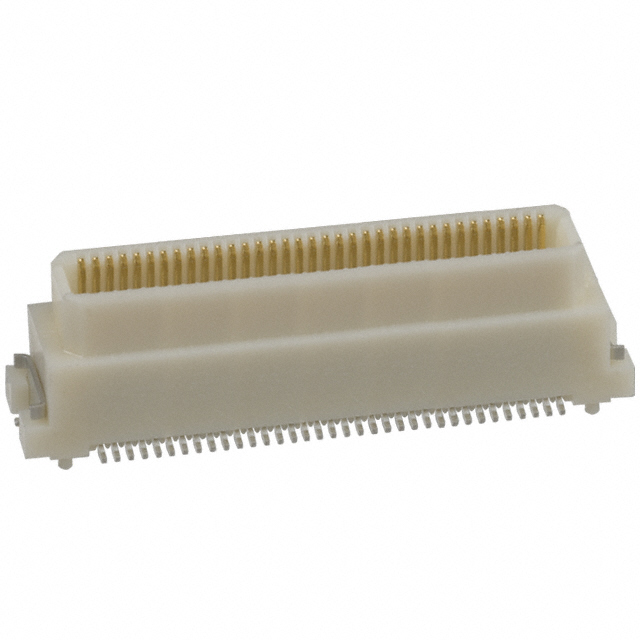

DF17(4.0)-70DP-0.5V(57)
ActiveHirose Electric USA, Inc.
CONN HDR 70POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DF17(4.0)-70DP-0.5V(57)
ActiveHirose Electric USA, Inc.
CONN HDR 70POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF17(4.0)-70DP-0.5V(57) |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Features | Solder Retention, Board Guide |
| Height Above Board [z] | 0.248 " |
| Height Above Board [z] | 6.3 mm |
| Mated Stacking Heights | 7 mm, 8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 70 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
DF17(4.0) Series
| Part | Pitch [x] | Pitch [x] | Connector Type | Features | Height Above Board | Height Above Board | Number of Rows | Mated Stacking Heights | Contact Finish | Number of Positions | Mounting Type | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 0.5 mm | 0.02 in | Center Strip Contacts Receptacle | Board Guide Solder Retention | 0.177 in | 4.5 mm | 2 | 6 mm 6.5 mm 8 mm | Gold | 40 | Surface Mount | ||
Hirose Electric USA, Inc. | 0.5 mm | 0.02 in | Center Strip Contacts Receptacle | Board Guide Solder Retention | 0.177 in | 4.5 mm | 2 | 6 mm 6.5 mm 8 mm | Gold | 40 | Surface Mount | ||
Hirose Electric USA, Inc. | 0.5 mm | 0.02 in | Header Outer Shroud Contacts | Board Guide Solder Retention | 2 | 7 mm 8 mm | Gold | 70 | Surface Mount | 0.248 " | 6.3 mm | ||
Hirose Electric USA, Inc. | |||||||||||||
Hirose Electric USA, Inc. | 0.5 mm | 0.02 in | Center Strip Contacts Receptacle | Board Guide Solder Retention | 0.177 in | 4.5 mm | 2 | 6 mm 6.5 mm 8 mm | Gold | 50 | Surface Mount | ||
Hirose Electric USA, Inc. | 0.5 mm | 0.02 in | Header Outer Shroud Contacts | Board Guide Solder Retention | 2 | 7 mm 8 mm | Gold | 40 | Surface Mount | 0.248 " | 6.3 mm | ||
Hirose Electric USA, Inc. | 0.5 mm | 0.02 in | Center Strip Contacts Receptacle | Board Guide Solder Retention | 0.177 in | 4.5 mm | 2 | 6 mm 6.5 mm 8 mm | Gold | 20 | Surface Mount | ||
Hirose Electric USA, Inc. | 0.5 mm | 0.02 in | Header Outer Shroud Contacts | Board Guide Solder Retention | 2 | 7 mm 8 mm | Gold | 40 | Surface Mount | 0.248 " | 6.3 mm | ||
Hirose Electric USA, Inc. | 0.5 mm | 0.02 in | Center Strip Contacts Receptacle | Board Guide Solder Retention | 0.177 in | 4.5 mm | 2 | 6 mm 6.5 mm 8 mm | Gold | 80 | Surface Mount | ||
Hirose Electric USA, Inc. | 0.5 mm | 0.02 in | Header Outer Shroud Contacts | Board Guide Solder Retention | 2 | 7 mm 8 mm | Gold | 80 | Surface Mount | 0.248 " | 6.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.04 | |
| 10 | $ 3.43 | |||
| 100 | $ 2.92 | |||
| 500 | $ 2.66 | |||
| Digi-Reel® | 1 | $ 4.04 | ||
| 10 | $ 3.43 | |||
| 100 | $ 2.92 | |||
| 500 | $ 2.66 | |||
| Tape & Reel (TR) | 1000 | $ 2.17 | ||
| 2000 | $ 2.33 | |||
| 3000 | $ 2.24 | |||
Description
General part information
DF17(4.0) Series
70 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
