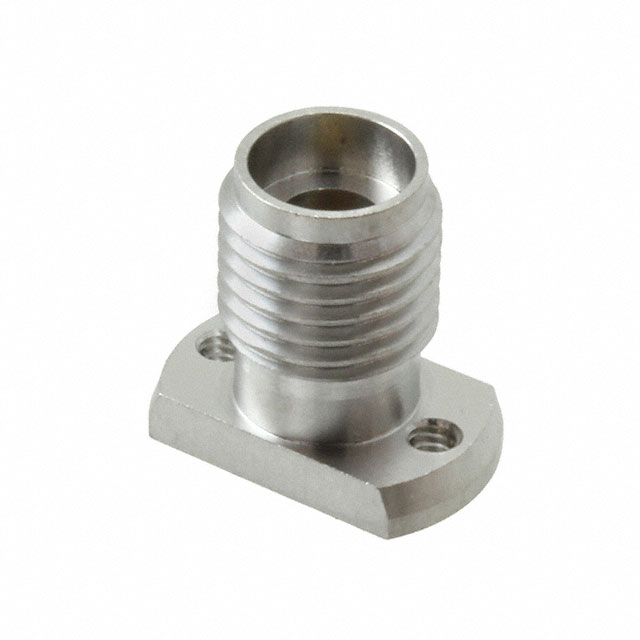

HK-R-SR2-1

Active

Hirose Electric USA, Inc.

CONN 2.92MM RCPT STR 50 OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 2.92mm Series Catalog

HK-R-SR2-1

Active

Hirose Electric USA, Inc.

CONN 2.92MM RCPT STR 50 OHM SMD

Deep-Dive with AI

DocumentsDatasheet 2.92mm Series Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HK-R-SR2-1

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Receptacle, Female Socket
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Screw

HK-R-SR2 Series

Part	Body Finish	Contact Termination	Features	Impedance	Mounting Type	Center Contact Material	Mating Cycles	Connector Style	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Connector Type	Center Contact Plating	Body Material	Shield Termination	Frequency - Max [Max]	Dielectric Material	Housing Color	Includes
Hirose Electric USA, Inc. HK-R-SR2-S	Gold	Compression	Mounting Hardware	50 Ohms	Surface Mount	Beryllium Copper	500	2.92 mm	1	105 ░C	-55 °C	Flange	Female Socket Receptacle	Gold	Stainless Steel	Screw	40 GHz	Polytetrafluoroethylene (PTFE)	Gold
Hirose Electric USA, Inc. HK-R-SR2-1		Compression		50 Ohms	Surface Mount	Beryllium Copper	500	2.92 mm	1	105 ░C	-55 °C	Flange	Female Socket Receptacle	Gold	Stainless Steel	Screw	40 GHz	Polytetrafluoroethylene (PTFE)	Silver
Hirose Electric USA, Inc. HK-R-SR2-SA(15)	Nickel	Compression	Mounting Hardware	50 Ohms	Surface Mount	Beryllium Copper	500	2.92 mm	1	105 ░C	-55 °C	Flange	Female Socket Receptacle	Gold	Brass	Screw	43.5 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Silver
Hirose Electric USA, Inc. HK-R-SR2(12)
Hirose Electric USA, Inc. HK-R-SR2-S(12)	Gold	Compression	Mounting Hardware	50 Ohms	Surface Mount	Beryllium Copper	500	2.92 mm	1	105 ░C	-55 °C	Flange	Female Socket Receptacle	Gold	Stainless Steel	Screw	40 GHz	Polytetrafluoroethylene (PTFE)	Gold
Hirose Electric USA, Inc. HK-R-SR2(11)
Hirose Electric USA, Inc. HK-R-SR2-1(22)		Compression		50 Ohms	Surface Mount	Beryllium Copper	500	2.92 mm	1	125 °C	-55 °C	Flange	Female Socket Receptacle	Gold	Stainless Steel	Screw	40 GHz	Polytetrafluoroethylene (PTFE)	Silver
Hirose Electric USA, Inc. HK-R-SR2-1(11)		Compression	Mounting Hardware	50 Ohms	Surface Mount	Beryllium Copper	500	2.92 mm	1	105 ░C	-55 °C	Flange	Female Socket Receptacle	Gold	Stainless Steel	Screw	40 GHz	Polytetrafluoroethylene (PTFE)	Silver	1 Connector 2 Screws 2 Spring Washers

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.17
		10	$ 26.39
		25	$ 23.92
		50	$ 22.25
		100	$ 20.74
		250	$ 18.96
		500	$ 17.77

Description

General part information

HK-R-SR2 Series

2.92mm Connector Receptacle, Female Socket 50 Ohms Surface Mount Compression

Documents

Technical documentation and resources

Datasheet

2.92mm Series Catalog

Datasheet
