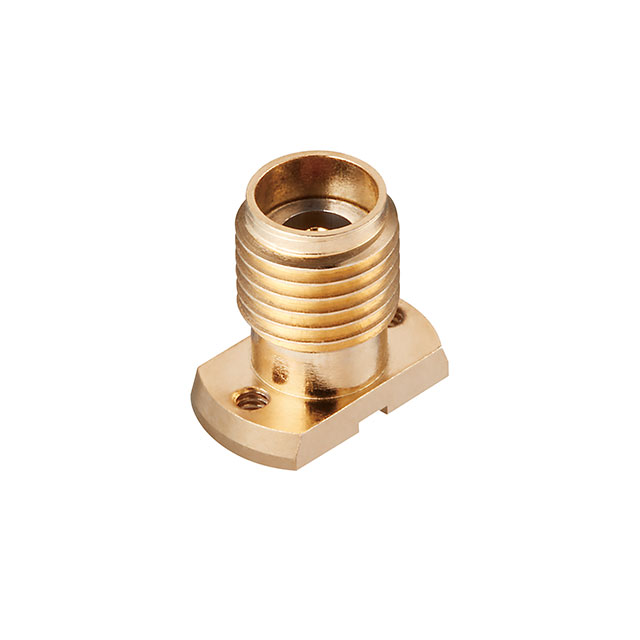

HK-R-SR2-S

Active

Hirose Electric USA, Inc.

CONN 2.92MM RCPT 50OHM COMPRESS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HK-R-SR2-S RF Report

HK-R-SR2-S

Active

Hirose Electric USA, Inc.

CONN 2.92MM RCPT 50OHM COMPRESS

Deep-Dive with AI

DocumentsDatasheet HK-R-SR2-S RF Report

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HK-R-SR2-S

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Receptacle, Female Socket
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Screw

HK-R-SR2 Series

Part	Body Finish	Contact Termination	Features	Impedance	Mounting Type	Center Contact Material	Mating Cycles	Connector Style	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Connector Type	Center Contact Plating	Body Material	Shield Termination	Frequency - Max [Max]	Dielectric Material	Housing Color	Includes
Hirose Electric USA, Inc. HK-R-SR2-S	Gold	Compression	Mounting Hardware	50 Ohms	Surface Mount	Beryllium Copper	500	2.92 mm	1	105 ░C	-55 °C	Flange	Female Socket Receptacle	Gold	Stainless Steel	Screw	40 GHz	Polytetrafluoroethylene (PTFE)	Gold
Hirose Electric USA, Inc. HK-R-SR2-1		Compression		50 Ohms	Surface Mount	Beryllium Copper	500	2.92 mm	1	105 ░C	-55 °C	Flange	Female Socket Receptacle	Gold	Stainless Steel	Screw	40 GHz	Polytetrafluoroethylene (PTFE)	Silver
Hirose Electric USA, Inc. HK-R-SR2-SA(15)	Nickel	Compression	Mounting Hardware	50 Ohms	Surface Mount	Beryllium Copper	500	2.92 mm	1	105 ░C	-55 °C	Flange	Female Socket Receptacle	Gold	Brass	Screw	43.5 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Silver
Hirose Electric USA, Inc. HK-R-SR2(12)
Hirose Electric USA, Inc. HK-R-SR2-S(12)	Gold	Compression	Mounting Hardware	50 Ohms	Surface Mount	Beryllium Copper	500	2.92 mm	1	105 ░C	-55 °C	Flange	Female Socket Receptacle	Gold	Stainless Steel	Screw	40 GHz	Polytetrafluoroethylene (PTFE)	Gold
Hirose Electric USA, Inc. HK-R-SR2(11)
Hirose Electric USA, Inc. HK-R-SR2-1(22)		Compression		50 Ohms	Surface Mount	Beryllium Copper	500	2.92 mm	1	125 °C	-55 °C	Flange	Female Socket Receptacle	Gold	Stainless Steel	Screw	40 GHz	Polytetrafluoroethylene (PTFE)	Silver
Hirose Electric USA, Inc. HK-R-SR2-1(11)		Compression	Mounting Hardware	50 Ohms	Surface Mount	Beryllium Copper	500	2.92 mm	1	105 ░C	-55 °C	Flange	Female Socket Receptacle	Gold	Stainless Steel	Screw	40 GHz	Polytetrafluoroethylene (PTFE)	Silver	1 Connector 2 Screws 2 Spring Washers

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 36.81
		20	$ 32.23
		40	$ 29.85
		100	$ 28.85
		260	$ 27.26
