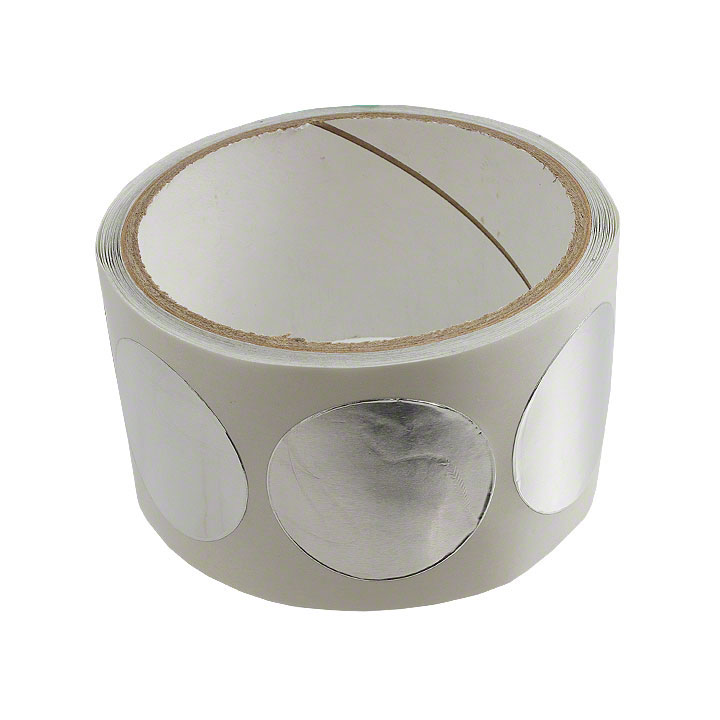

3M 1170 CIRCLE-1.5"-100

Active

3M (TC)

RF EMI SHLDING SHEET 1.5" 100PK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3M 1170 CIRCLE-1.5"-100

Active

3M (TC)

RF EMI SHLDING SHEET 1.5" 100PK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3M 1170 CIRCLE-1.5"-100

Adhesive	Conductive, Single Sided
Material	Aluminum Foil
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Shape	Circular
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall	0.003 "
Thickness - Overall	0.08 mm
Type	Shielding Sheet
Width	38.1 mm
Width [x]	1.5 in

1170 Series

Part	Shelf Life	Type	Material	Width [x]	Width [x]	Thickness - Overall	Thickness - Overall	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Adhesive	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shape	Length	Length	Width [y]	Width [y]	Width	Width
3M (TC) 1170 2.5"X60YD	60 Months	Shielding Tape	Aluminum Foil	63.5 mm	2.5 in	0.003 "	0.08 mm	-40 °C	130 °C	180 ft	55 m	Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Roll
3M (TC) 1170CIR-2(100)	60 Months	Shielding Sheet	Aluminum Foil	50.8 mm	2 in	0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Circular
3M (TC) 1170 6"X18YD	60 Months	Shielding Tape	Aluminum Foil			0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Roll	16.5 m	54 ft	152.4 mm	6 in
3M (TC) 1170 7.7"X10"	60 Months	Shielding Sheet	Aluminum Foil			0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Square	254 mm	10 in			7.7 in	195 mm
3M (TC) 3M 1170 CIRCLE-1.5"-100	60 Months	Shielding Sheet	Aluminum Foil		1.5 in	0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Circular						38.1 mm
3M (TC) 1170SQ-1.5(100)	60 Months	Shielding Sheet	Aluminum Foil		1.5 in	0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Square	38.1 mm	1.5 "				38.1 mm
3M (TC) 1170-5/8"X18YD	60 Months	Shielding Tape	Aluminum Foil			0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Roll	16.5 m	54 ft	16 mm	0.63 "
3M (TC) 1170-3/8"X18YD	60 Months	Shielding Tape	Aluminum Foil			0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Roll	16.5 m	54 ft	9.65 mm	0.38 in
3M (TC) 1170 TAPE	60 Months	Shielding Sheet	Aluminum Foil	584 mm	22.992 in	0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Roll	16.5 m	54 ft
3M (TC) 1170 4"X18YD	60 Months	Shielding Tape	Aluminum Foil	101.6 mm	4 "	0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Roll	16.5 m	54 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 90.91
		100	$ 78.01

Description

General part information

1170 Series

RF EMI Shielding Sheet 1170 Aluminum Foil Conductive, Single Sided 1.500" (38.10mm) X X 0.003" (0.08mm)
