1170 7.7"X10"

Active

3M (TC)

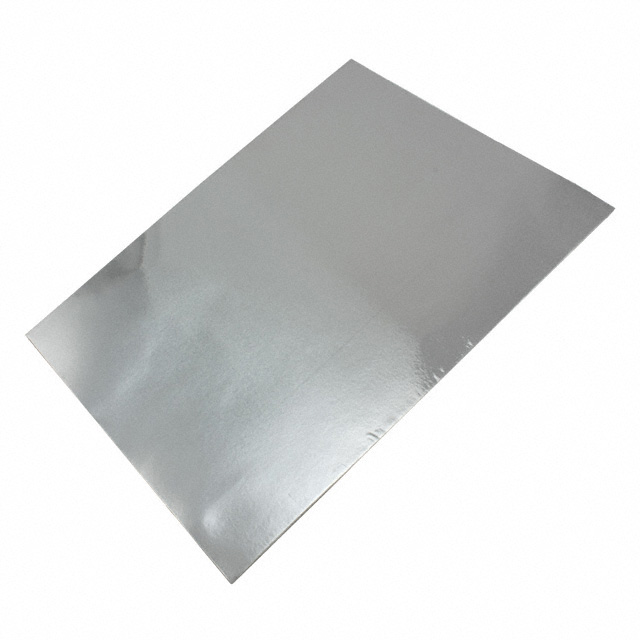

RF EMI SHIELDING SHEET 10"X7.7"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1170 7.7"X10"

Active

3M (TC)

RF EMI SHIELDING SHEET 10"X7.7"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1170 7.7"X10"

Adhesive	Conductive, Single Sided
Length	10 in
Length	254 mm
Material	Aluminum Foil
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Shape	Square
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall	0.003 "
Thickness - Overall	0.08 mm
Type	Shielding Sheet
Width	7.7 in
Width	195 mm

1170 Series

Part	Shelf Life	Type	Material	Width [x]	Width [x]	Thickness - Overall	Thickness - Overall	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Adhesive	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shape	Length	Length	Width [y]	Width [y]	Width	Width
3M (TC) 1170 2.5"X60YD	60 Months	Shielding Tape	Aluminum Foil	63.5 mm	2.5 in	0.003 "	0.08 mm	-40 °C	130 °C	180 ft	55 m	Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Roll
3M (TC) 1170CIR-2(100)	60 Months	Shielding Sheet	Aluminum Foil	50.8 mm	2 in	0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Circular
3M (TC) 1170 6"X18YD	60 Months	Shielding Tape	Aluminum Foil			0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Roll	16.5 m	54 ft	152.4 mm	6 in
3M (TC) 1170 7.7"X10"	60 Months	Shielding Sheet	Aluminum Foil			0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Square	254 mm	10 in			7.7 in	195 mm
3M (TC) 3M 1170 CIRCLE-1.5"-100	60 Months	Shielding Sheet	Aluminum Foil		1.5 in	0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Circular						38.1 mm
3M (TC) 1170SQ-1.5(100)	60 Months	Shielding Sheet	Aluminum Foil		1.5 in	0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Square	38.1 mm	1.5 "				38.1 mm
3M (TC) 1170-5/8"X18YD	60 Months	Shielding Tape	Aluminum Foil			0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Roll	16.5 m	54 ft	16 mm	0.63 "
3M (TC) 1170-3/8"X18YD	60 Months	Shielding Tape	Aluminum Foil			0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Roll	16.5 m	54 ft	9.65 mm	0.38 in
3M (TC) 1170 TAPE	60 Months	Shielding Sheet	Aluminum Foil	584 mm	22.992 in	0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Roll	16.5 m	54 ft
3M (TC) 1170 4"X18YD	60 Months	Shielding Tape	Aluminum Foil	101.6 mm	4 "	0.003 "	0.08 mm	-40 °C	130 °C			Conductive Single Sided	Date of Manufacture	27 °C 80 °F	10 °C	Roll	16.5 m	54 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.80
		10	$ 8.29
		30	$ 7.23
		100	$ 6.37
		250	$ 5.88
		500	$ 5.59
		1000	$ 5.34

Description

General part information

1170 Series

RF EMI Shielding Sheet 1170 Aluminum Foil Conductive, Single Sided 7.700" (195.00mm) X 10.000" (254.00mm) X 0.003" (0.08mm)
