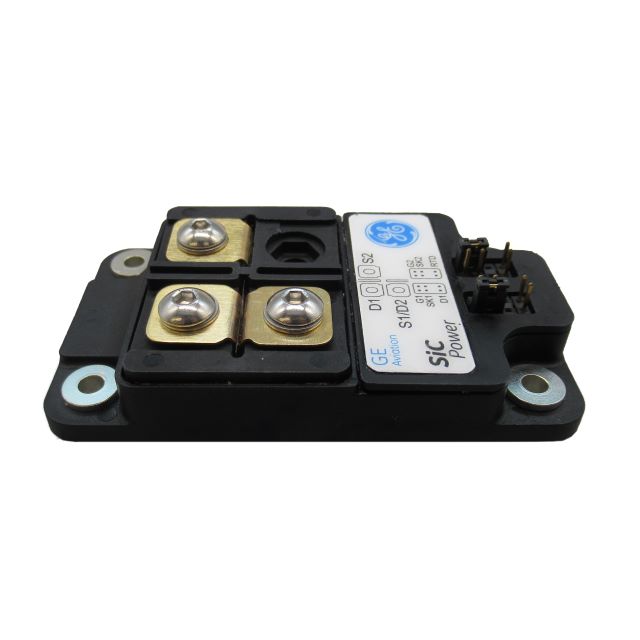

GE12047CCA3

Active

GE Aerospace

SIC 2N-CH 1200V 475A MODULE

Search across all available documentation for this part.

Active

GE Aerospace

SIC 2N-CH 1200V 475A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	GE12047CCA3

Configuration	2 N-Channel (Half Bridge)
Current - Continuous Drain (Id) @ 25°C	475 A
Drain to Source Voltage (Vdss)	1200 V
Drain to Source Voltage (Vdss)	1.2 kV
Gate Charge (Qg) (Max) @ Vgs	1248 nC
Input Capacitance (Ciss) (Max) @ Vds	29300 pF
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	Module
Power - Max [Max]	1250 W
Rds On (Max) @ Id, Vgs	4.4 mOhm
Supplier Device Package	Module
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	4.5 V

Part	Package / Case	Technology	Power - Max [Max]	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Supplier Device Package	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Drain to Source Voltage (Vdss)
GE Aerospace GE12047CCA3	Module	Silicon Carbide (SiC)	1250 W	1248 nC	29300 pF	475 A	Chassis Mount	Module	2 N-Channel (Half Bridge)	150 °C	-55 °C	4.4 mOhm	4.5 V	1200 V	1.2 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 1200V (1.2kV) 475A 1250W Chassis Mount Module
