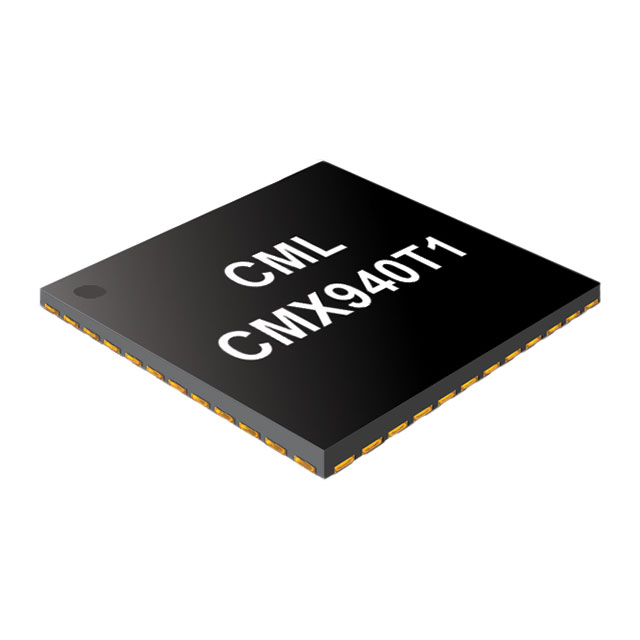

CMX940T1

Active

CML Micro

RF SYNTHESIZER

Search across all available documentation for this part.

Active

CML Micro

RF SYNTHESIZER

Technical Specifications

Parameters and characteristics for this part

Specification	CMX940T1

Frequency [Max]	2.04 GHz
Frequency [Min]	49 MHz
Function	Fractional, Integer-N Synthesizer/ VCO
Mounting Type	Surface Mount
Package / Case	48-WFLGA Exposed Pad
RF Type	General Purpose
Secondary Attributes [Max]	3.6 V
Secondary Attributes [Min]	3 V
Supplier Device Package	48-LGA (7x7)

Part	Package / Case	Frequency [Max]	Frequency [Min]	Supplier Device Package	Function	RF Type	Mounting Type	Secondary Attributes [Min]	Secondary Attributes [Max]	Supplied Contents	For Use With/Related Products	Type
CML Micro CMX940T1	48-WFLGA Exposed Pad	2.04 GHz	49 MHz	48-LGA (7x7)	Fractional Integer-N Synthesizer/ VCO	General Purpose	Surface Mount	3 V	3.6 V
CML Micro CMX940T1-TR1K	48-WFLGA Exposed Pad	2.04 GHz	49 MHz	48-LGA (7x7)	Fractional Integer-N Synthesizer/ VCO	General Purpose	Surface Mount	3 V	3.6 V
CML Micro EV9400		2.04 GHz	49 MHz							Board(s)	CMX940	Frequency Synthesizer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF IC Fractional, Integer-N Synthesizer/ VCO General Purpose 49MHz ~ 2.04GHz 3V ~ 3.6V Supply 48-LGA (7x7)
